Rear Door: Components

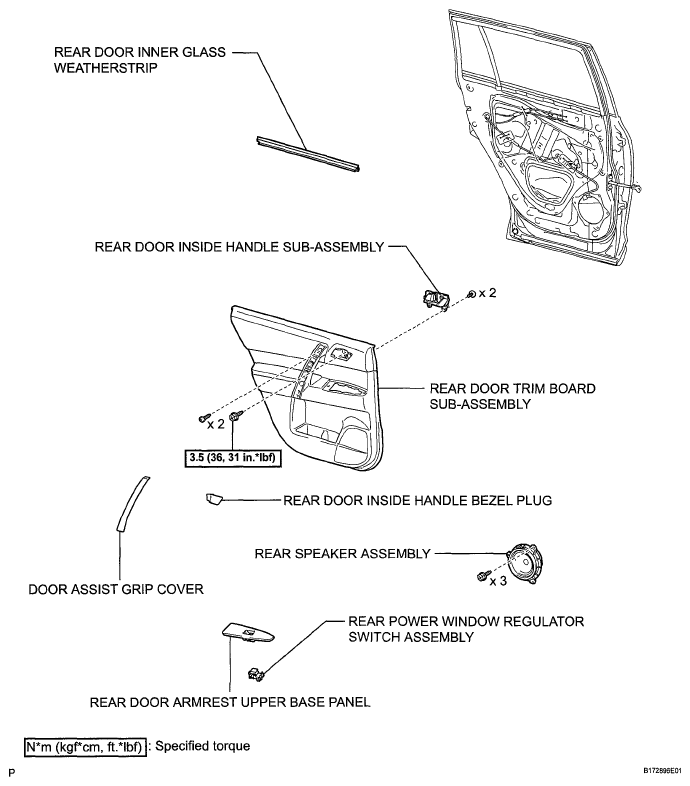

Fig 1: Identifying Rear Door Replacement Components With Torque Specifications (1 Of 4)
G05422187Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

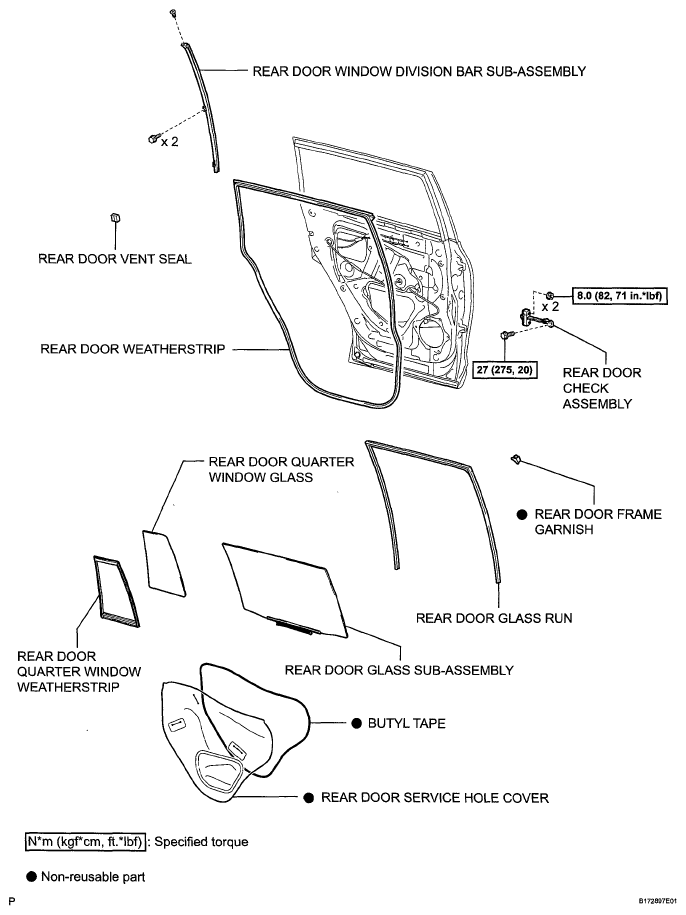

Fig 2: Identifying Rear Door Replacement Components With Torque Specifications (2 Of 4)
G05422188Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

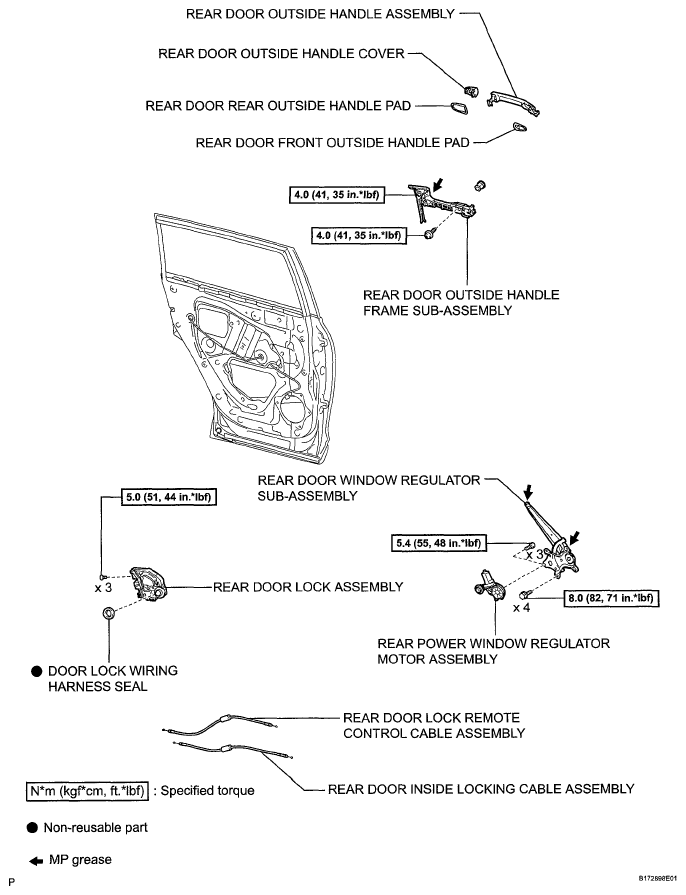

Fig 3: Identifying Rear Door Replacement Components With Torque Specifications (3 Of 4)
G05422189Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

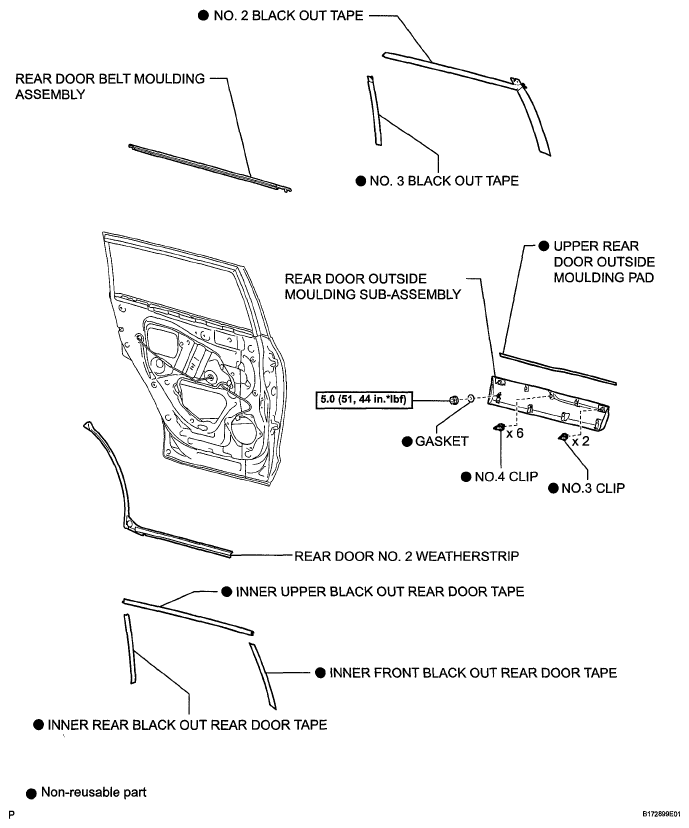

Fig 4: Identifying Rear Door Replacement Components With Torque Specifications (4 Of 4)
G05422190Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
