Home >> Toyota >> 2008 >> Highlander Base, FWD >> Repair and Diagnosis >> Body & Frame >> Exterior Body Panels >> (Door / Hatch) (Except Hybrid) >> Power Back Door Warning Buzzer >> Components

Power Back Door Warning Buzzer: Components

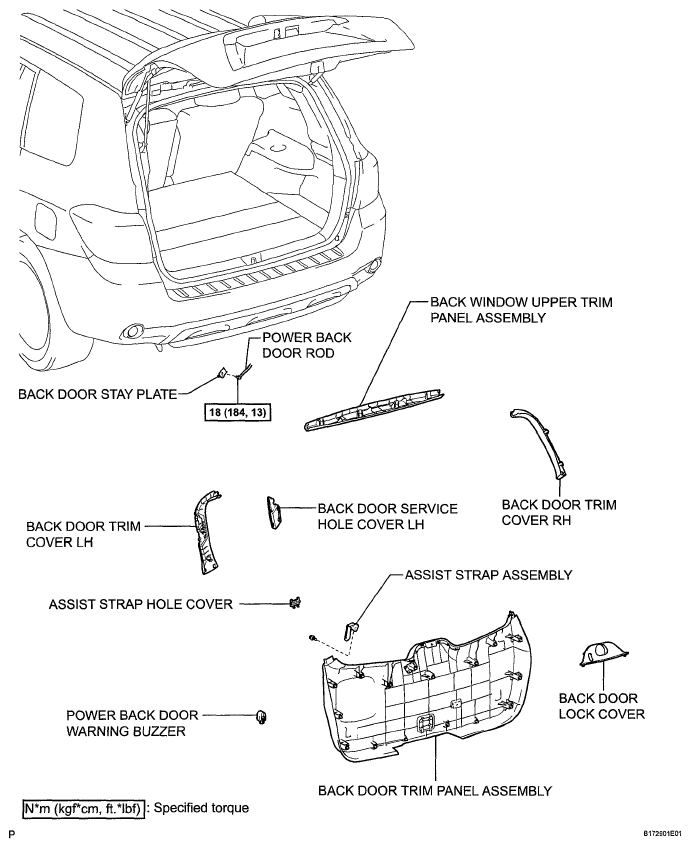

Fig 1: Power Back Door Warning Buzzer Replacement Components With Torque Specifications

G05422346

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
