Power Back Door Touch Sensor: Components

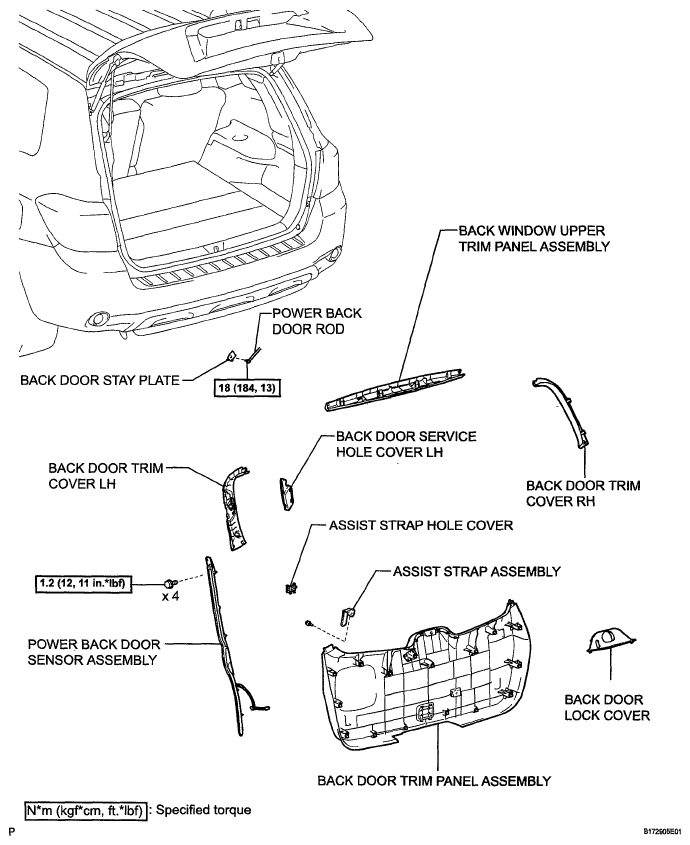

Fig 1: Power Back Door Touch Sensor Replacement Components With Torque Specifications

G05422332

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
