On-Vehicle Inspection

  1. INSPECT HOOD SUB-ASSEMBLY
    1. Check that the clearance measurements of areas A through D are within each standard range.

      Standard clearance

      MEASUREMENT TABLE

      Area Measurement
      A 6.2 to 10.2 mm (0.244 to 0.402 in.)
      B 5.9 to 9.9 mm (0.232 to 0.390 in.)
      C 2.5 to 5.5 mm (0.098 to 0.217 in.)
      D -1.5 to 1.5 mm (-0.059 to 0.059 in.)

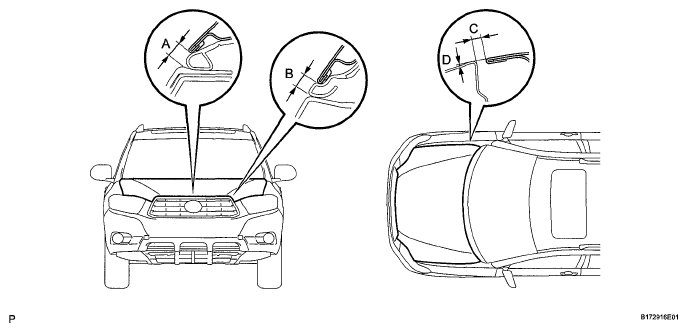

      Fig 1: Identifying Hood Sub-Assembly Clearance
      G05422052Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
