Home >> Toyota >> 2008 >> Highlander Base, FWD >> Repair and Diagnosis >> Body & Frame >> Exterior Body Panels >> (Door / Hatch) (Except Hybrid) >> Hood >> Components

(Door / Hatch) (Except Hybrid): Hood: Components

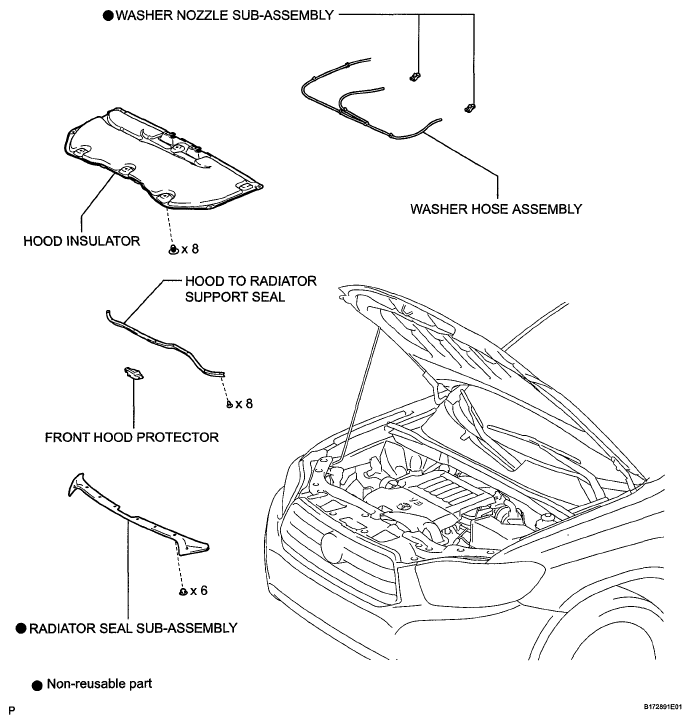

Fig 1: Identifying Hood Components

G05422051

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
