Hood Lock Control Cable Assembly: Components

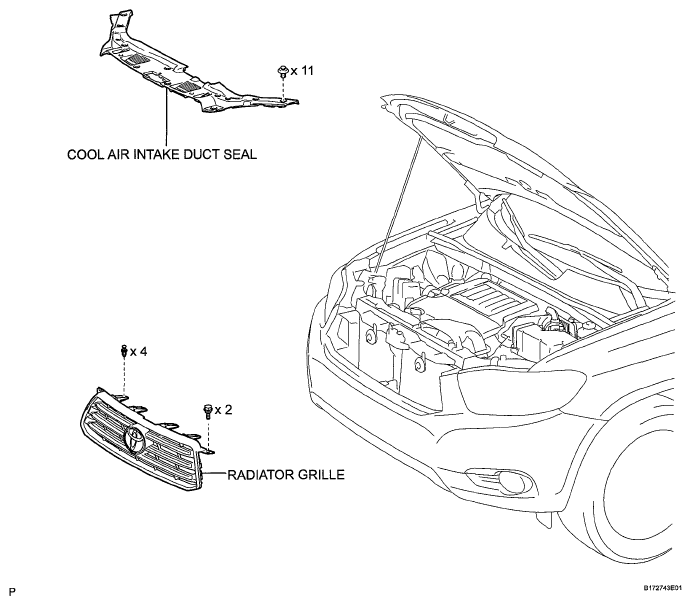

Fig 1: Identifying Hood Lock Control Cable Assembly Replacement Components (1 Of 2)
G05422069Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

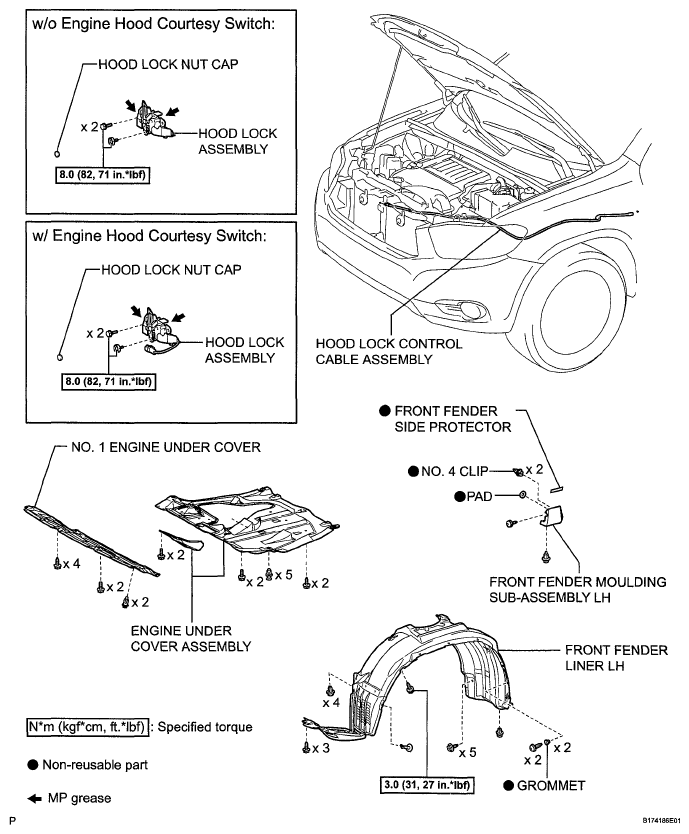

Fig 2: Identifying Hood Lock Control Cable Assembly Replacement Components (2 Of 2) With Torque Specifications
G05422070Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
