Front Door: Components

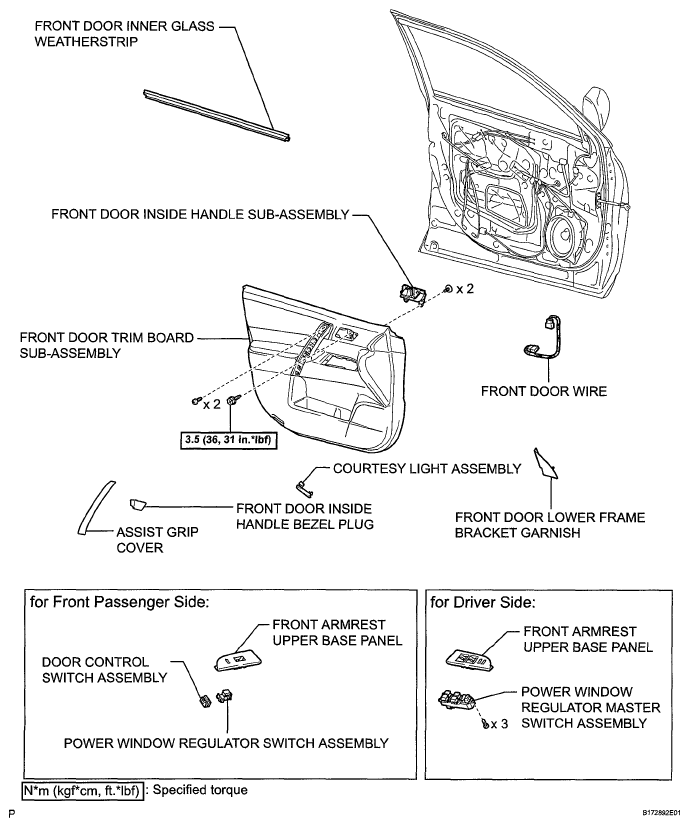

Fig 1: Identifying Front Door Replacement Components With Torque Specifications (1 Of 4)
G05422091Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

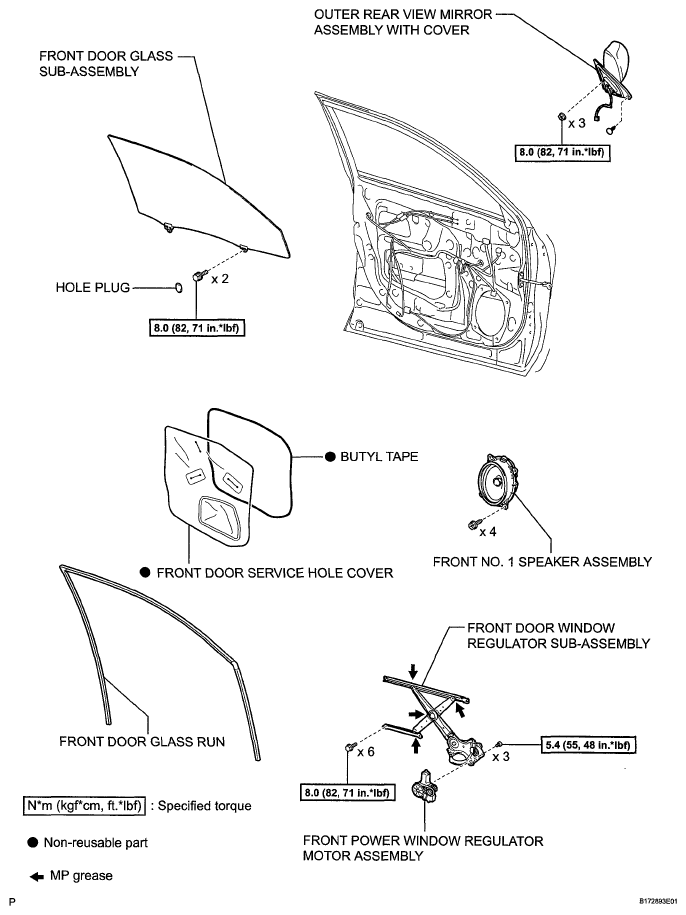

Fig 2: Identifying Front Door Replacement Components With Torque Specifications (2 Of 4)
G05422092Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

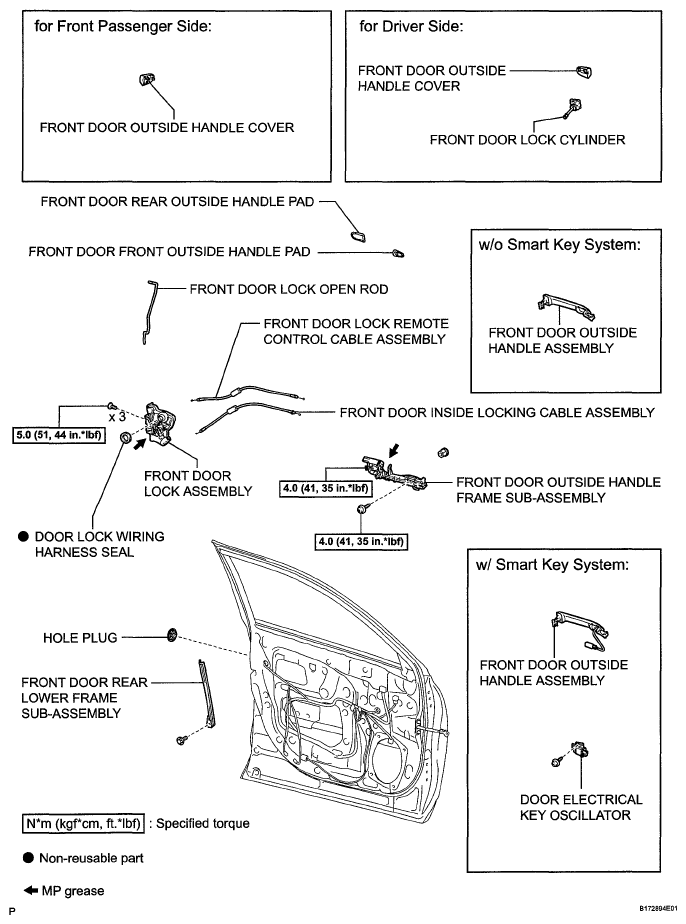

Fig 3: Identifying Front Door Replacement Components With Torque Specifications (3 Of 4)
G05422093Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

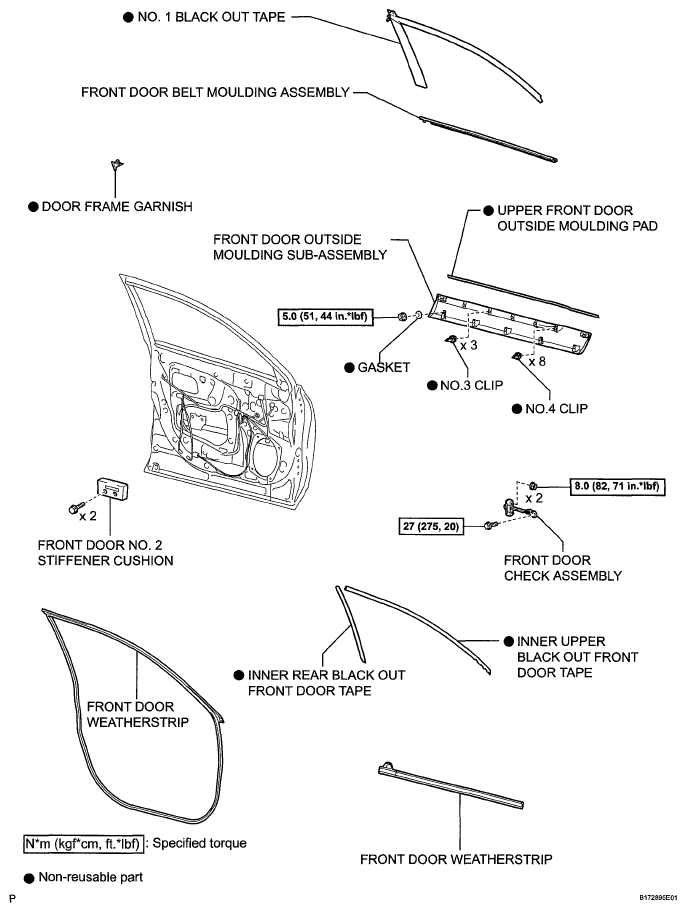

Fig 4: Identifying Front Door Replacement Components With Torque Specifications (4 Of 4)
G05422094Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
