On-Vehicle Inspection
- INSPECT BACK DOOR PANEL SUB-ASSEMBLY

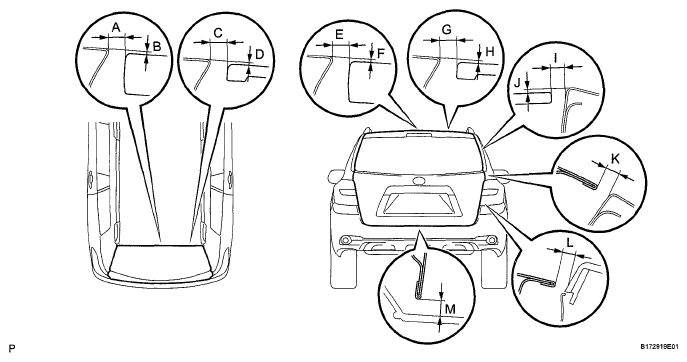

- Check that the clearance measurements of areas A through M are within each standard range.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Standard clearance
MEASUREMENT TABLEArea Measurement A 7.8 to 11.8 mm (0.307 to 0.465 in.) B -3.0 to 0.5 mm (-0.118 to 0.020 in.) C 7.8 to 11.8 mm (0.307 to 0.465 in.) D -3.0 to 0.5 mm (-0.118 to 0.020 in.) E 7.8 to 11.8 mm (0.307 to 0.465 in.) F -3.0 to 0.5 mm (-0.118 to 0.020 in.) G 7.8 to 11.8 mm (0.307 to 0.465 in.) H -3.0 to 0.5 mm (-0.118 to 0.020 in.) I 4.0 to 8.0 mm (0.158 to 0.315 in.) J (for Glass Hatch Type:) 2.0 to 3.5 mm (0.079 to 0.138 in.) J (for Fixed Glass Type:) 2.5 to 3.0 mm (0.098 to 0.118 in.) K (Height is 1930 mm (75.984 in.) or more:) 4.0 to 7.0 mm (0.158 to 0.276 in.) K (Height is 1930 mm (75.984 in.) below:) 3.5 to 6.5 mm (0.138 to 0.256 in.) L 4.0 to 8.0 mm (0.158 to 0.315 in.) M 4.5 to 8.5 mm (0.177 to 0.335 in.)
- Check that the clearance measurements of areas A through M are within each standard range.
