Back Door: Components

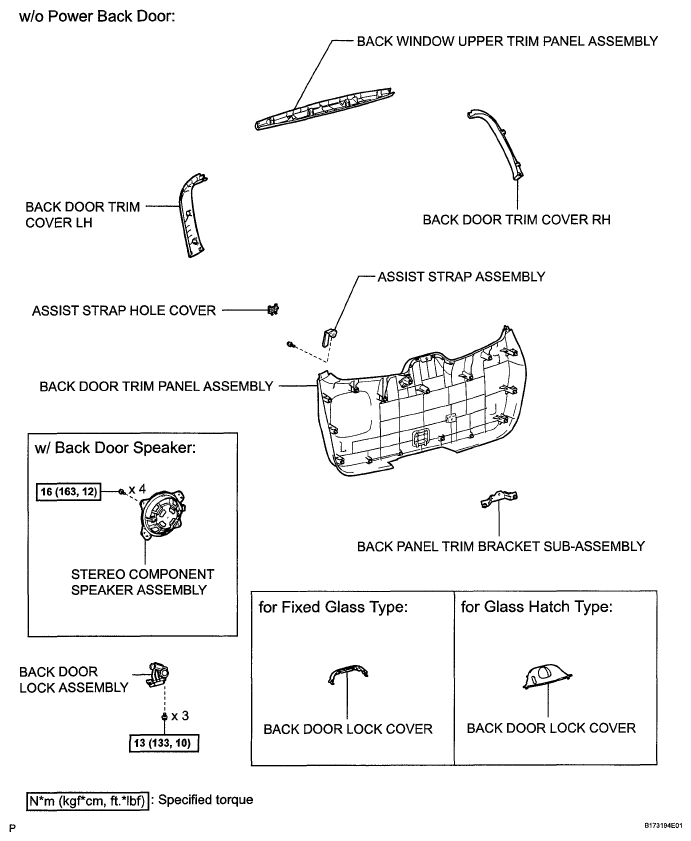

Fig 1: Identifying Back Door Replacement Components With Torque Specifications (1 Of 5)
G05422262Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

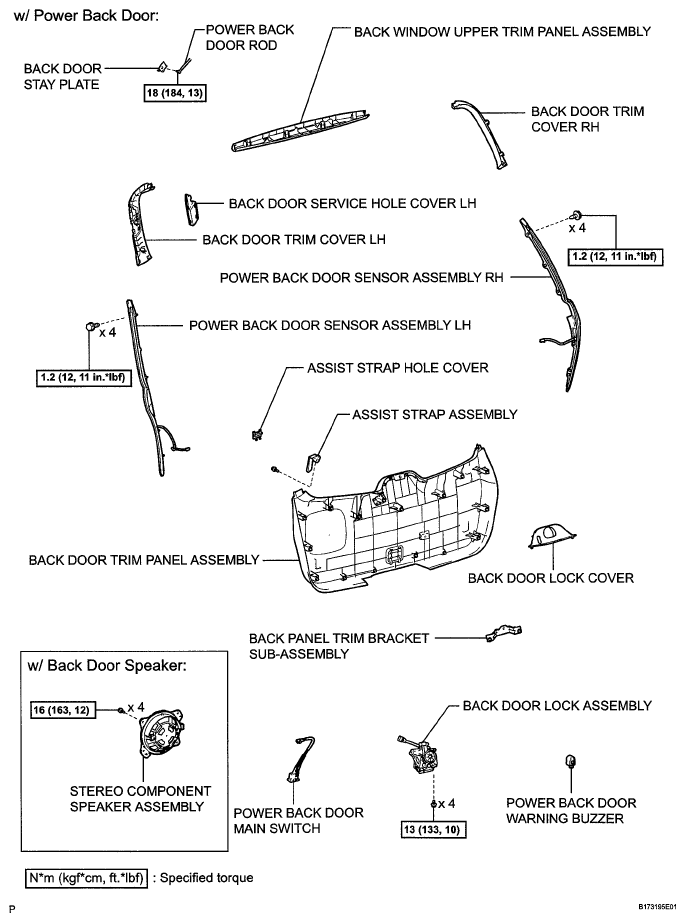

Fig 2: Identifying Back Door Replacement Components With Torque Specifications (2 Of 5)
G05422263Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

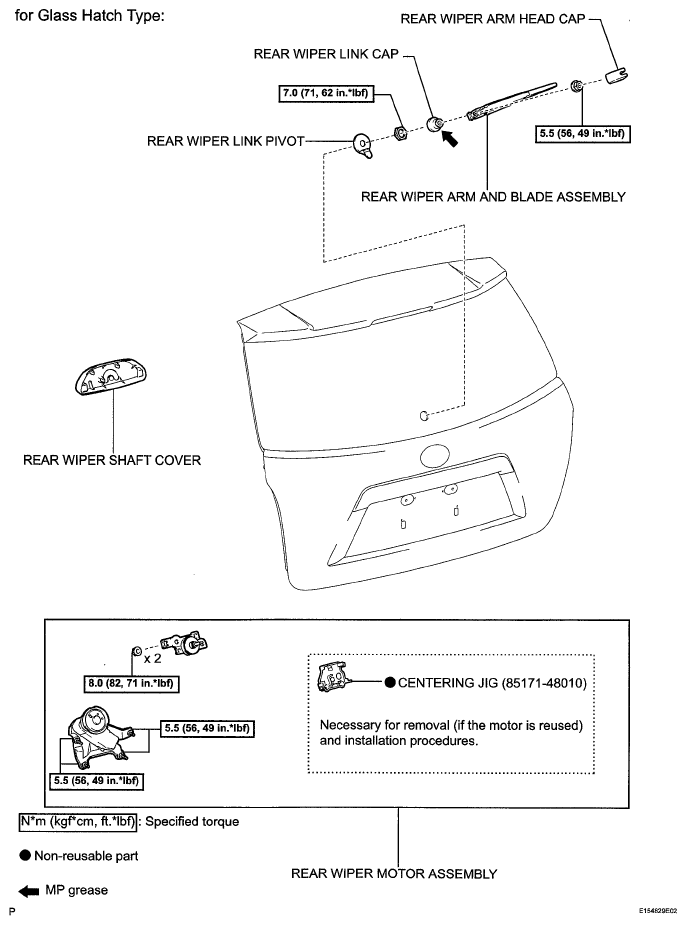

Fig 3: Identifying Back Door Replacement Components With Torque Specifications (3 Of 5)
G05419844Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

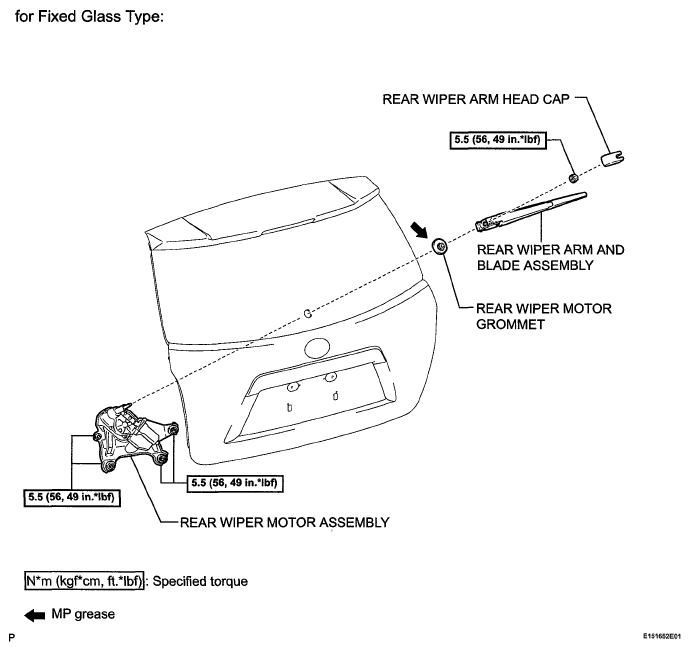

Fig 4: Identifying Back Door Replacement Components With Torque Specifications (4 Of 5)
G05422265Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

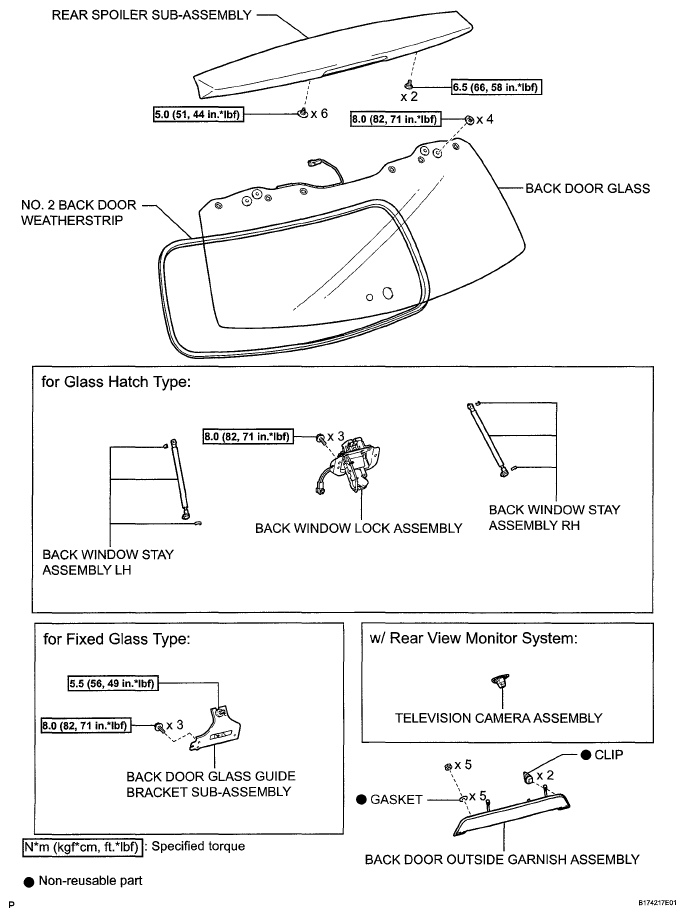

Fig 5: Identifying Back Door Replacement Components With Torque Specifications (5 Of 5)
G05422266Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
