Back Door Support: Components

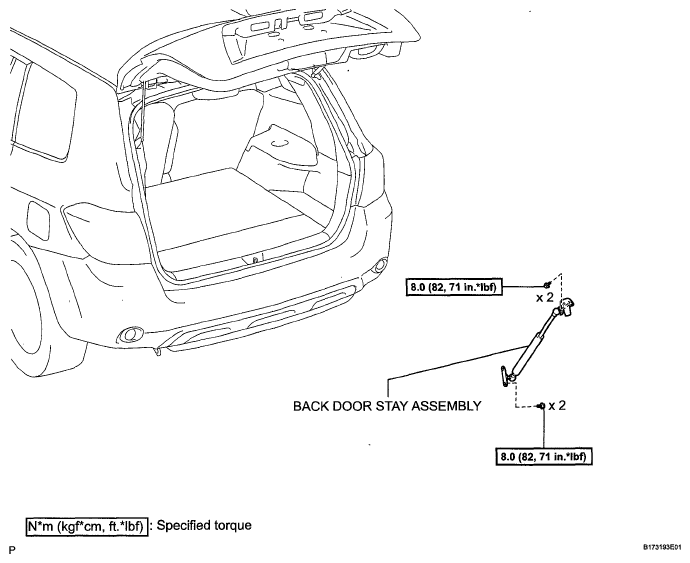

Fig 1: Back Door Support Replacement Components With Torque Specifications

G05422350

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
