Back Door Opener Switch: Components

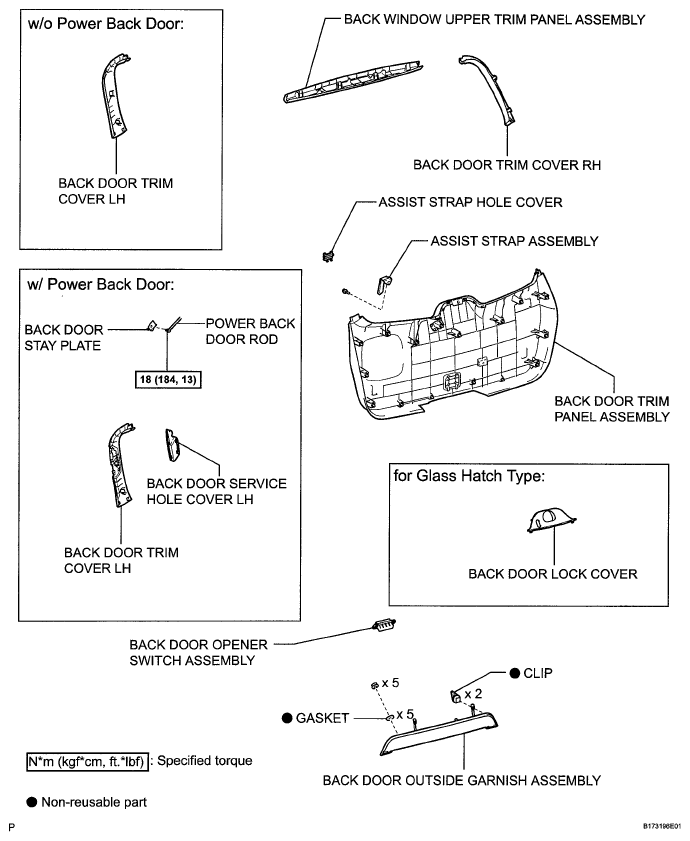

Fig 1: Back Door Opener Switch Replacement Components With Torque Specifications

G05420356

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
