Back Door Closer System
>>
System Diagram
System Diagram

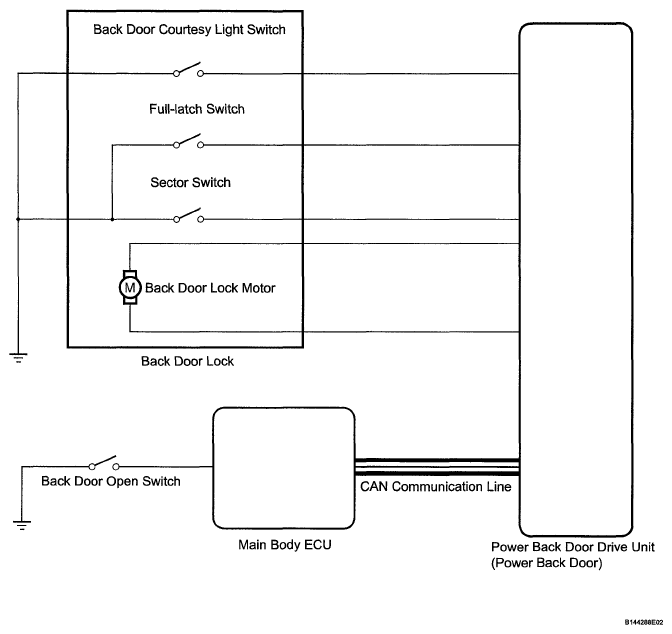

Fig 1: Identifying Back Door Closer System Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Communication method
COMMUNICATION METHOD TABLE
Transmitting ECU
Receiver
Signals
Communication Method
Main body ECU
Power back door ECU
Back door opener switch signal
CAN
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
