DTC B2250: Back Door Closer Operation Malfunction: Wiring Diagram

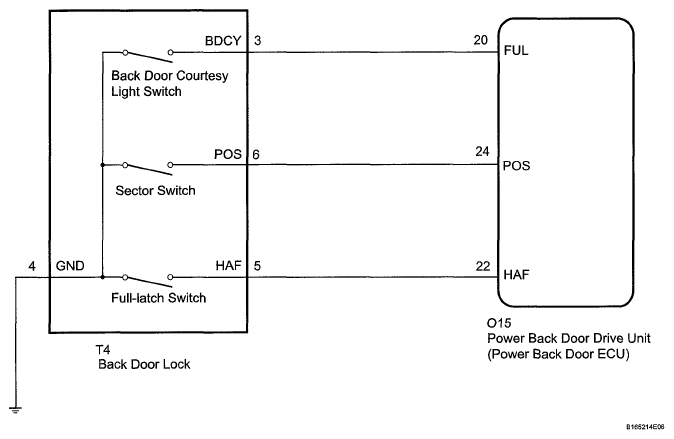

Fig 1: Identifying Back Door Closer Operation Malfunction Wiring Diagram

G05422012

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
