Back Door Closer Does Not Operate: Wiring Diagram

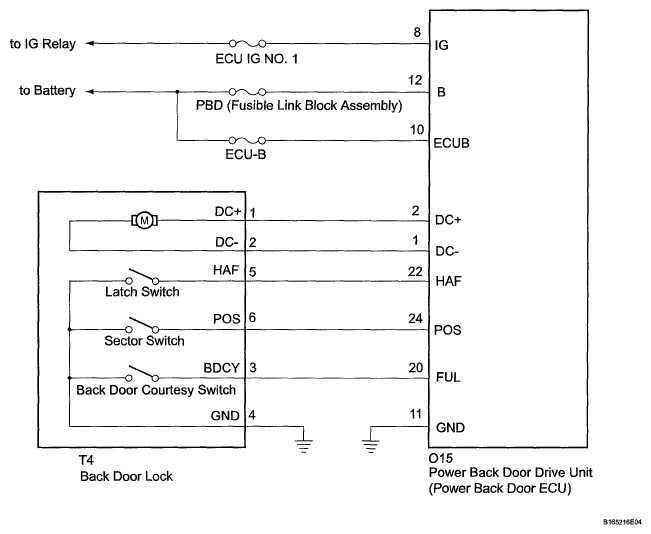

Fig 1: Identifying Back Door Closer Does Not Operate Wiring Diagram

G05422018

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
