Back Door Cannot Be Opened: Wiring Diagram

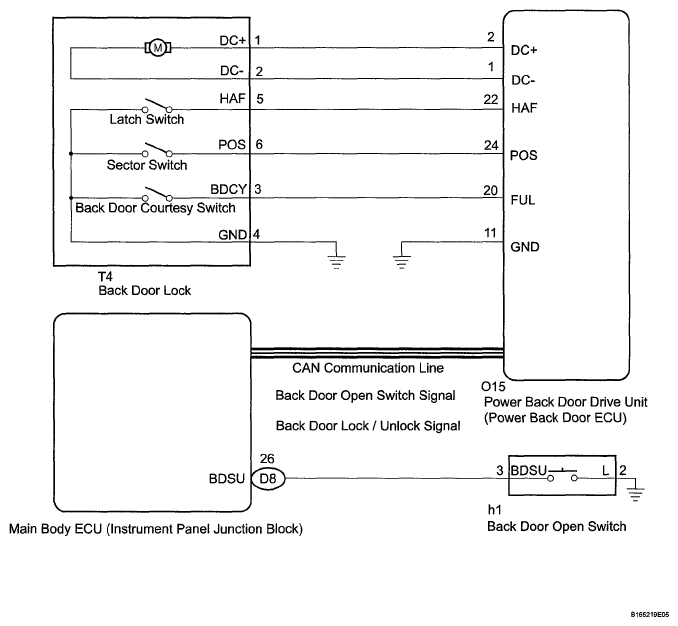

Fig 1: Identifying Back Door Cannot Be Opened Wiring Diagram

G05422024

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
