Steering Pad Switch: Inspection

  1. INSPECT STEERING PAD SWITCH ASSEMBLY
    1. Disconnect steering pad switch assembly connector A from the steering pad.
    2. Disconnect steering pad switch assembly connector B from the spiral cable.

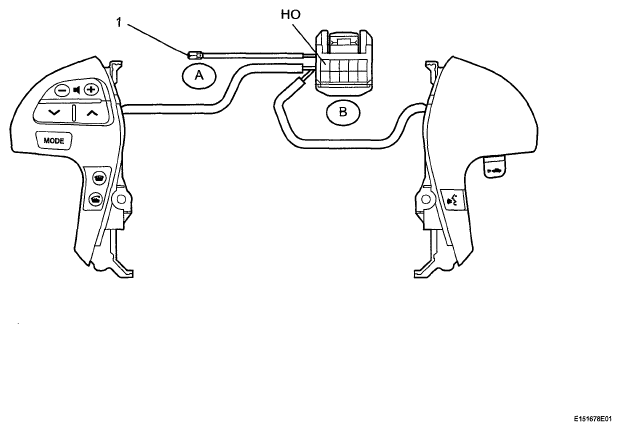

      Fig 1: Identifying Steering Pad Switch Connectors
      G05420990Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Measure the resistance according to the value(s) in the table below.

      Standard resistance

      RESISTANCE SPECIFICATION TABLE

      Tester connection Condition Specified condition
      A-1 - B-1 (HO) Always Below 1 Ω

      If the result is not as specified, replace the steering pad switch assembly.
