Home >> Toyota >> 2008 >> Highlander Base, FWD >> Repair and Diagnosis >> Accessories & Equipment >> Horns >> Horn (Except Hybrid) >> Steering Pad Switch >> Components

Steering Pad Switch: Components

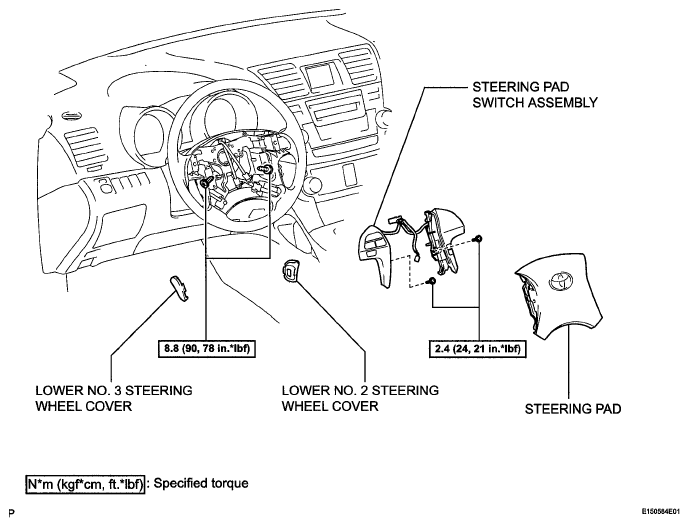

Fig 1: Steering Pad Switch Replacement Components With Torque Specifications

G05420420

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
