Home >> Toyota >> 2008 >> Highlander Base, FWD >> Repair and Diagnosis >> Accessories & Equipment >> Horns >> Horn (Except Hybrid) >> Spiral Cable >> Components

Spiral Cable: Components

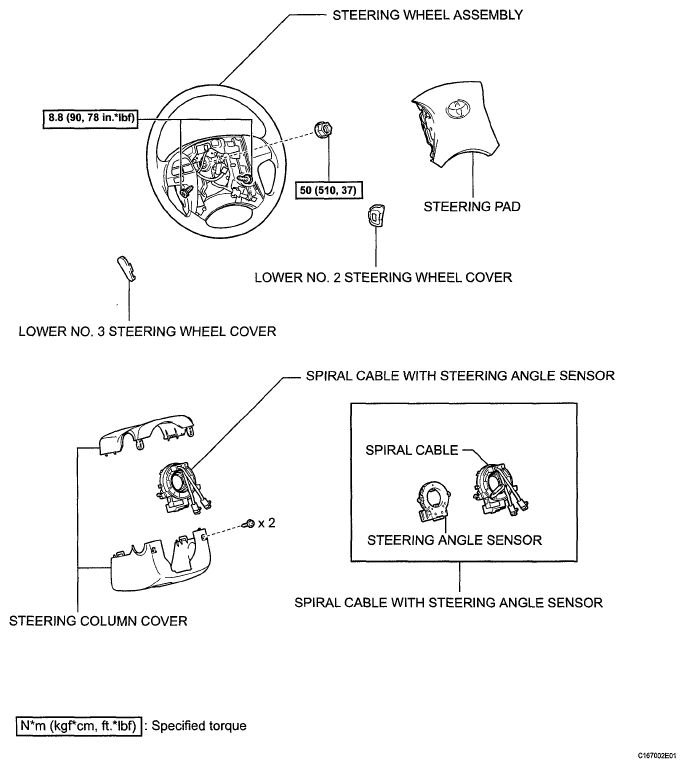

Fig 1: Identifying Spiral Cable Replacement Components With Torque Specifications

G05419251

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
