Parts Location

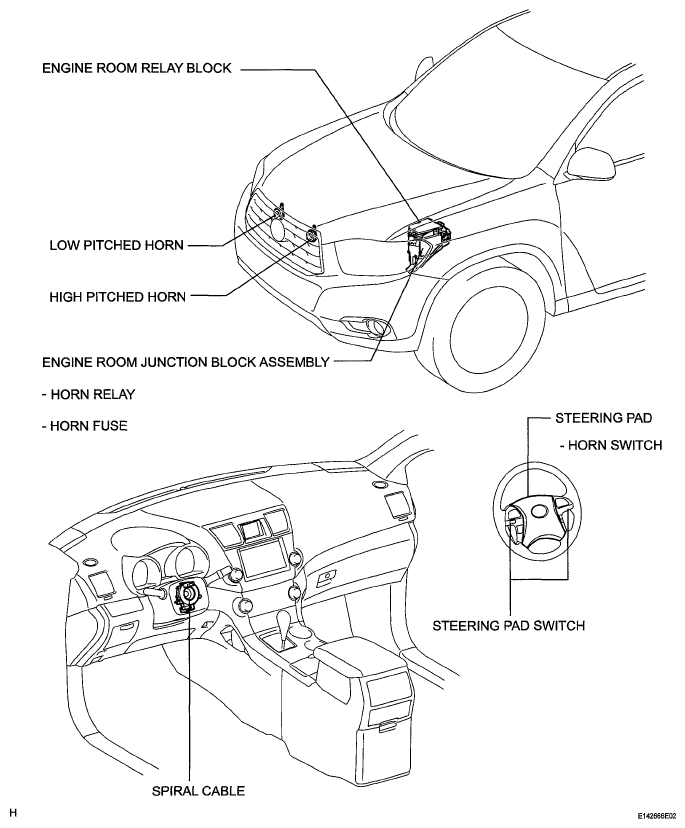

Fig 1: Identifying Horn System Components
G05420985Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
