Smart Key System

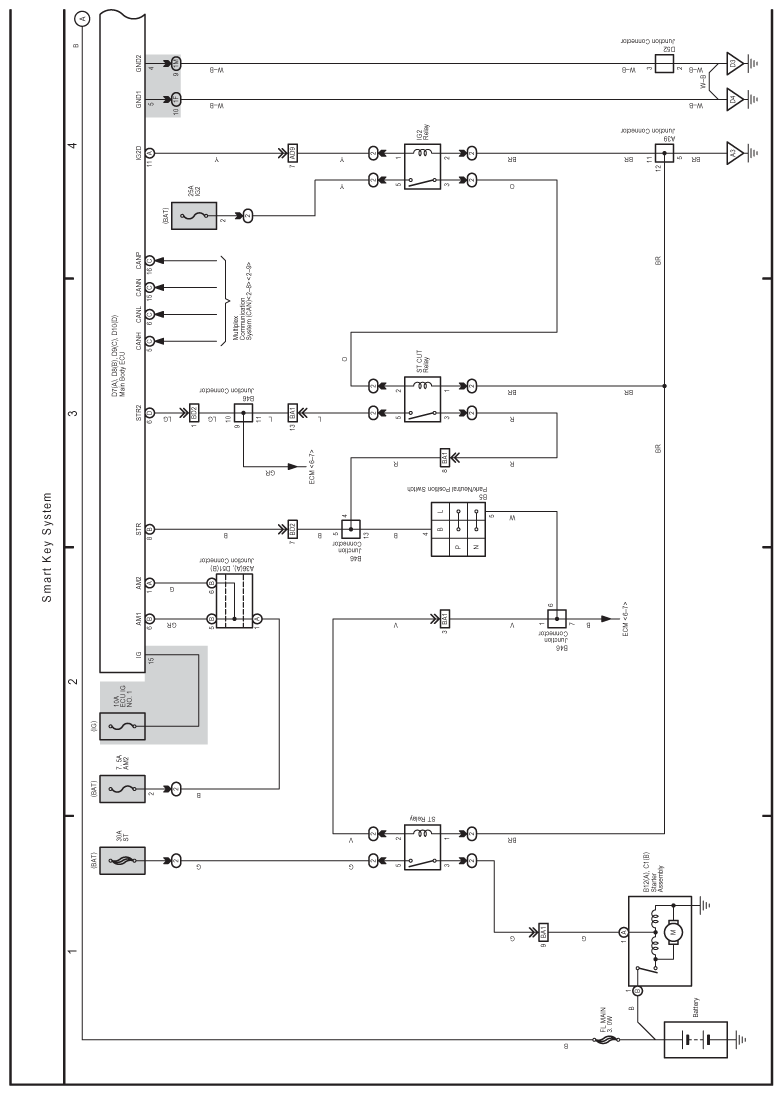

Fig 1: Smart Key System - Electrical Wiring Diagram (1 Of 5)
G07576828Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

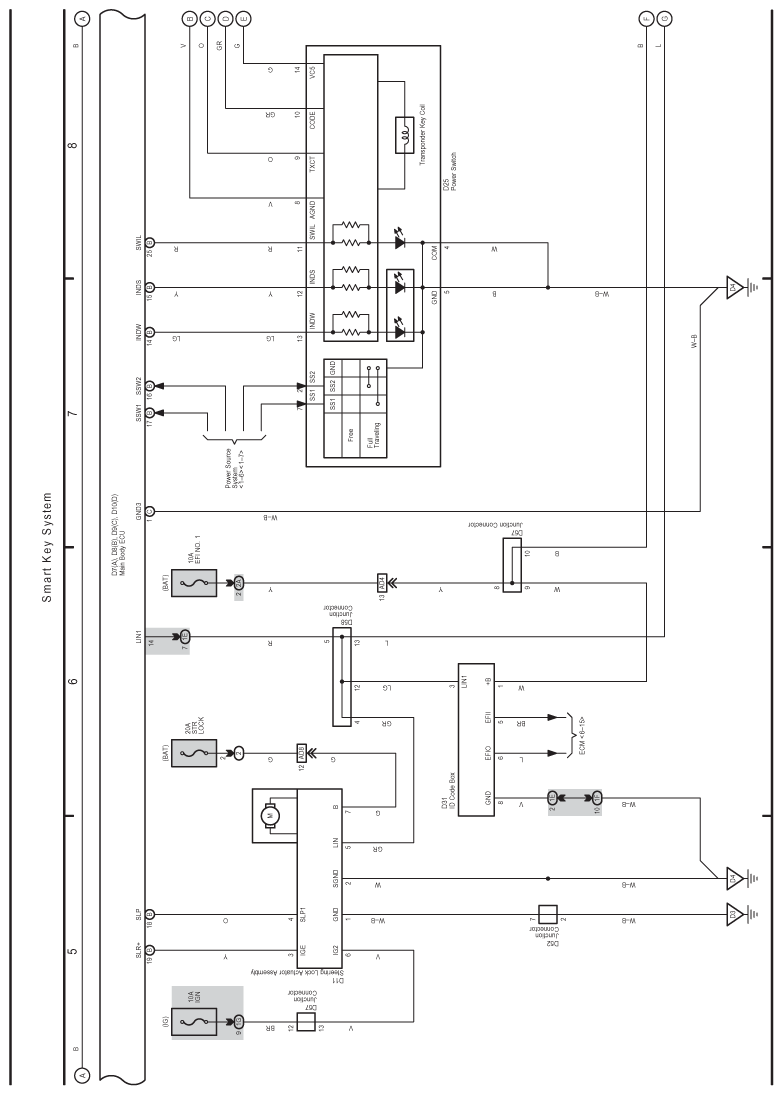

Fig 2: Smart Key System - Electrical Wiring Diagram (2 Of 5)
G07576829Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

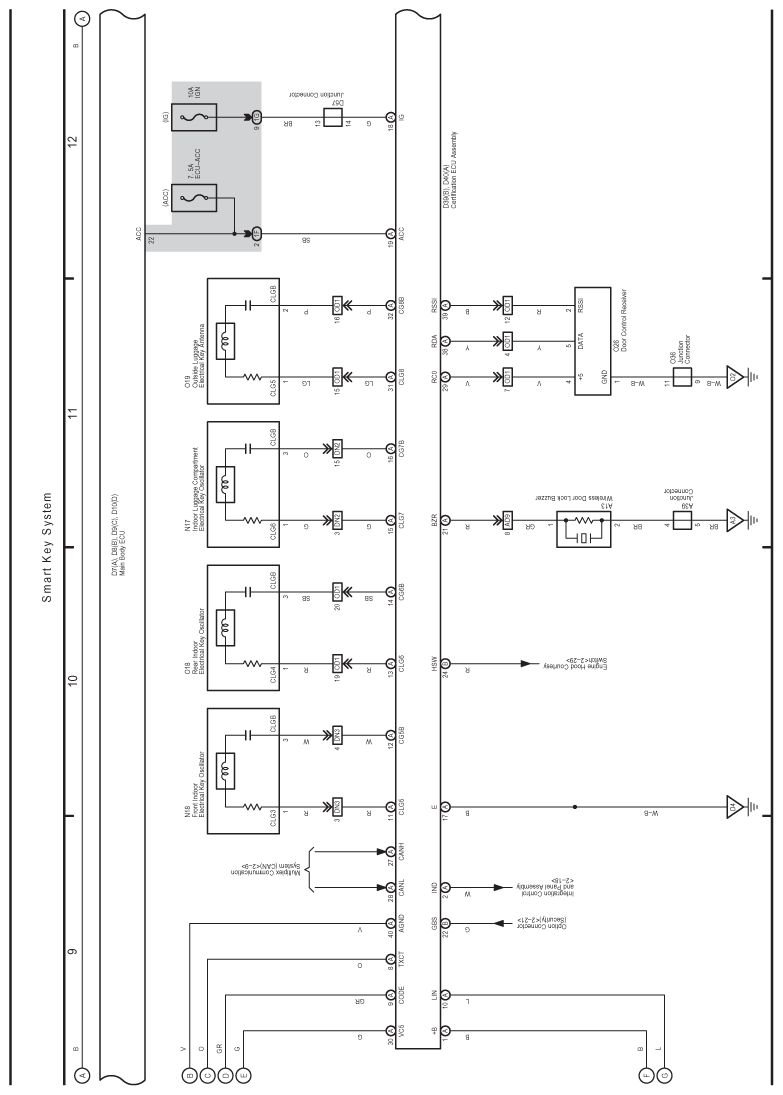

Fig 3: Smart Key System - Electrical Wiring Diagram (3 Of 5)
G07576830Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

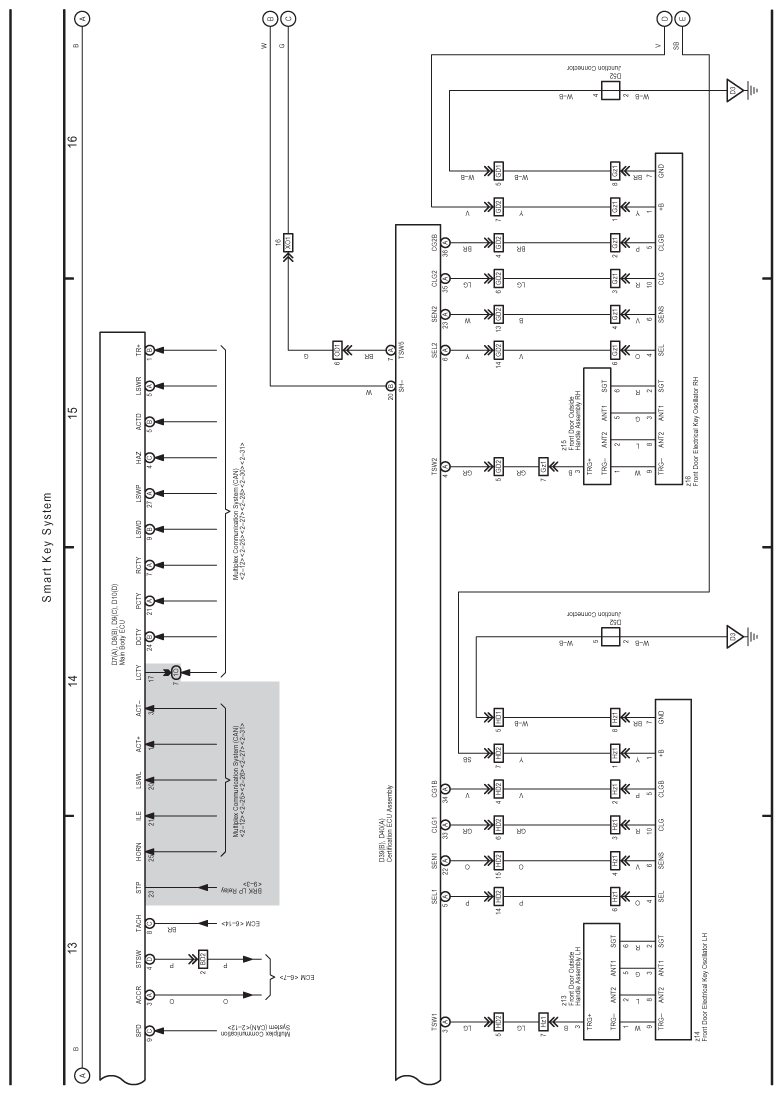

Fig 4: Smart Key System - Electrical Wiring Diagram (4 Of 5)
G07576831Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

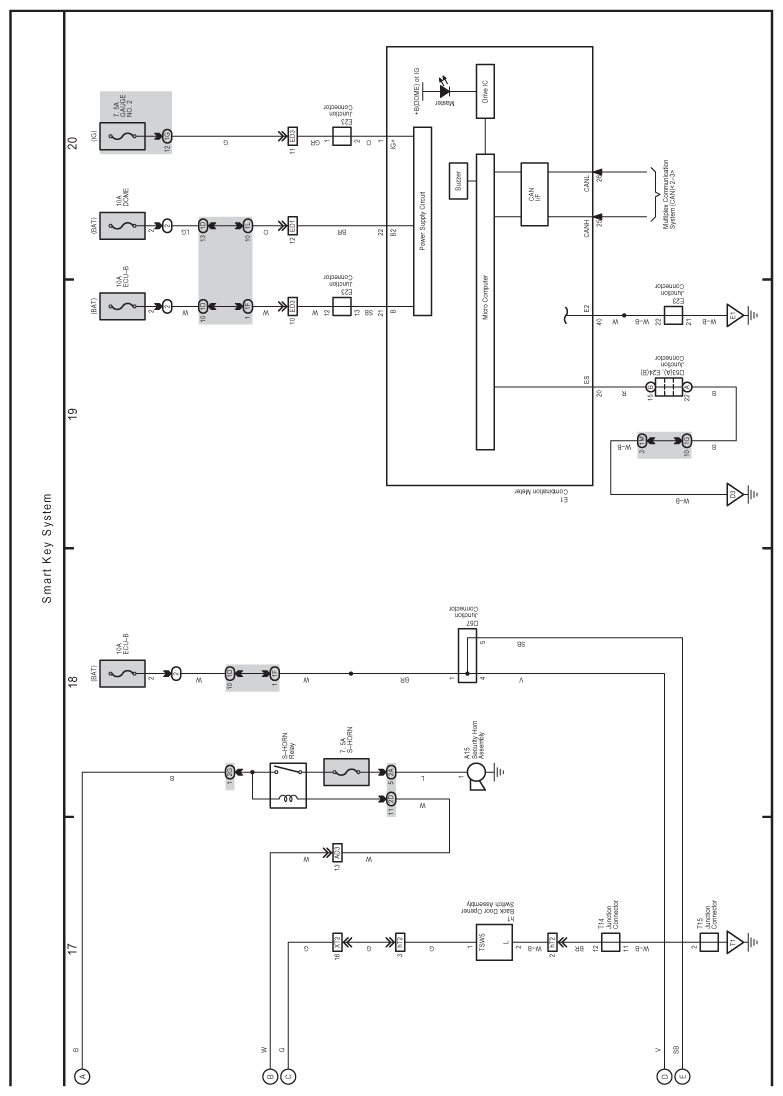

Fig 5: Smart Key System - Electrical Wiring Diagram (5 Of 5)
G07576832Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
