Seat Heater

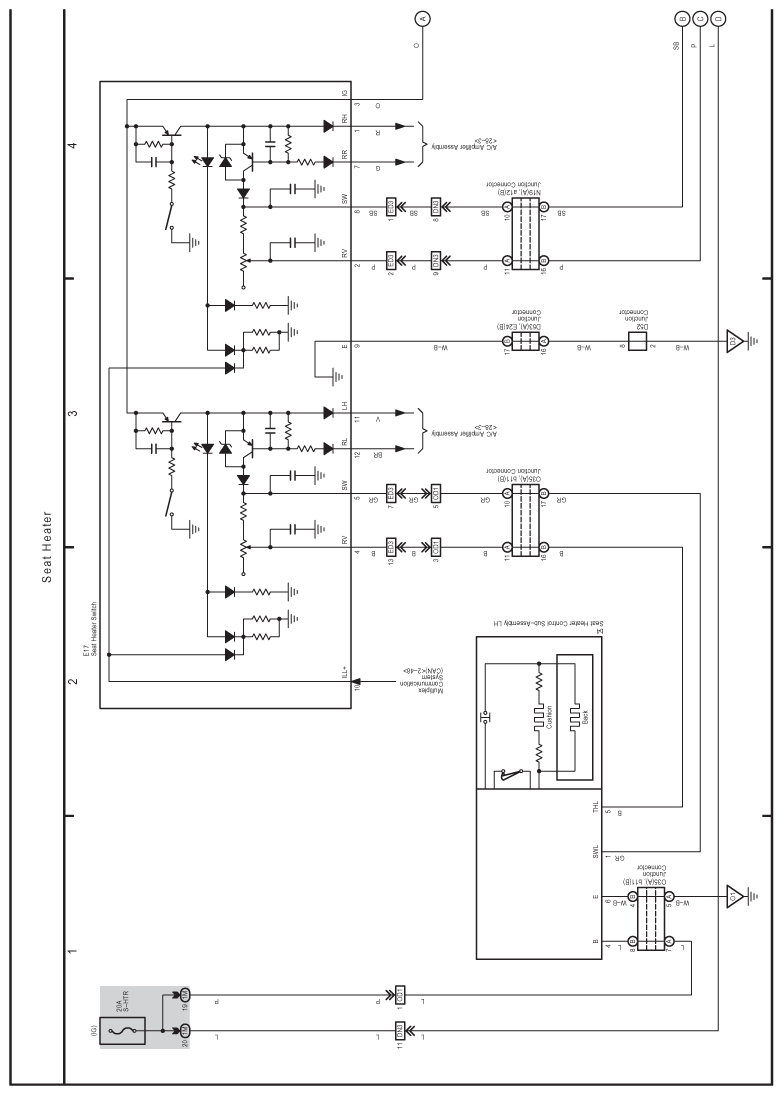

Fig 1: Seat Heater - Electrical Wiring Diagram (1 Of 2)
G07576856Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

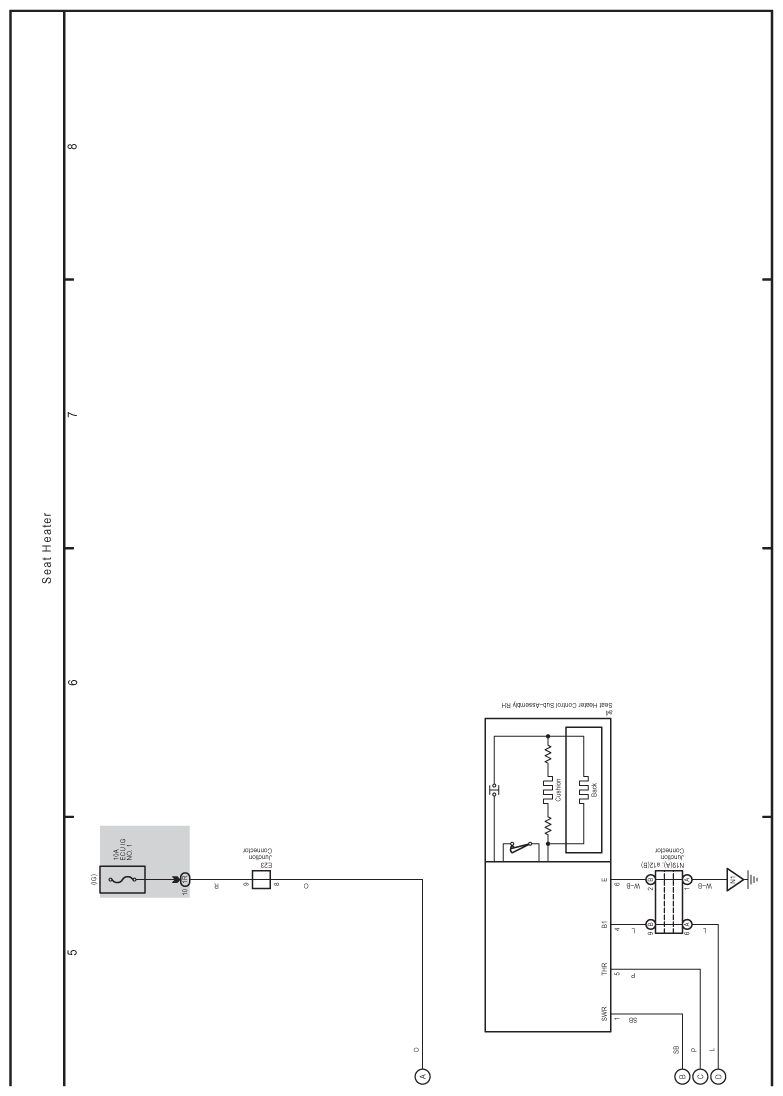

Fig 2: Seat Heater - Electrical Wiring Diagram (2 Of 2)
G07576857Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
