Rear Wiper and Washer, Trailer Towing

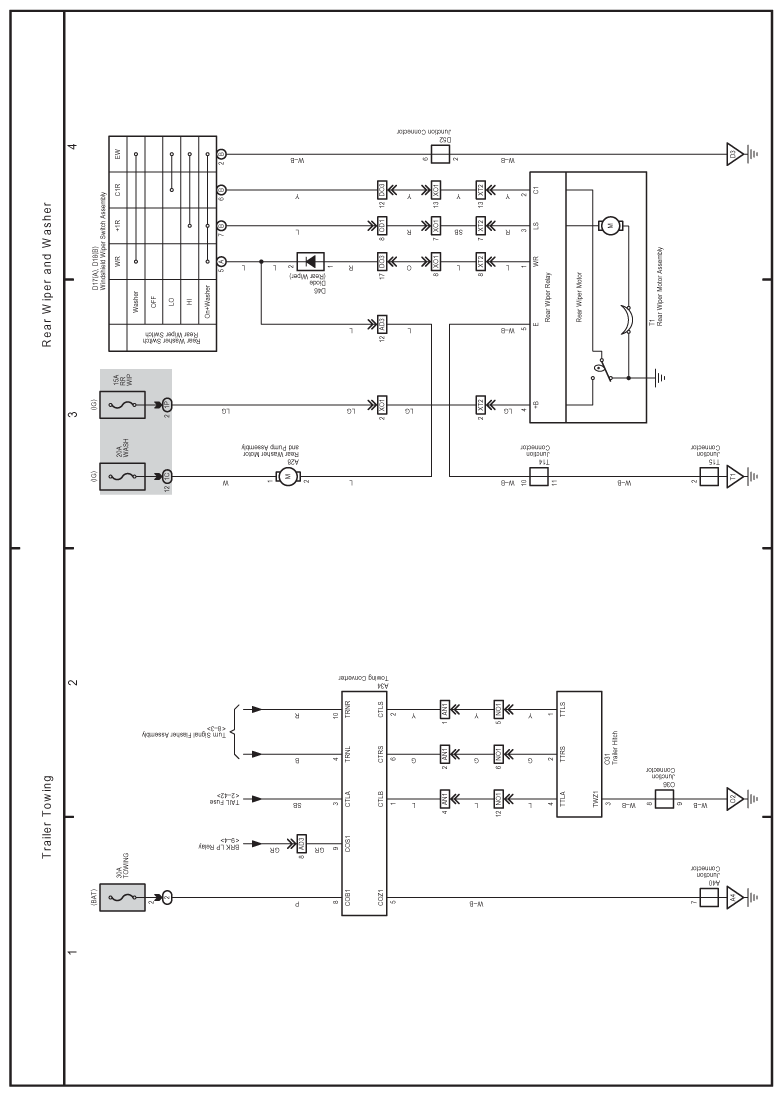

Fig 1: Trailer Towing And Rear Wiper And Washer - Electrical Wiring Diagram

G07576846

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
