Power Source

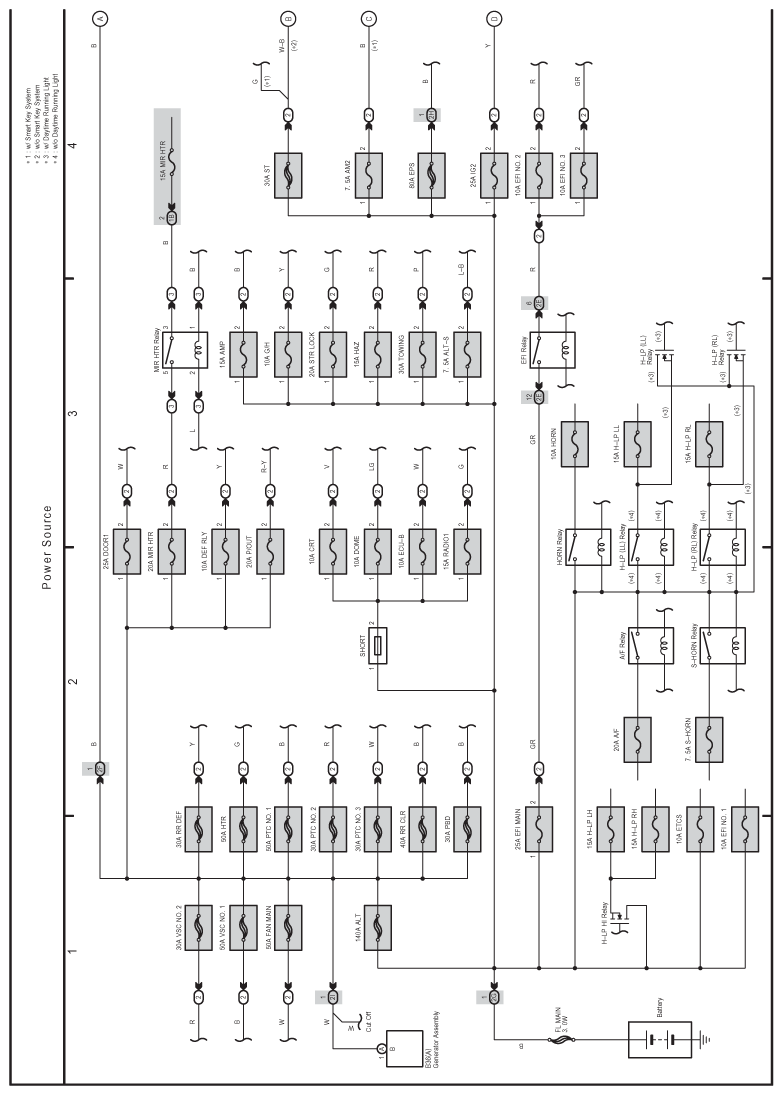

Fig 1: Power Source - Electrical Wiring Diagram (1 Of 2)
G07576813Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

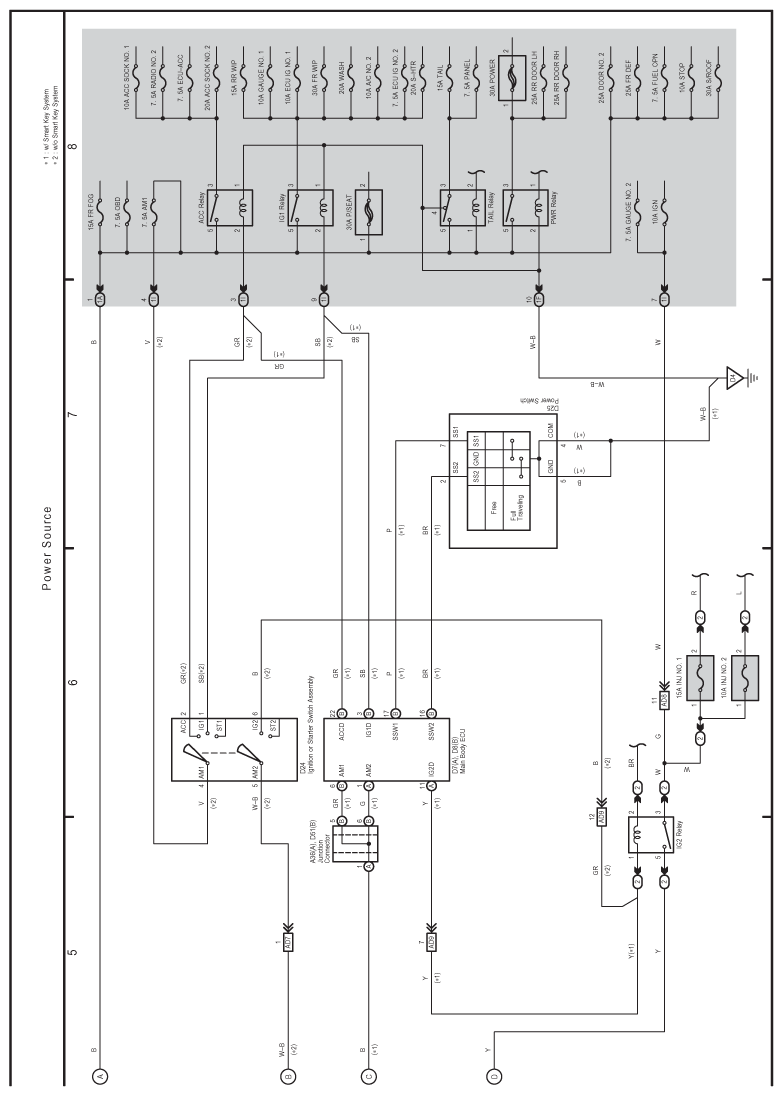

Fig 2: Power Source - Electrical Wiring Diagram (2 Of 2)
G07576814Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
