Power Seat (Driver's Seat), Power Seat (Front Passenger's Seat)

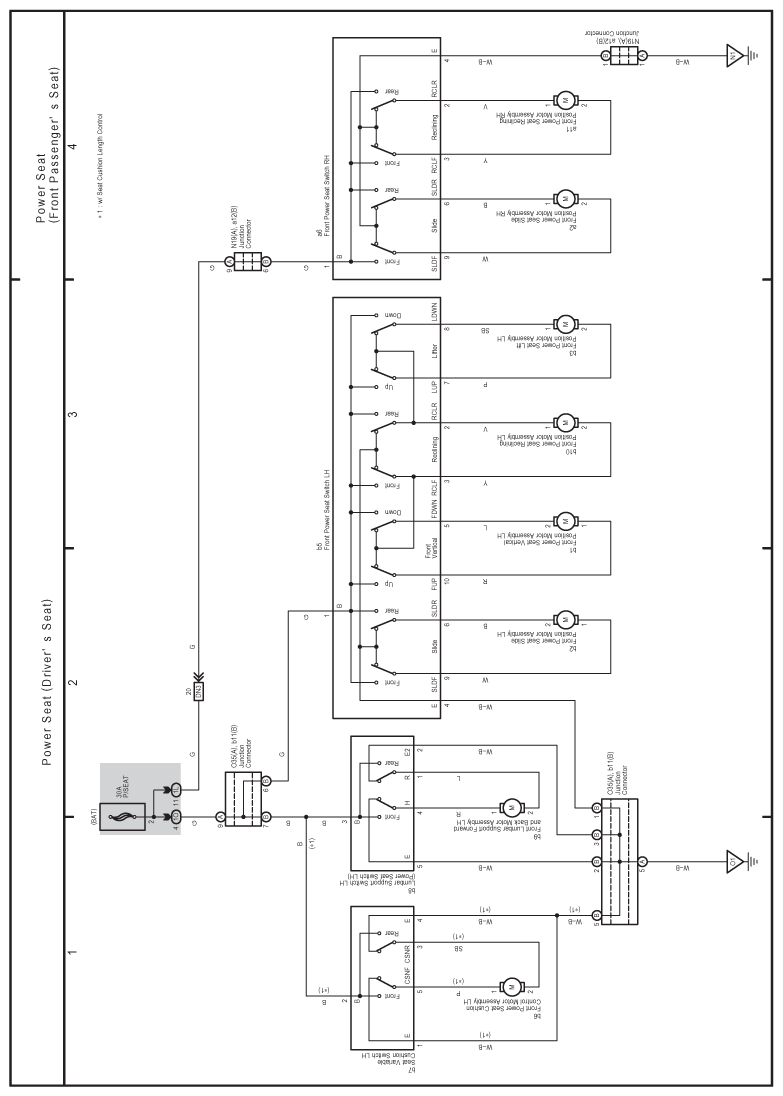

Fig 1: Power Seat (Driver's Seat) And Power Seat (Front Passenger's Seat) - Electrical Wiring Diagram
G07576855Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
