Power Outlet (115V), Power Outlet (12V)

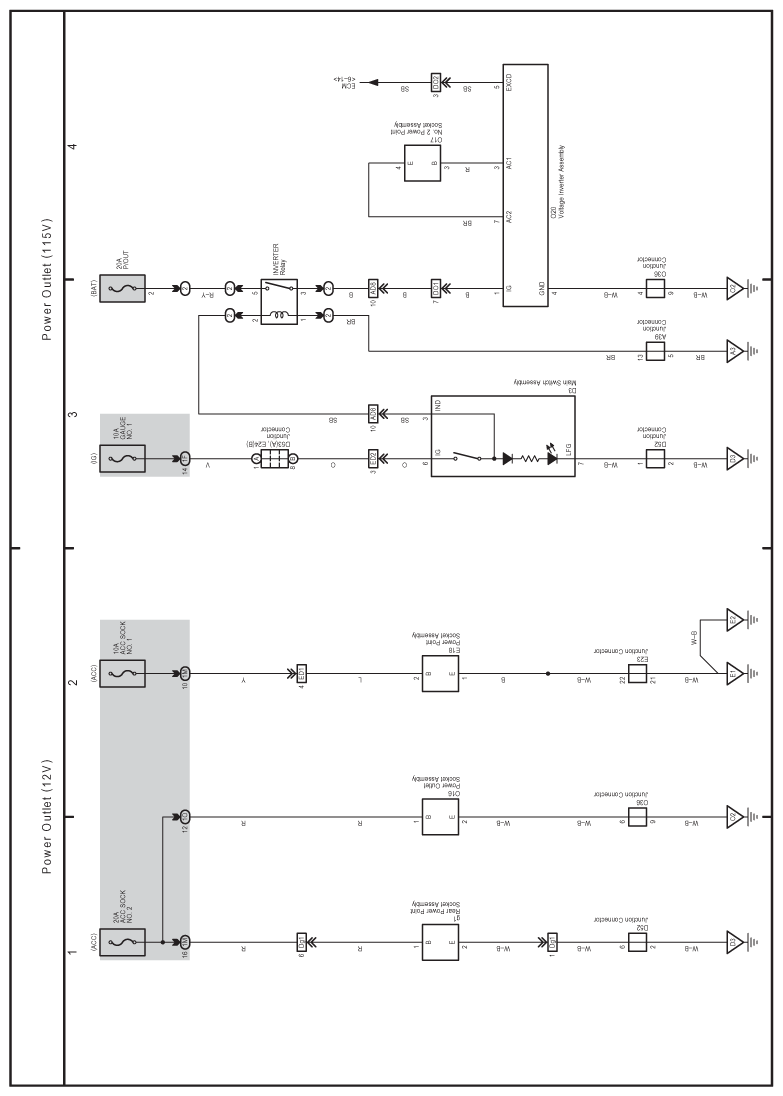

Fig 1: Power Outlet (12V) And Power Outlet (115V) - Electrical Wiring Diagram

G07576848

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
