Toyota
>>
2008
>>
Highlander Base, AWD
>>
Repair and Diagnosis
>>
Electrical
>>
Motors, Switches, Relays
>>
OEM Overall Electrical Wiring Diagram (Except Hybrid)
>>
Overall Electrical Wiring Diagram
>>
Power Back Door
Power Back Door

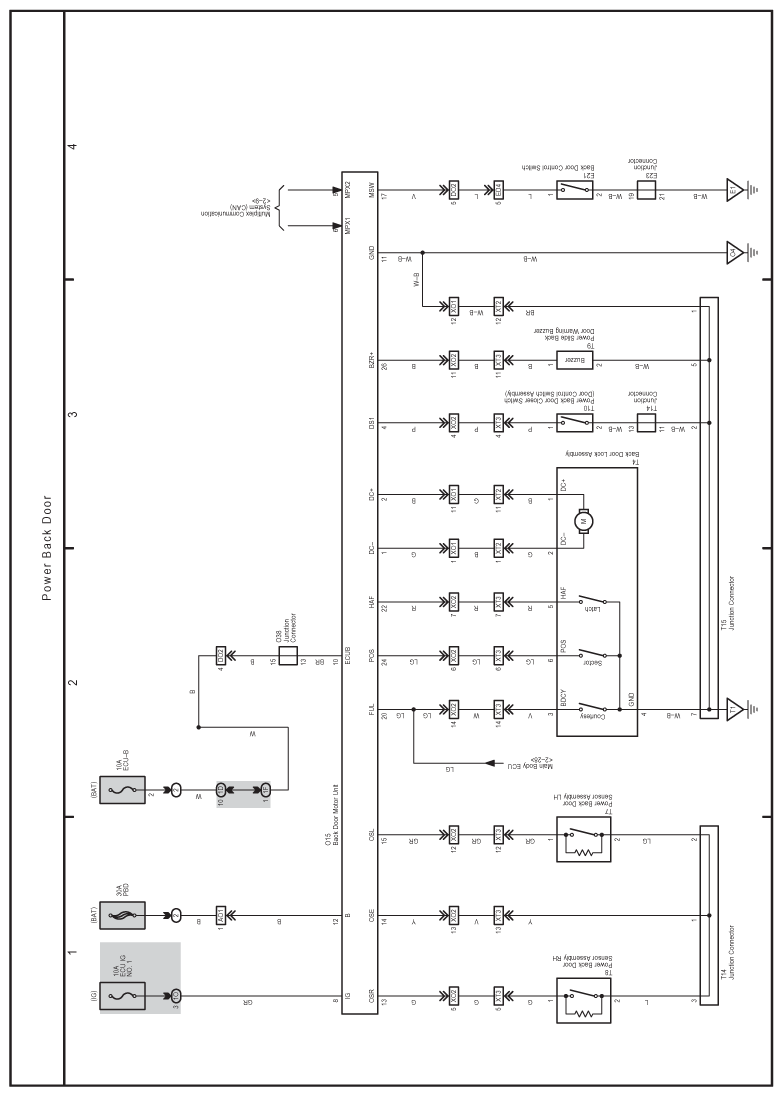

Fig 1: Power Back Door - Electrical Wiring Diagram
