Multi Display, Parking Assist (Rear View Monitor)

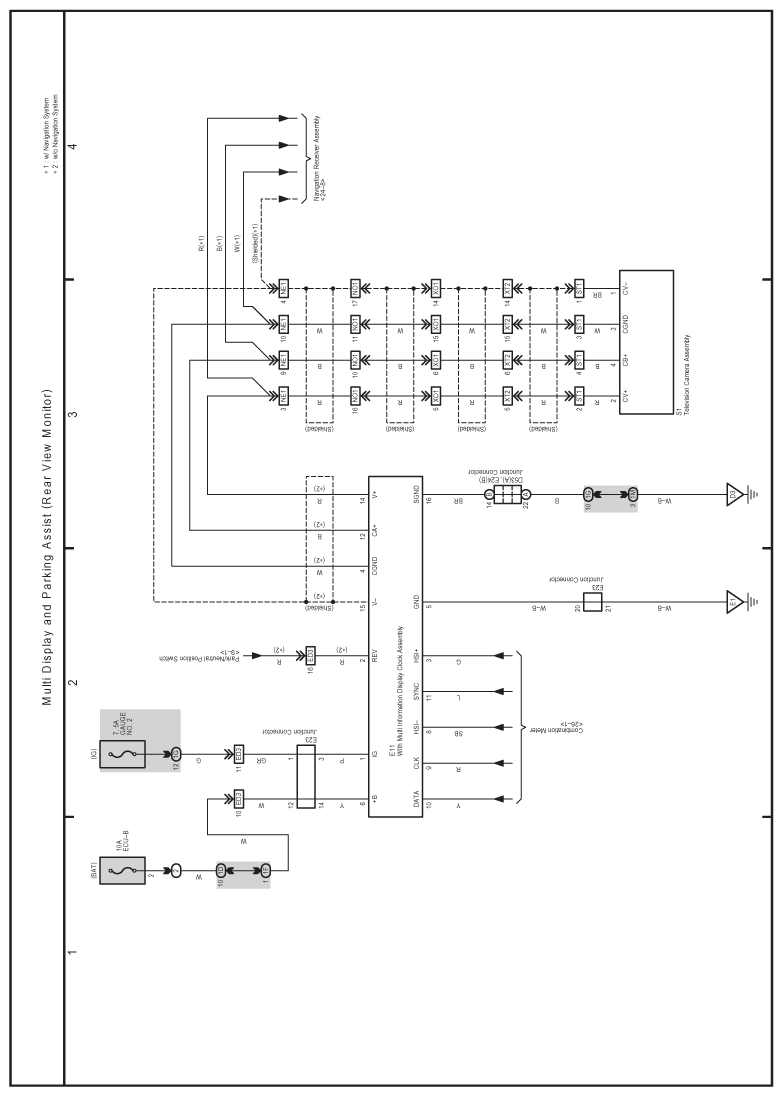

Fig 1: Multi Display And Parking Assist (Rear View Monitor) - Electrical Wiring Diagram

G07576861

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
