How To Read This Section

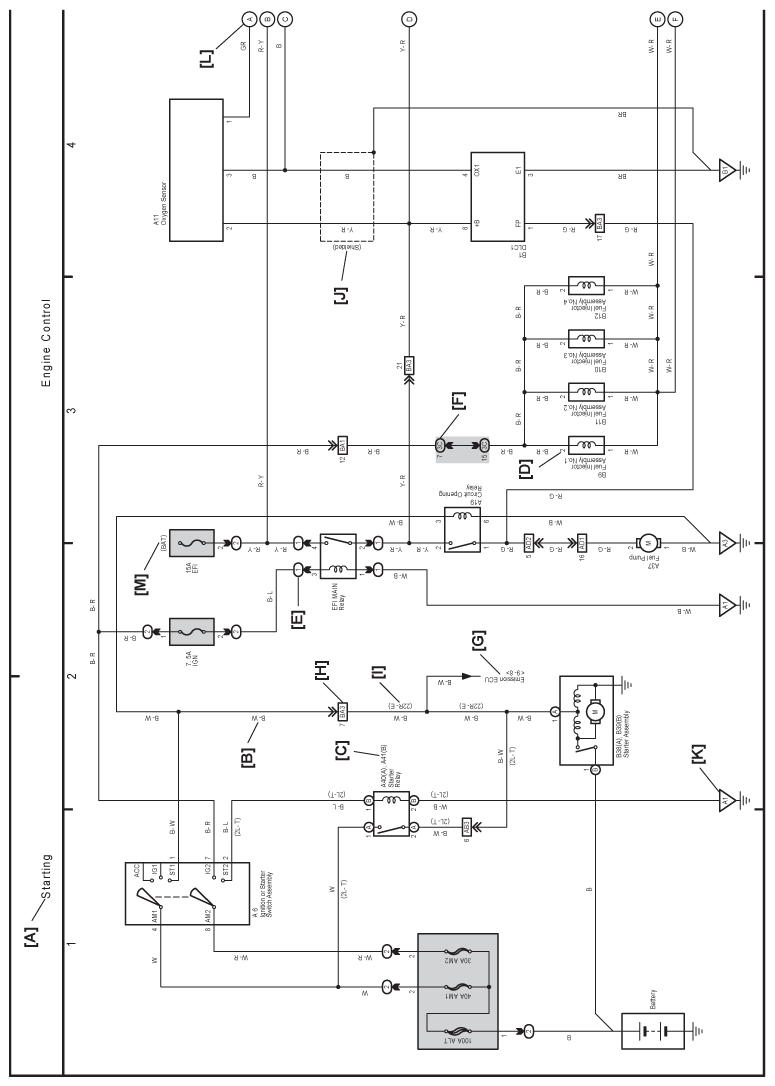

Fig 1: Electrical Wiring Diagram Example

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*The system shown here is an EXAMPLE ONLY. It is different to the actual circuit shown in the wiring diagram section.

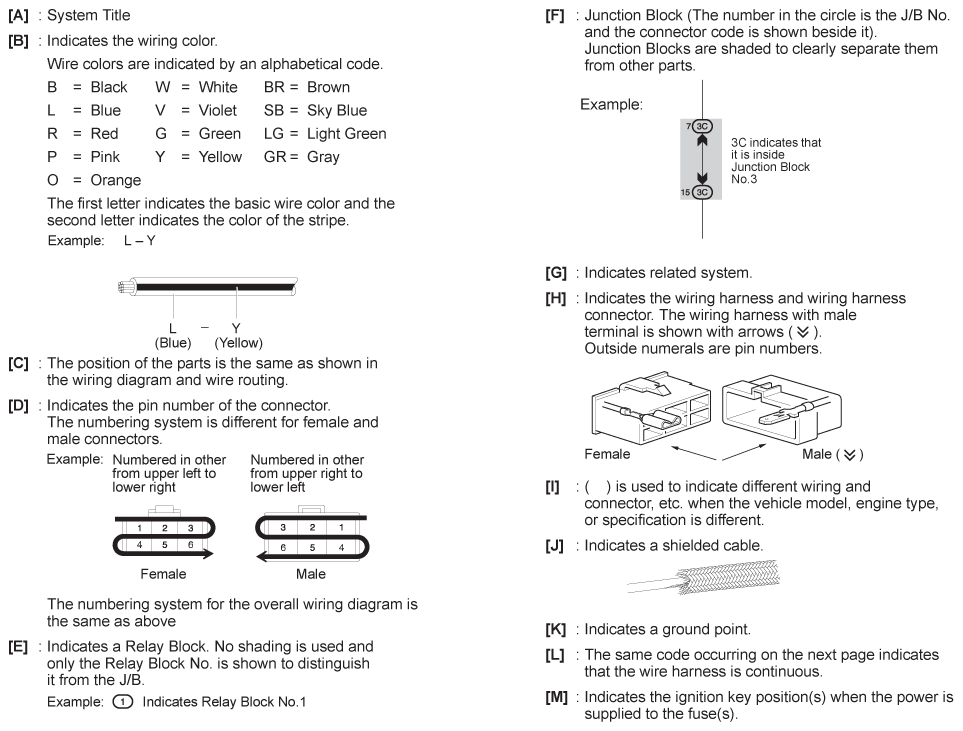

Fig 2: Electrical Wiring Reference Chart
