Front Window Deicer, Horn, Shift Lock

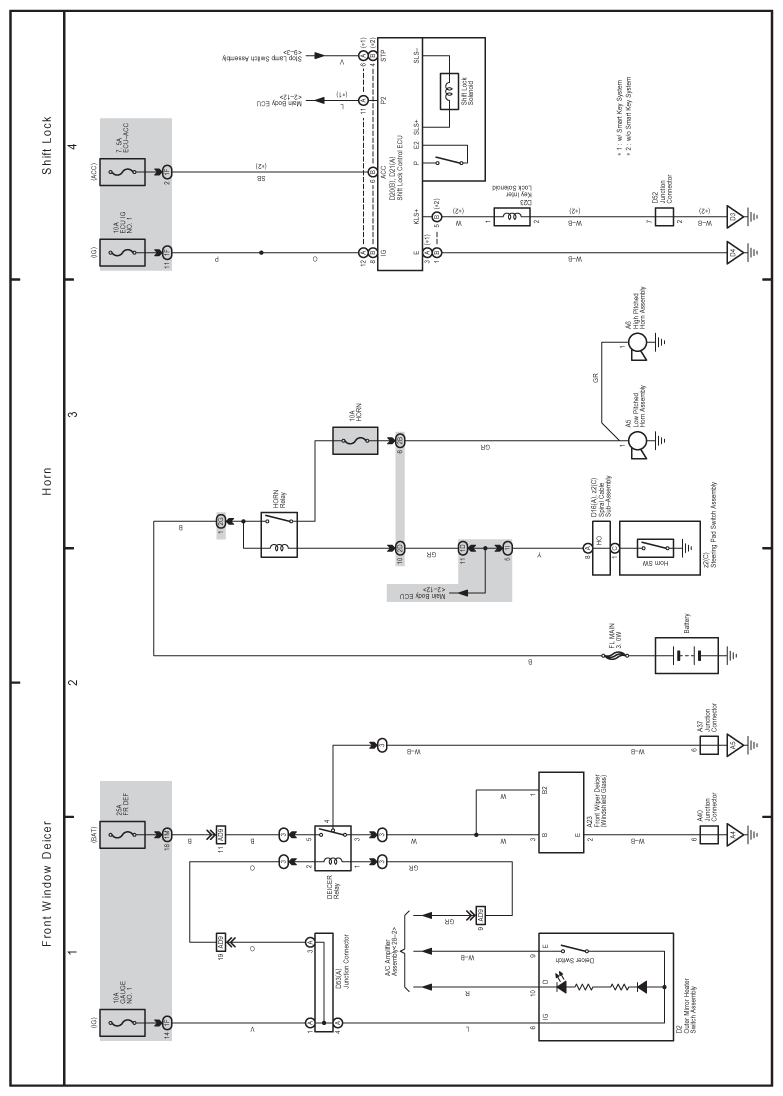

Fig 1: Front Window Deicer, Horn And Shift Lock - Electrical Wiring Diagram

G07576859

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
