Combination Meter

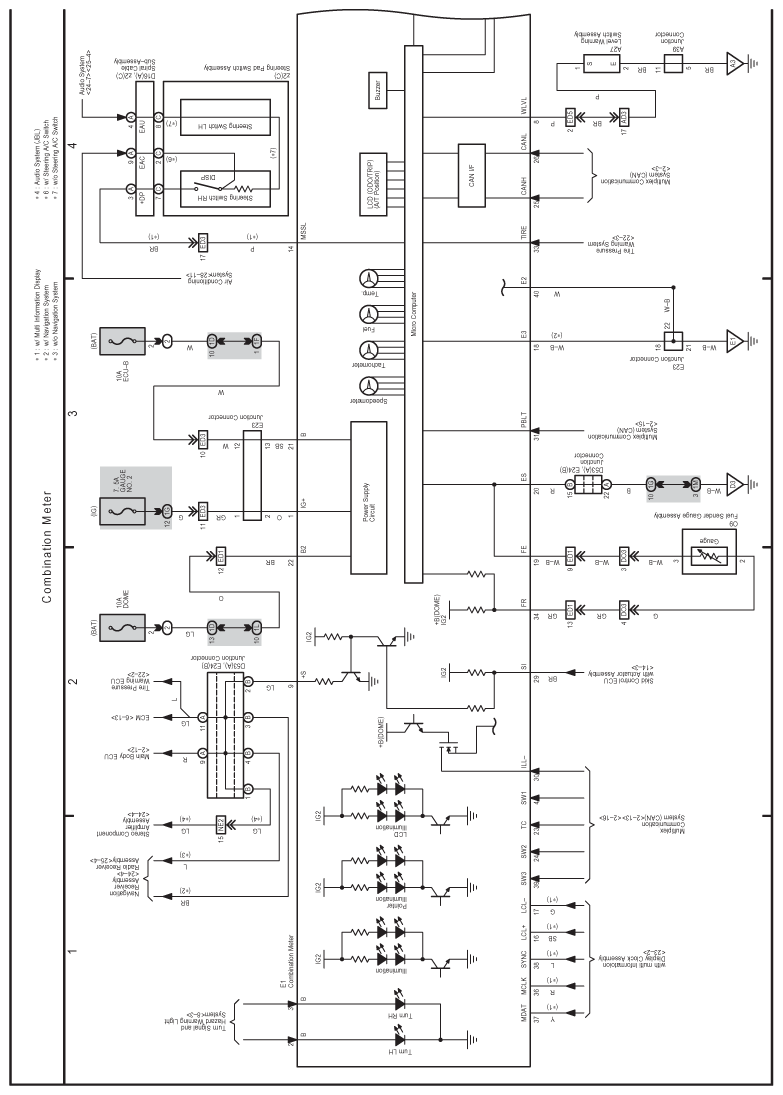

Fig 1: Combination Meter - Electrical Wiring Diagram (1 Of 2)
G07576867Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

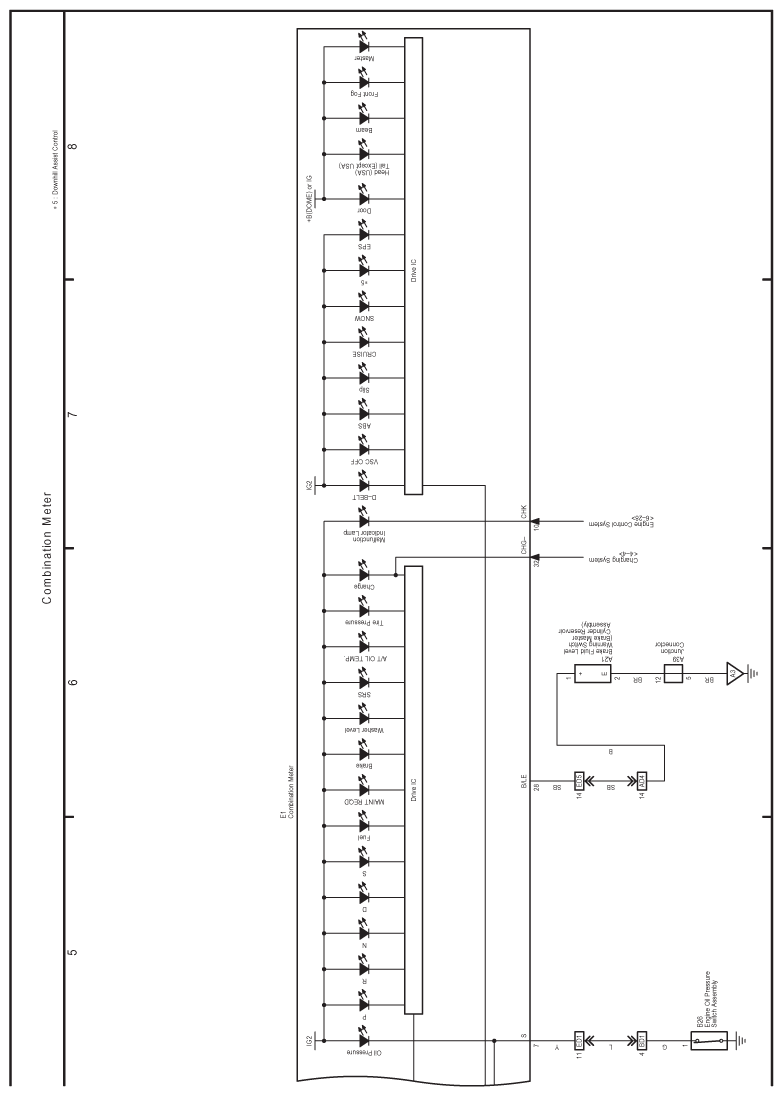

Fig 2: Combination Meter - Electrical Wiring Diagram (2 Of 2)
G07576868Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
