Charging, Starting (w/o Smart Key System)

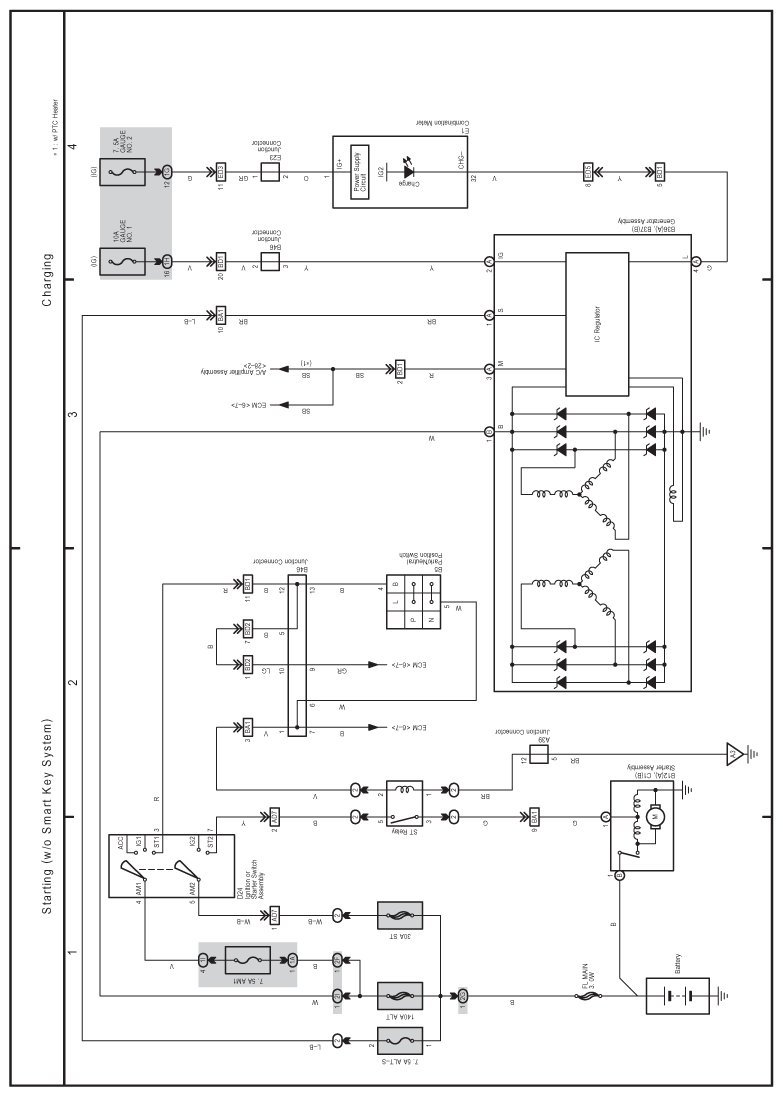

Fig 1: Starting (w/o Smart Key System) And Charging - Electrical Wiring Diagram

G07576833
