Air Conditioning

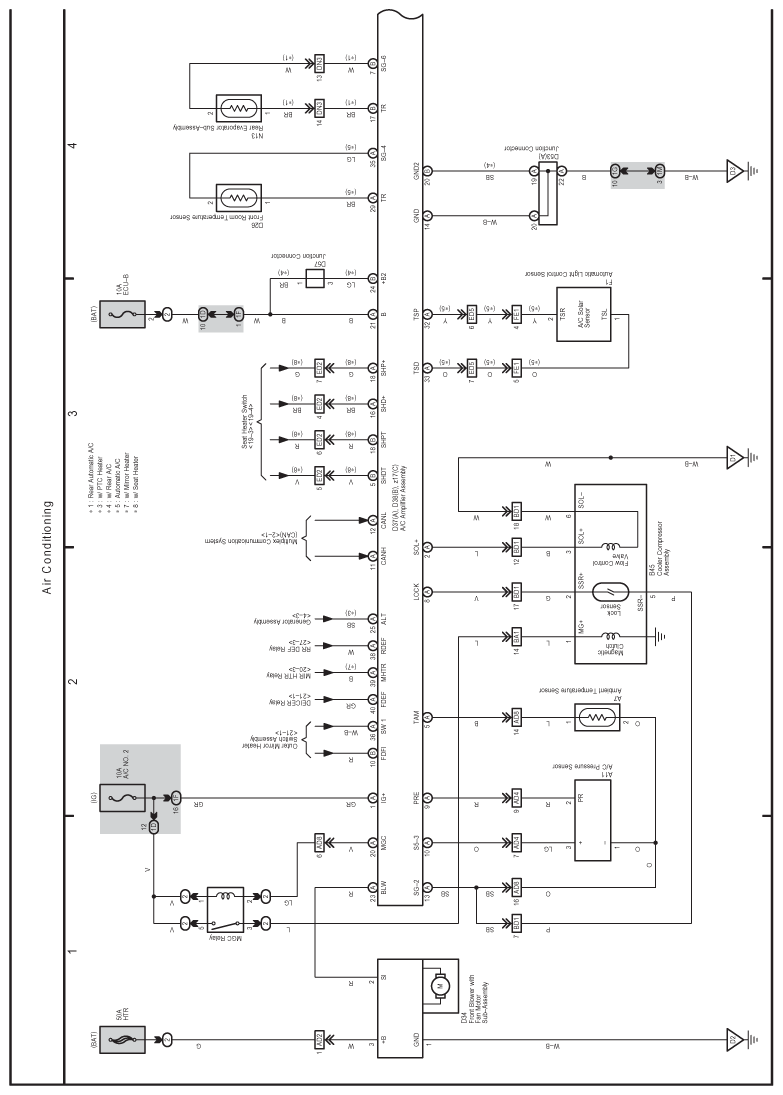

Fig 1: Air Conditioning - Electrical Wiring Diagram (1 Of 3)
G07576870Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

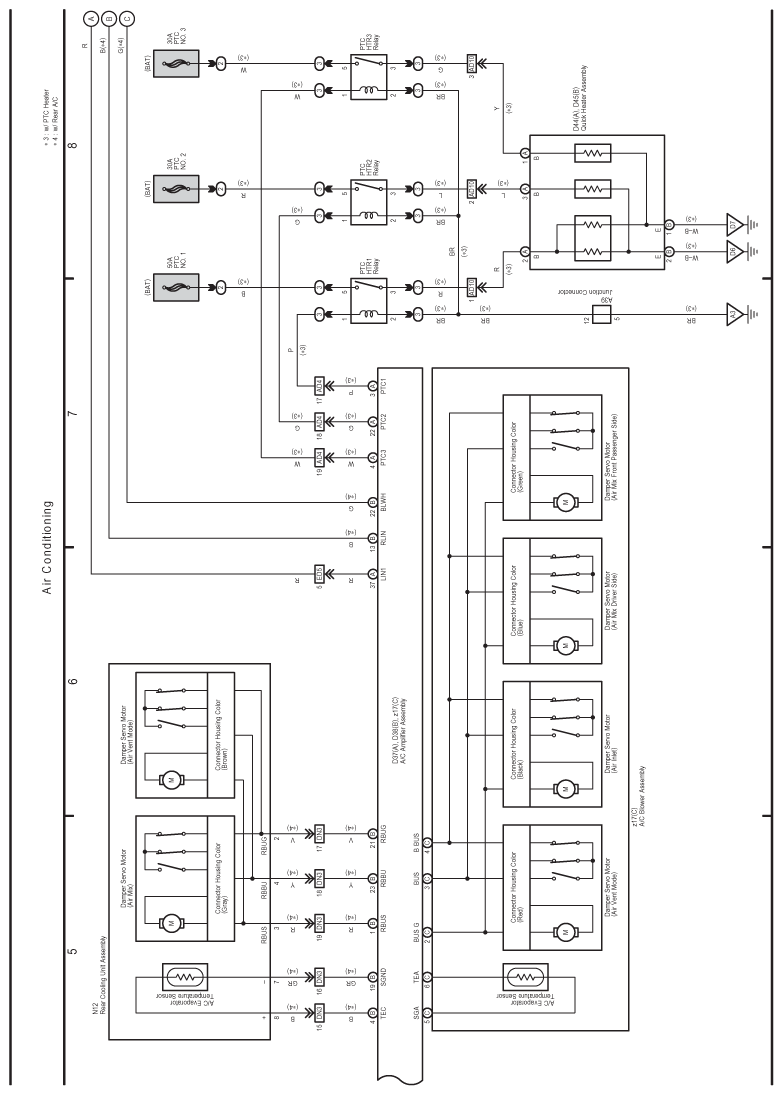

Fig 2: Air Conditioning - Electrical Wiring Diagram (2 Of 3)
G07576871Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

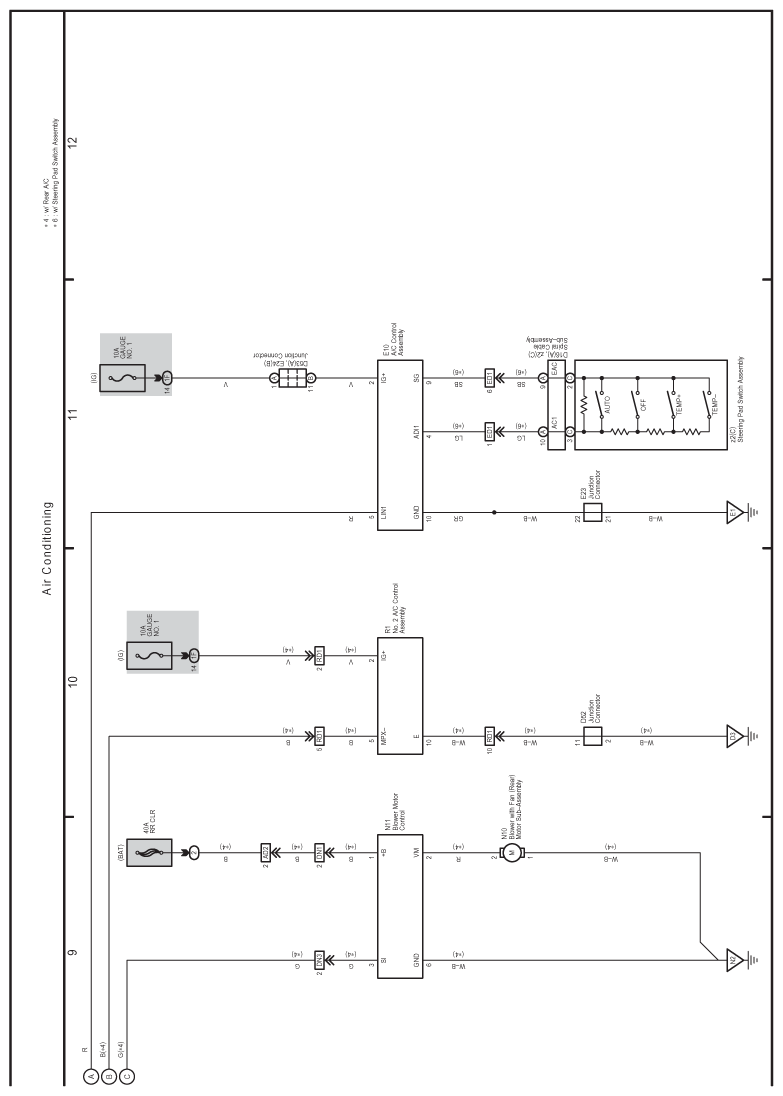

Fig 3: Air Conditioning - Electrical Wiring Diagram (3 Of 3)
G07576872Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
