Location of Connector Joining Wire Harness and Wire Harness: Overview

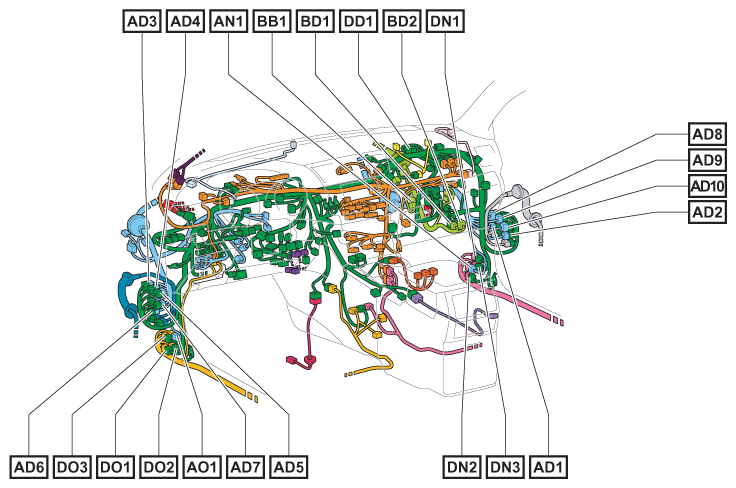

Fig 1: Locating Connector Joining Wire Harness And Wire Harness
G07576537Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

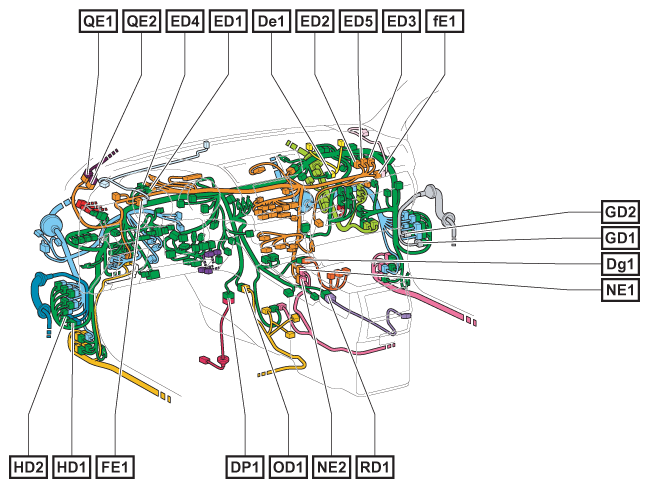

Fig 1: Locating Connector Joining Wire Harness And Wire Harness
G07576539Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

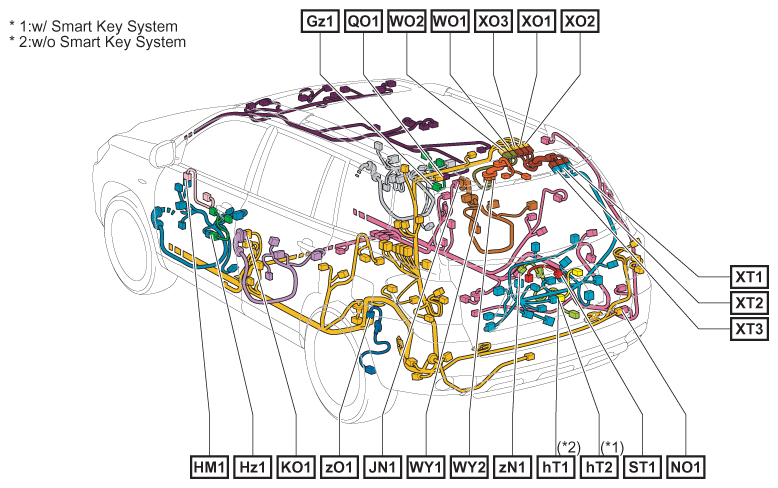

Fig 1: Locating Connector Joining Wire Harness And Wire Harness
G07576540Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
