Highlander Base, AWD
>>
Repair and Diagnosis
>>
Electrical
>>
Motors, Switches, Relays
>>
OEM Electrical Wiring Harness Routing (Except Hybrid)
>>
Electrical Wiring Routing
>>
Connector Joining Wire Harness and Wire Harness & Ground Points Locations
Connector Joining Wire Harness and Wire Harness & Ground Points Locations

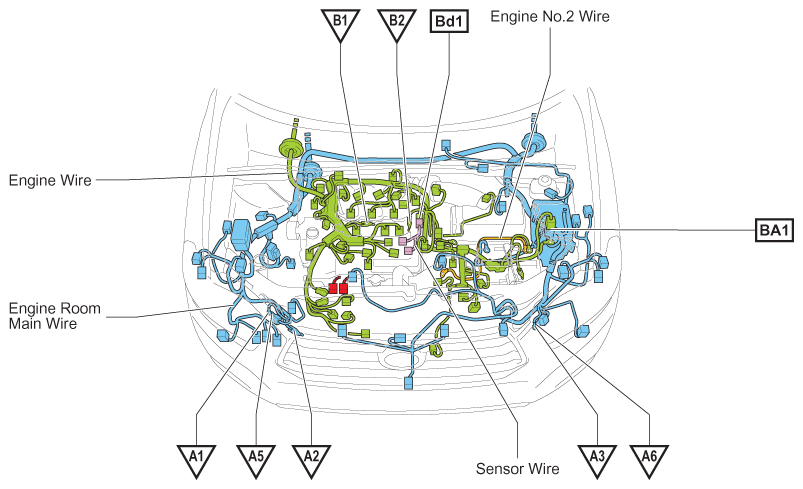

Fig 1: Locating Ground Points, Connector Joining Wire Harness And Wire Harness
