Engine Room Relay Block No. 2 Assembly

Front Fender Apron RH  (See Figure)

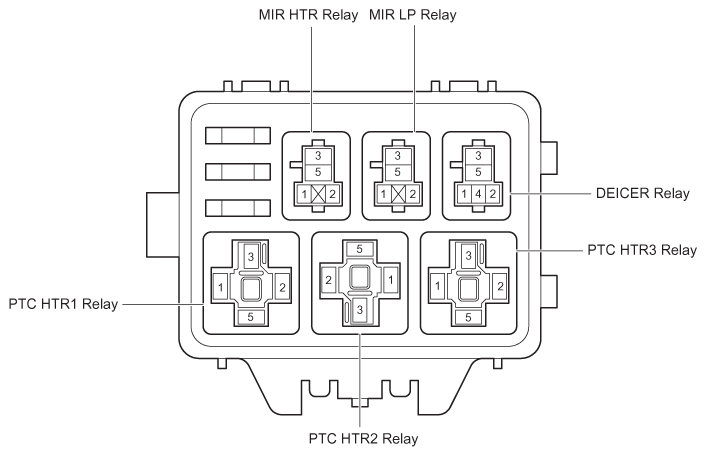

Fig 1: Engine Room R/B No. 2 Assembly Relay Locations - Front Fender Apron RH
G07576519Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
ENGINE ROOM R/B NO. 2 (FRONT FENDER APRON RH) RELAY IDENTIFICATION

RELAY DESCRIPTION
PTC HTR1 Relay
MIR HTR Relay
MIR LP Relay
Deicer Relay
PTC HTR3 Relay
PTC HTR2 Relay
