Parking Brake Cable: Removal

REMOVE PARKING BRAKE CONTROL PEDAL ASSEMBLY
HINT:

Refer to the instructions for REMOVAL of the PARKING BRAKE PEDAL .
REMOVE NO. 1 PARKING BRAKE CABLE ASSEMBLY
1. Remove the adjusting nut.

  Fig 1: Identifying Parking Brake Control Pedal Assembly & Adjusting Nut
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Remove the clip.

  Fig 2: Identifying Parking Brake Control Pedal Assembly & Clip
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Pull up the parking brake pedal claw and remove the No. 1 parking brake cable assembly.

  Fig 3: Pulling Up Parking Brake Pedal Claw
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE REAR WHEEL
SEPARATE REAR DISC BRAKE CALIPER ASSEMBLY (for 2WD) (See REPLACEMENT )
SEPARATE REAR DISC BRAKE CALIPER ASSEMBLY (for 4WD) (See REPLACEMENT )
REMOVE REAR DISC (See DISASSEMBLY )
REMOVE NO. 1 PARKING BRAKE SHOE RETURN TENSION SPRING (See DISASSEMBLY )
SEPARATE NO. 1 PARKING BRAKE SHOE ASSEMBLY (See DISASSEMBLY )
REMOVE PARKING BRAKE SHOE STRUT (See DISASSEMBLY )
SEPARATE NO. 2 PARKING BRAKE SHOE ASSEMBLY (See DISASSEMBLY )
REMOVE PARKING BRAKE SHOE ADJUSTING SCREW SET (See DISASSEMBLY )
REMOVE NO. 1 PARKING BRAKE SHOE ASSEMBLY (See DISASSEMBLY )
REMOVE NO. 2 PARKING BRAKE SHOE RETURN TENSION SPRING (See DISASSEMBLY )
REMOVE NO. 2 PARKING BRAKE SHOE ASSEMBLY WITH PARKING BRAKE SHOE LEVER (See DISASSEMBLY )
REMOVE NO. 3 PARKING BRAKE CABLE ASSEMBLY
1. Remove the 2 bolts and separate the No. 3 parking brake cable assembly from the backing plate.

  Fig 4: Identifying No. 3 Parking Brake Cable Assembly & Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

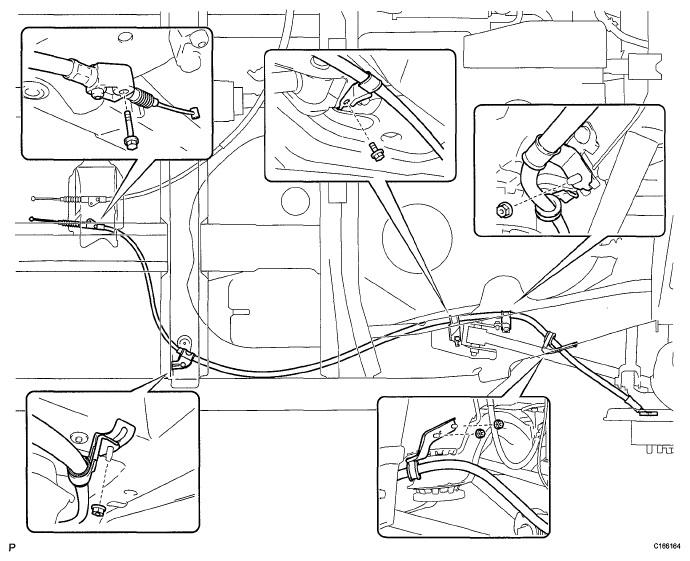

2. Remove the 2 bolts, 4 nuts, and the No. 3 parking brake cable assembly.

  Fig 5: Identifying No. 3 Parking Brake Cable Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE NO. 1 PARKING BRAKE CABLE SUPPORT BRACKET
1. Remove the No. 1 parking brake cable support bracket from the No. 3 parking brake cable assembly.

  Fig 6: Identifying No. 1 Parking Brake Cable Support Bracket
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE NO. 2 PARKING BRAKE CABLE ASSEMBLY
1. Remove the 2 bolts and separate the No. 2 parking brake cable assembly from the backing plate.

  Fig 7: Identifying Backing Plate & Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

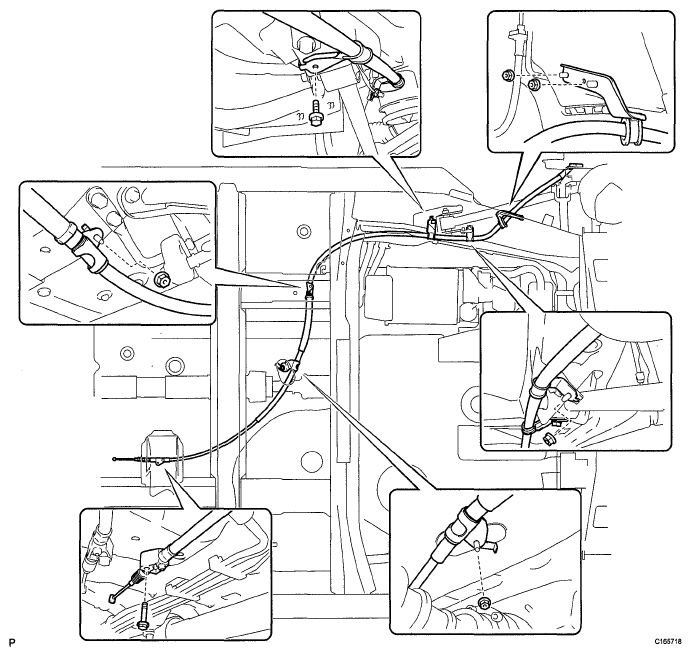

2. Remove the 2 bolts, 5 nuts, and the No. 2 parking brake cable assembly.

  Fig 8: Identifying No. 2 Parking Brake Cable Assembly, Bolts & Nuts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE PARKING BRAKE CABLE SUPPORT BRACKET
1. Remove the parking brake cable support bracket from the No. 2 parking brake cable assembly.

  Fig 9: Identifying Parking Brake Cable Support Bracket
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE CABLE SUPPORT BRACKET
1. Remove the cable support bracket from the No. 2 parking brake cable assembly.

  Fig 10: Identifying Cable Support Bracket
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
