Front Brake Pad, Brake Caliper & Brake Rotor: Components

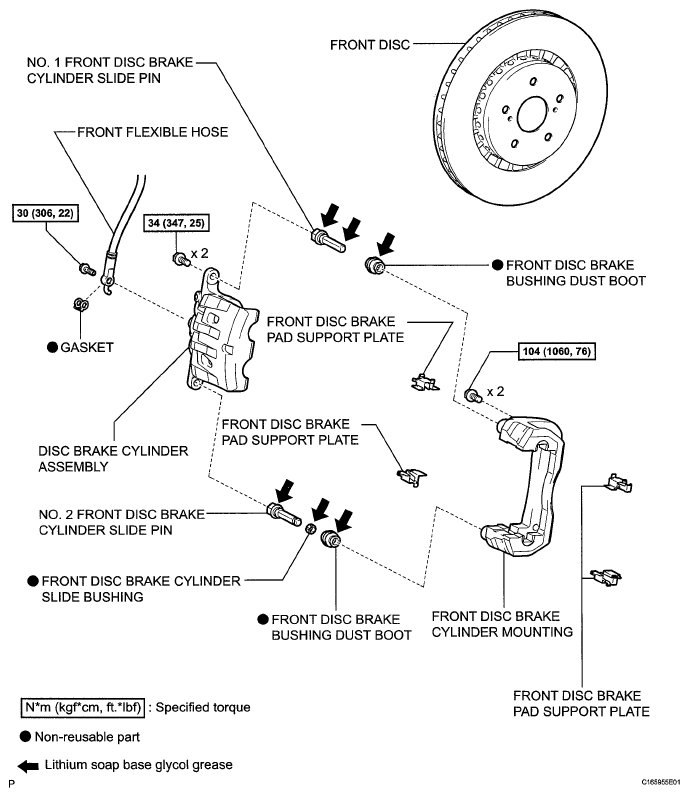

Fig 1: Identifying Front Brake Replacement Components With Torque Specifications (1 Of 2)
G05417946Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

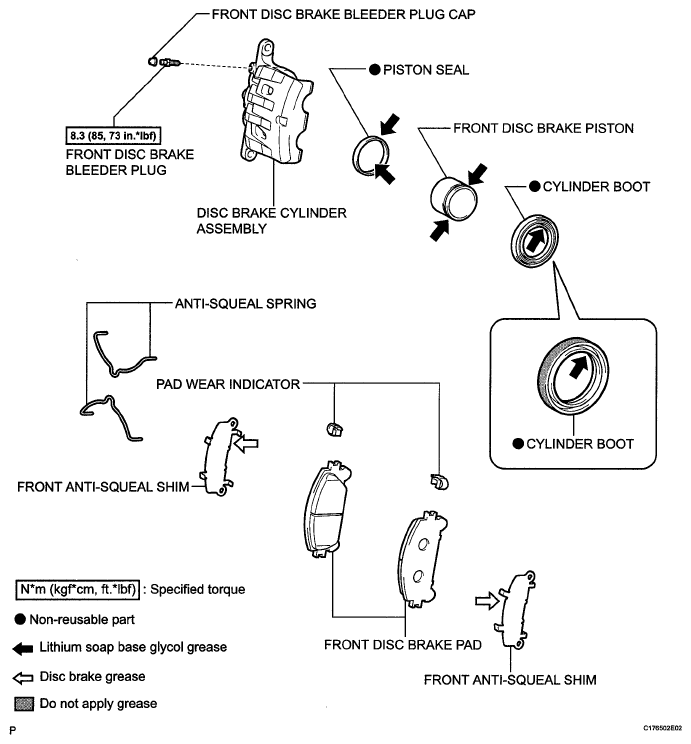

Fig 2: Identifying Front Brake Replacement Components With Torque Specifications (2 Of 2)
G05417947Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
