Front Brake Flexible Hose: Components

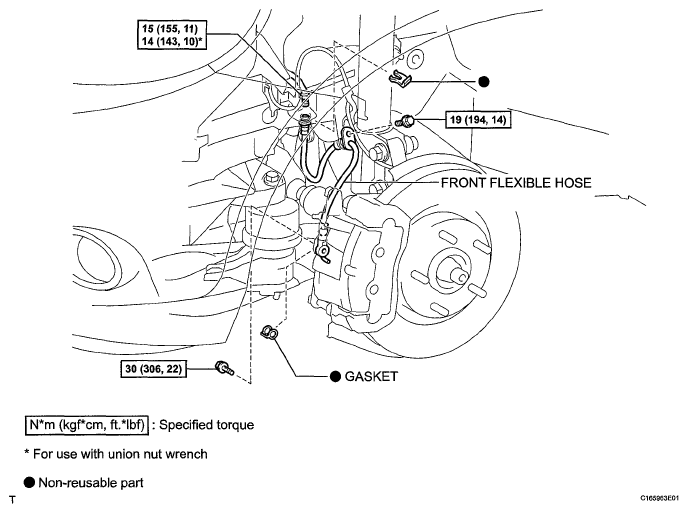

Fig 1: Front Brake Flexible Hose Replacement Components With Torque Specifications

G05417981

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
