System Diagram

HINT:

See the layout drawing to confirm the locations and tightening torque of flexible hoses and brake lines.

Fig 1: Connecting Brake Tube

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

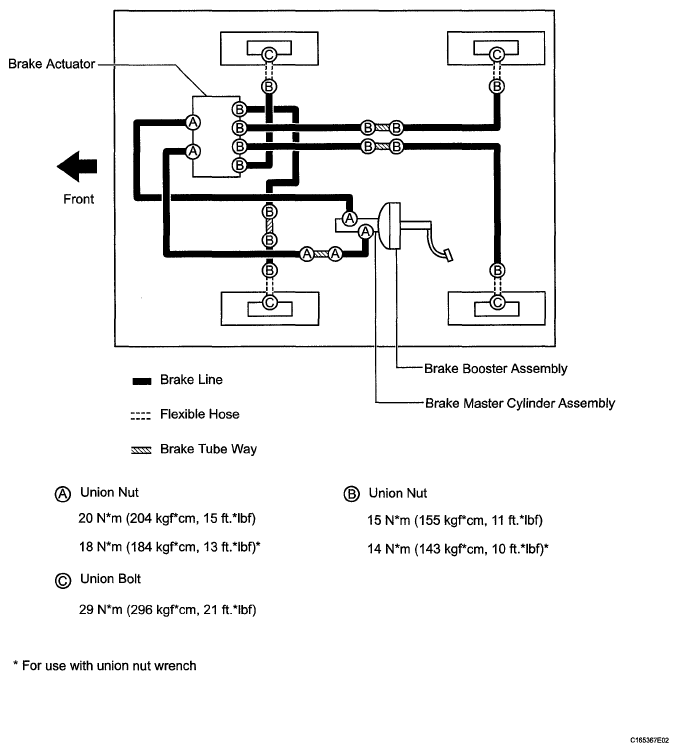

Fig 2: Identifying Brake System Diagram

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
