Brake Pedal: Components

Fig 1: Identifying Brake Pedal Replacement Components (1 Of 2)
G05417896Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

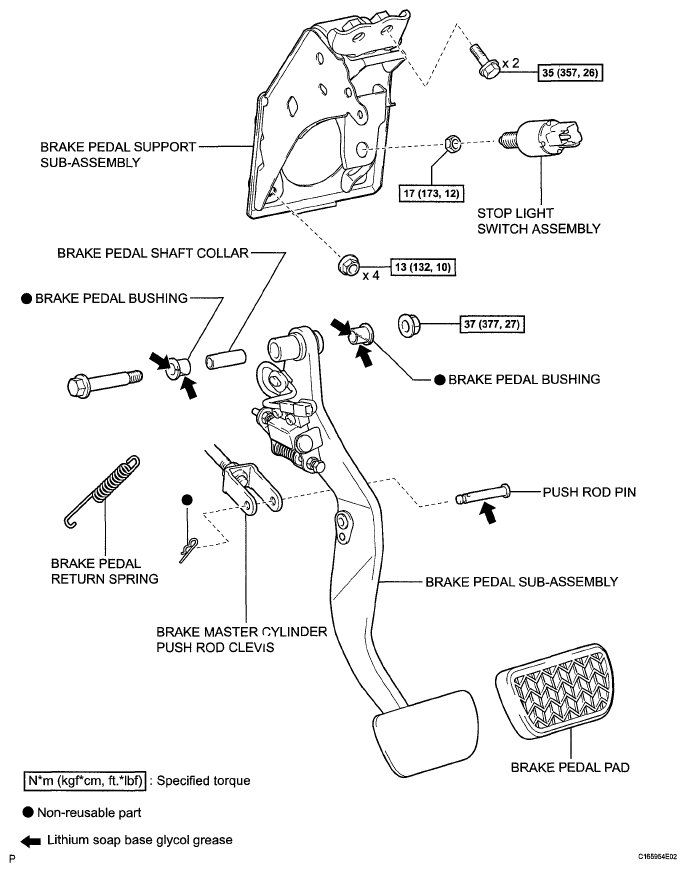

Fig 2: Identifying Brake Pedal Replacement Components (2 Of 2) With Torque Specifications
G05417897Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
