Brake Pedal: Adjustment

1. Check the brake pedal height.
   1. Turn back the carpet.
   2. Measure the shortest distance between the brake pedal surface and tibia pad.

      Pedal height from tibia pad: 148.8 to 158.8 mm (5.858 to 6.252 in.)

2. Adjust the brake pedal height.
   1. Disconnect the stop light switch connector.
   2. Remove the stop light switch assembly.
   3. Loosen the push rod clevis lock nut.
   4. Adjust the brake pedal height by turning the push rod.
   5. Tighten the push rod clevis lock nut.

      Torque: 26 N*m (265 kgf*cm, 19 ft.*lbf)

   6. Install and adjust the stop light switch (See INSTALLATION ).
      NOTE: Do not depress the brake pedal.
   7. Connect the stop light switch connector.

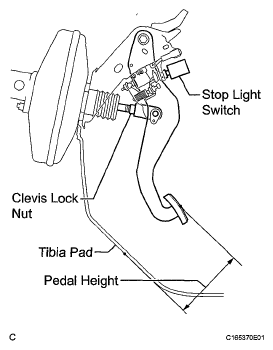

   Fig 1: Identifying Brake Pedal Height

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Stop the engine. Depress the pedal several times until no vacuum is left in the brake booster. Release the brake pedal.
2. Depress the pedal until a slight resistance is felt. Measure the distance as shown below.

   Pedal free play: 1.0 to 6.0 mm (0.039 to 0.236 in.)

   If the pedal free play is not as specified, check the stop light switch clearance (See INSTALLATION ). If the pedal free play is as specified, proceed to  3 .

Fig 2: Identifying Brake Pedal Free Play

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

HINT:

Measure the distance at the same point used for the brake pedal height inspection.

1. Release the parking brake lever.
2. With the engine running, depress the brake pedal and measure the pedal reserve distance as shown below.

   Pedal reserve distance from the tibia pad at 500 N (51 kgf, 112 lbf): 84.4 mm (3.32 in.)

   If the distance is not as specified, troubleshoot the brake system (See PROBLEM SYMPTOMS TABLE  ).

   Fig 3: Depressing Brake Pedal & Measuring Brake Pedal Reserve Distance

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
