Brake Booster: Components

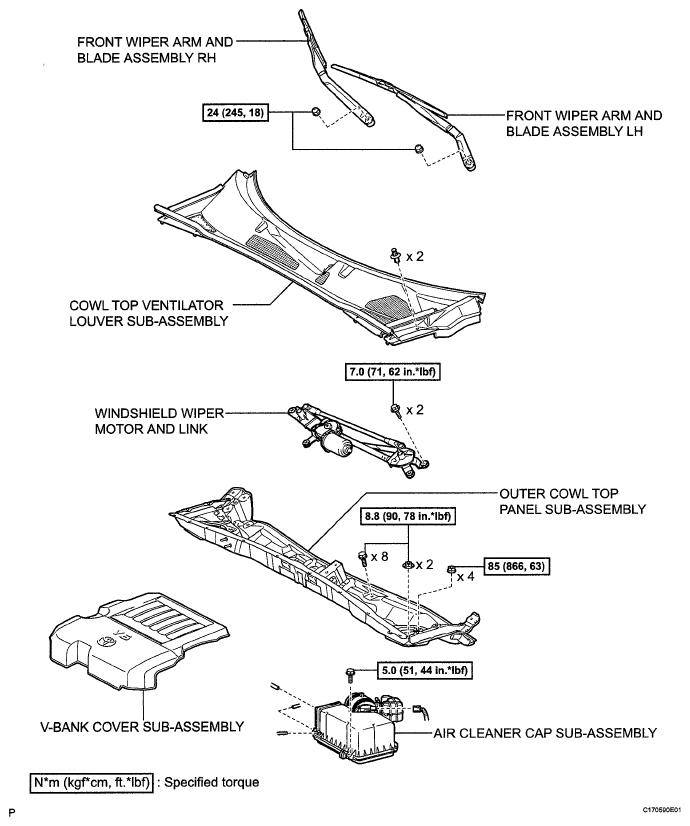

Fig 1: Identifying Brake Booster Replacement Components With Torque Specifications (1 Of 3)
G05417928Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Identifying Brake Booster Replacement Components With Torque Specifications (2 Of 3)
G05417915Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

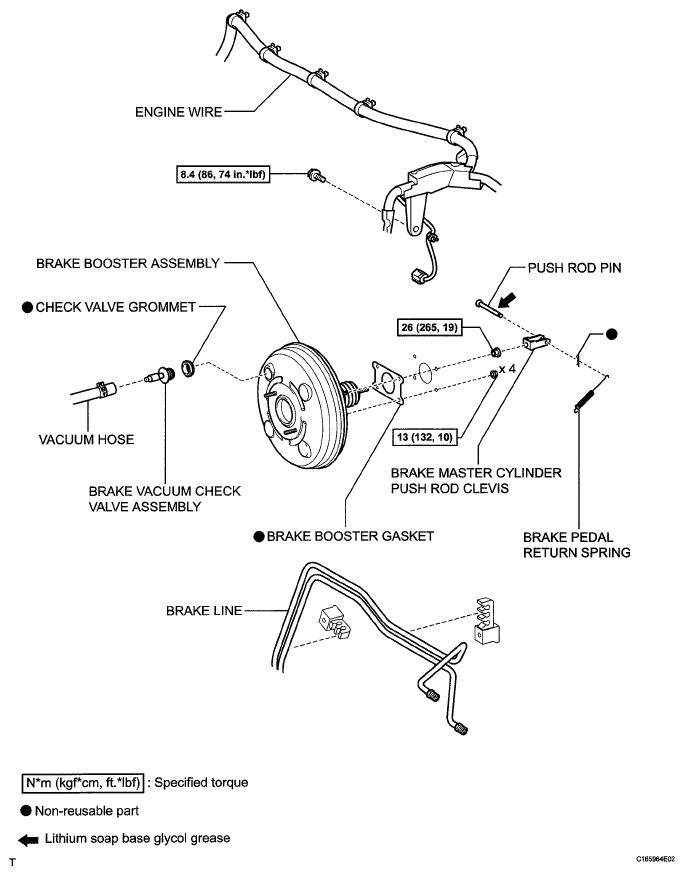

Fig 3: Identifying Brake Booster Replacement Components With Torque Specifications (3 Of 3)
G05417930Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
