REAR NO. 1 SEAT ASSEMBLY (for RH Side): Removal

REMOVE REAR SEAT HEADREST ASSEMBLY
1. Press the headrest support button and pull up the headrest to its highest position as shown below.

  Fig 1: Pressing Headrest Support Button For Pulling Up Headrest
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Insert a finger or screwdriver into the hole to release the lock. Pull the headrest up as shown below to remove it.

  Fig 2: Pulling Headrest Up
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE REAR SEAT TRACK BRACKET COVER
1. Disengage the 8 claws and remove the 2 rear seat track bracket covers.

  Fig 3: Identifying Claws On Rear Seat Track Bracket Covers
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE REAR OUTER TRACK BRACKET COVER
1. Disengage the 4 claws and remove the rear outer track bracket cover.

  Fig 4: Identifying Claws On Rear Outer Track Bracket Cover
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE REAR INNER TRACK BRACKET COVER
1. Disengage the 4 claws and remove the rear inner track bracket cover.

  Fig 5: Identifying Claws On Rear Inner Track Bracket Cover
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE REAR SEAT LEG SIDE COVER
1. Disengage the 3 claws.
2. Disengage the clip and remove the rear seat leg side cover.
DISCONNECT REAR NO. 1 SEAT LOCK CABLE ASSEMBLY (w / Remote Folding Function)

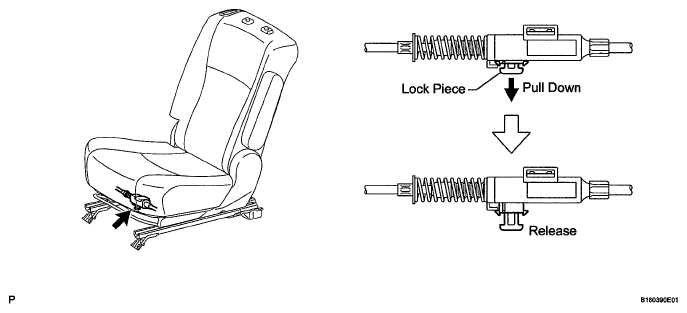

1. Pull down the adjuster's lock piece to release the lock as shown below.

  Fig 7: Pulling Down Adjuster Lock Piece To Releasing Lock
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Using a screwdriver wrapped with protective tape, disengage the 2 claws as shown below.

  Fig 8: Disengaging Claws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

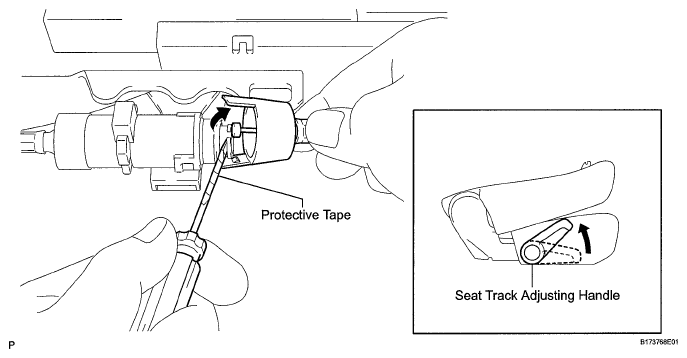

3. Lift up the seat track adjusting handle to the upper most position and hold the handle in this position as shown below.

  Fig 9: Lifting Up Seat Track Adjusting Handle To Uppermost Position
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Using a screwdriver wrapped with protective tape, disconnect the rear No. 1 seat lock cable assembly as shown below.

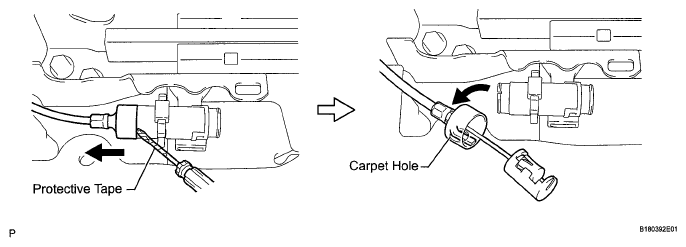

5. Using a screwdriver wrapped with protective tape, disconnect the rear seat reclining control cable as shown below.
6. Secure the rear seat reclining control cable with the carpet hole as shown below.
REMOVE REAR NO. 1 SEAT ASSEMBLY
1. Remove the 3 bolts on the rear side of the seat.

  Fig 11: Identifying Bolts On Rear Side Of Seat
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Remove the 2 bolts on the front side of the seat and the rear No. 1 seat assembly.
  NOTE: Be careful not to damage the vehicle body.

  Fig 12: Identifying Bolts On Front Side Of Seat & Rear No. 1 Seat Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
