Steering Pad Switch: Inspection

INSPECT STEERING PAD SWITCH

Measure the resistance according to the value(s) in the table below.

Standard resistance

TESTER CONNECTION SPECIFIED CONDITION TABLE

Tester Connection	Condition	Specified Condition
Z2-7 (DISP) - Z2-8 (EAU)	DISP switch is not pushed in	10 kΩ or higher
Z2-7 (DISP) - Z2-8 (EAU)	DISP switch is pushed in	Below 1 Ω

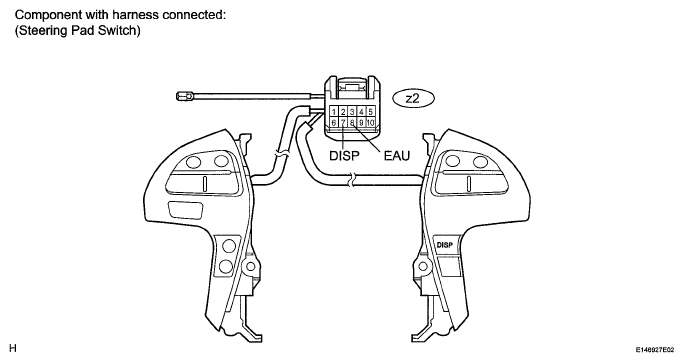

Fig 1: Identifying Steering Pad Switch Connector Terminal

HINT:

If the value is not as specified, replace the steering pad switch (See REMOVAL ).
