Speed Signal Circuit: Wiring Diagram

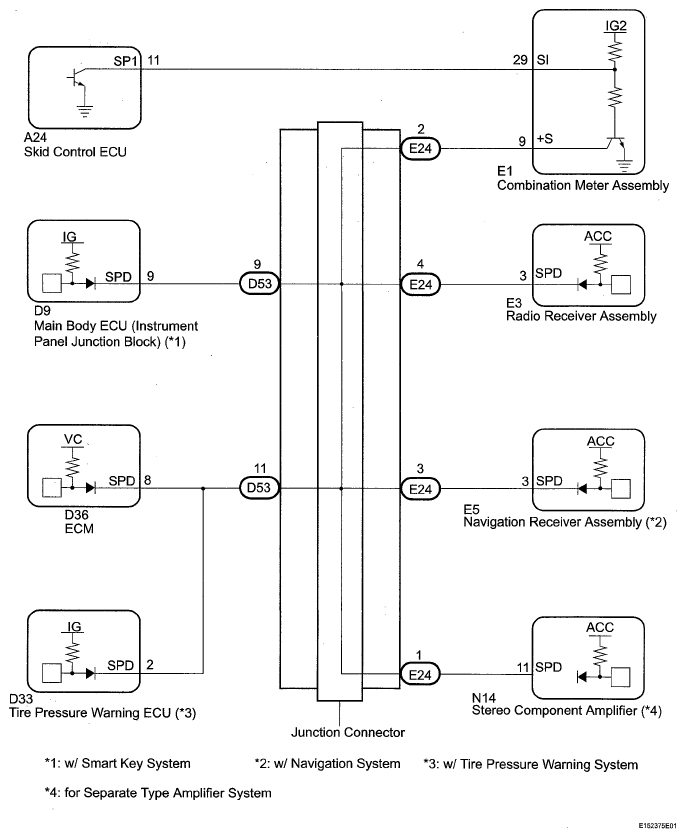

Fig 1: Identifying Speed Signal Circuit Wiring Diagram

G05413763

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
