Fuel Receiver Gauge Malfunction: Wiring Diagram

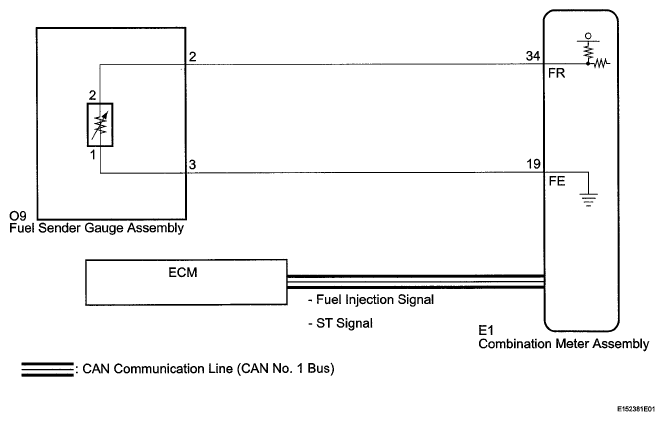

Fig 1: Identifying Fuel Receiver Gauge Malfunction Wiring Diagram

G05420387

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
