Instrument Panel Safety Pad: Components

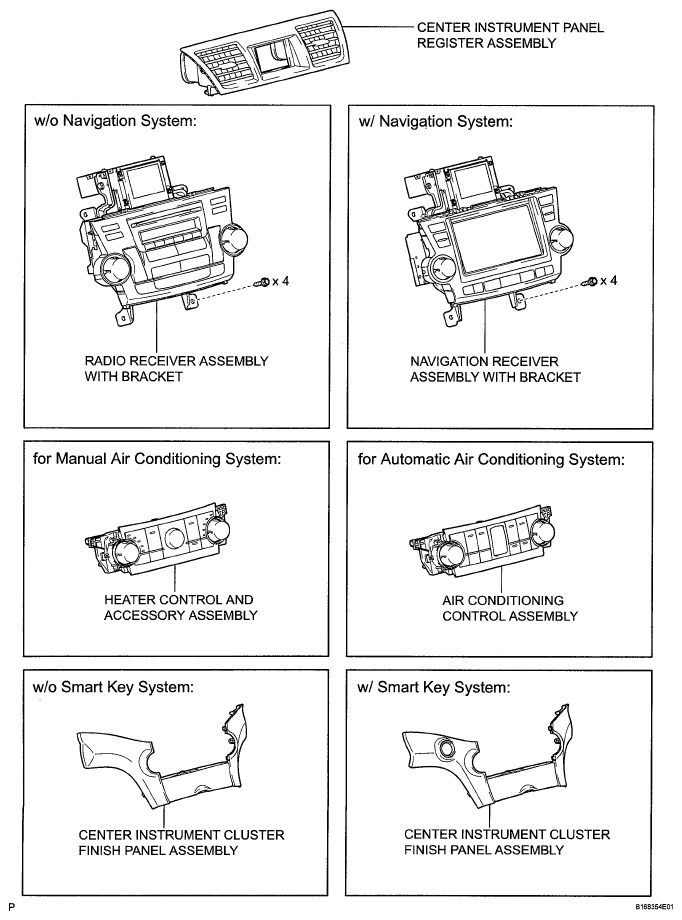

Fig 1: Identifying Instrument Panel Safety Pad Replacement Components (1 Of 10)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

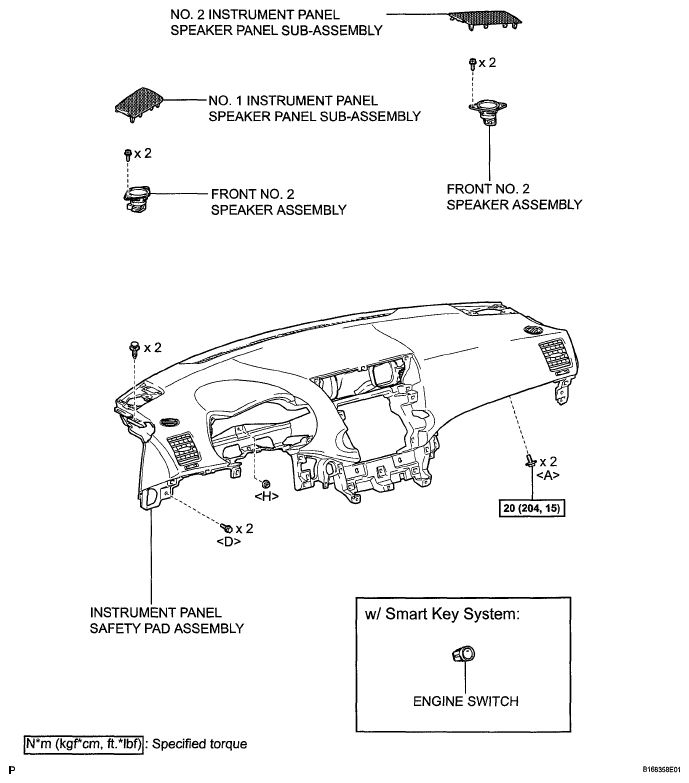

Fig 2: Identifying Instrument Panel Safety Pad Replacement Components (2 Of 10)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

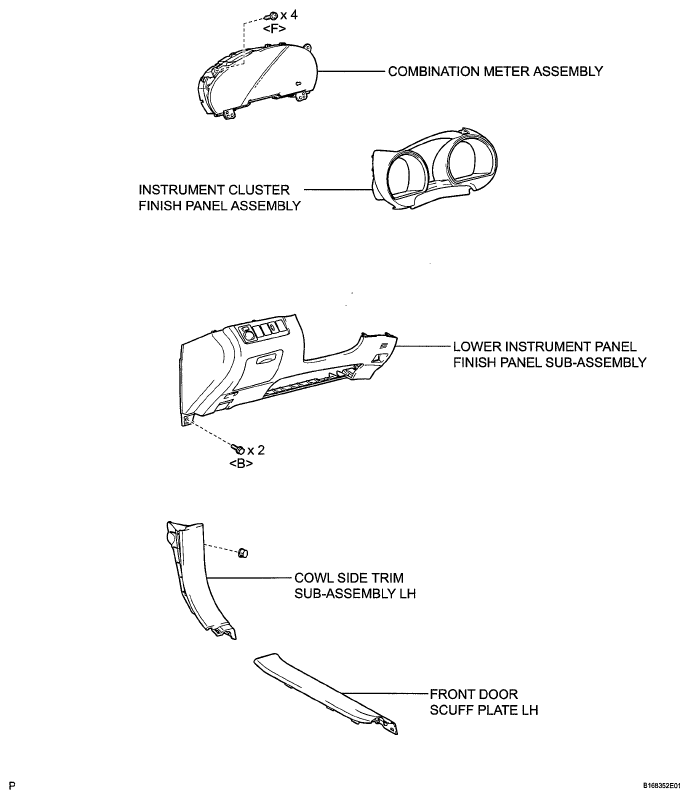

Fig 3: Identifying Instrument Panel Safety Pad Replacement Components (3 Of 10)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

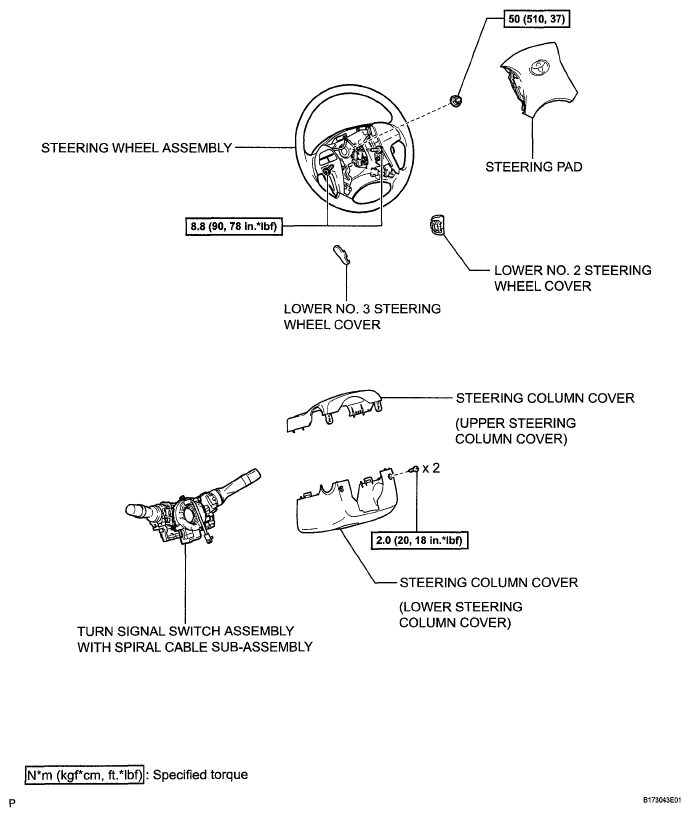

Fig 4: Identifying Instrument Panel Safety Pad Replacement Components (4 Of 10)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

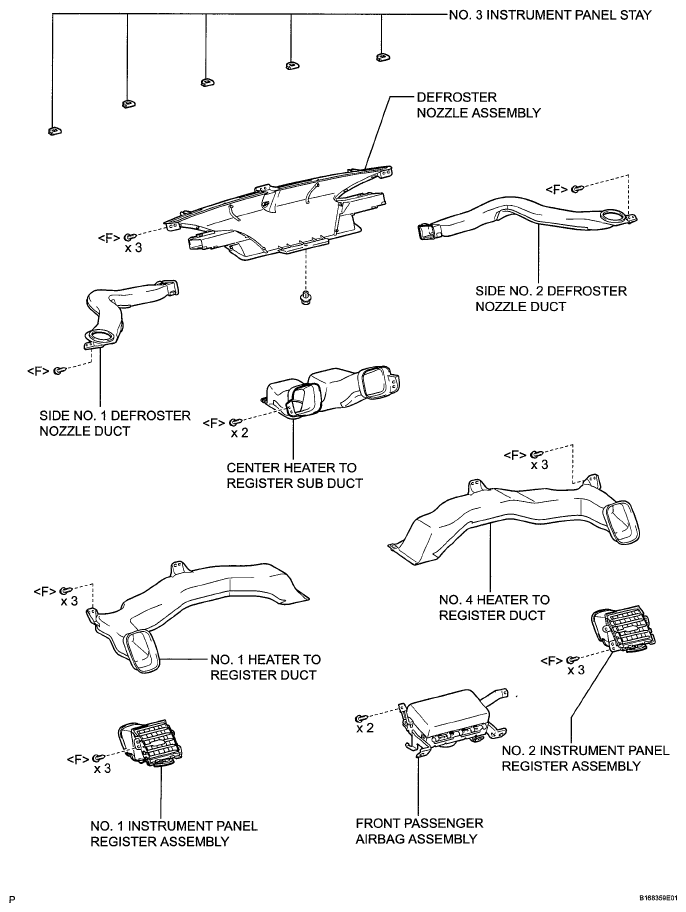

Fig 5: Identifying Instrument Panel Safety Pad Replacement Components (5 Of 10)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

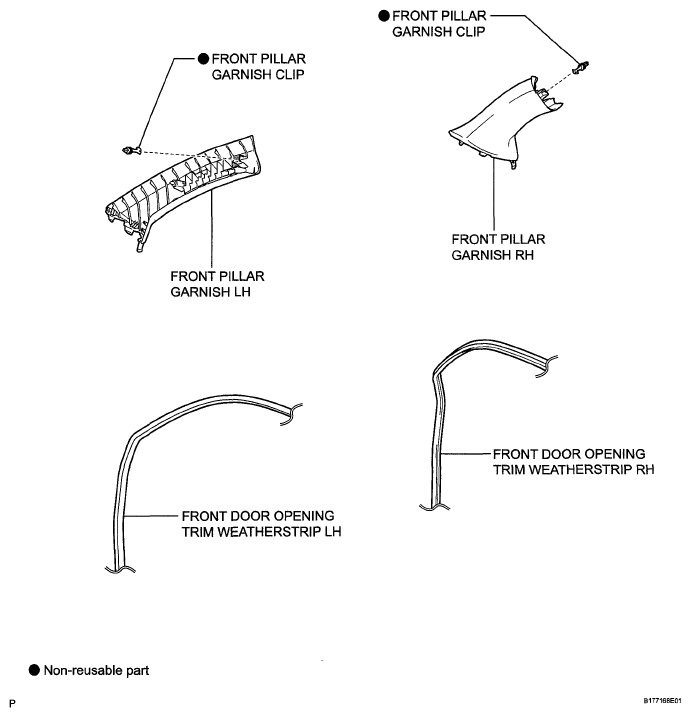

Fig 6: Identifying Instrument Panel Safety Pad Replacement Components (6 Of 10)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

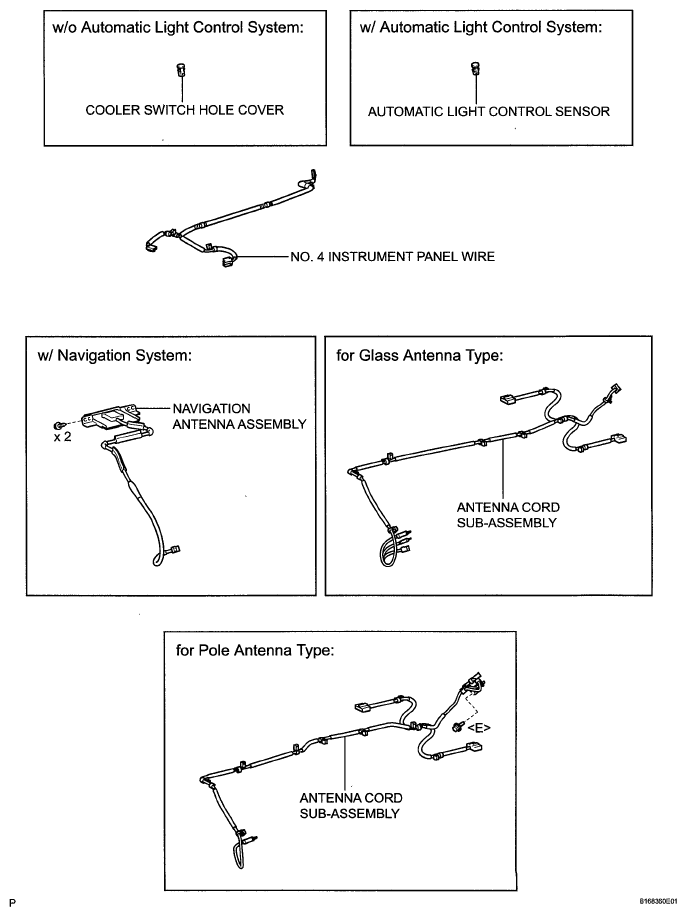

Fig 7: Identifying Instrument Panel Safety Pad Replacement Components (7 Of 10)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

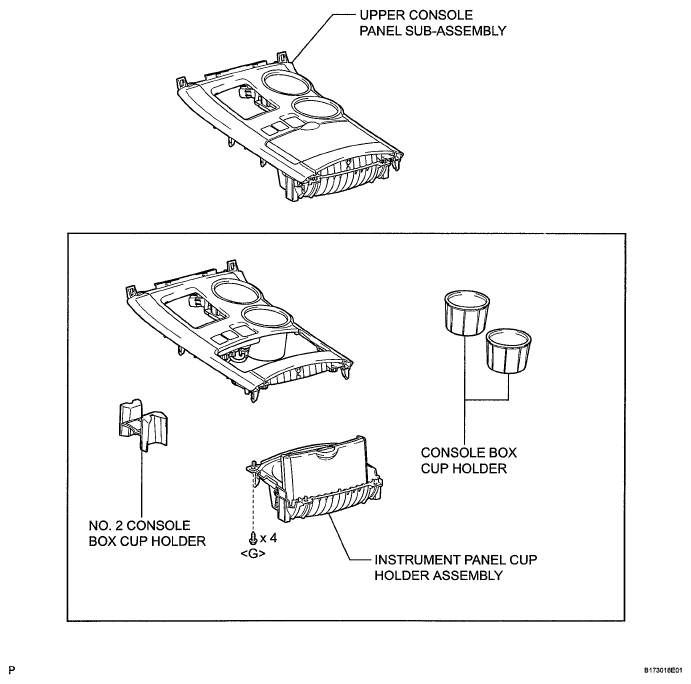

Fig 8: Identifying Instrument Panel Safety Pad Replacement Components (8 Of 10)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 9: Identifying Instrument Panel Safety Pad Replacement Components (9 Of 10)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 10: Identifying Instrument Panel Safety Pad Replacement Components (10 Of 10)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
