Timing Chain: Removal

WARNING: This page is about a different car, the 2007 Toyota RAV4. However, it is still accessible from the selected car via links, so may be relevant.

DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
CAUTION: Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation.
REMOVE RADIATOR SUPPORT OPENING COVER
REMOVE FRONT WHEEL RH
REMOVE NO. 1 ENGINE UNDER COVER
REMOVE FRONT FENDER APRON RH

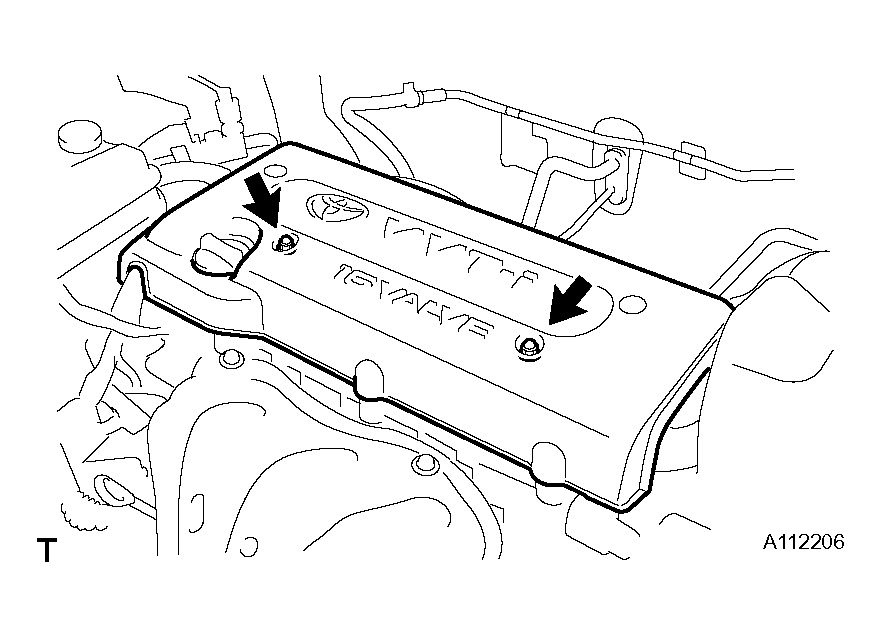

REMOVE NO. 1 ENGINE COVER
1. Remove the 2 nuts and cover.

  Fig 1: Removing Nuts And Cover
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
DRAIN ENGINE OIL (see appropriate step(s) under REPLACEMENT )
REMOVE FRONT EXHAUST PIPE (see EXHAUST (2AZ-FE) )
REMOVE FRONT SUSPENSION MEMBER REINFORCEMENT RH (see appropriate step(s) under REMOVAL )
REMOVE FAN AND GENERATOR V BELT (see appropriate step(s) under REMOVAL )
REMOVE GENERATOR ASSEMBLY (see REMOVAL )
REMOVE RADIATOR RESERVOIR

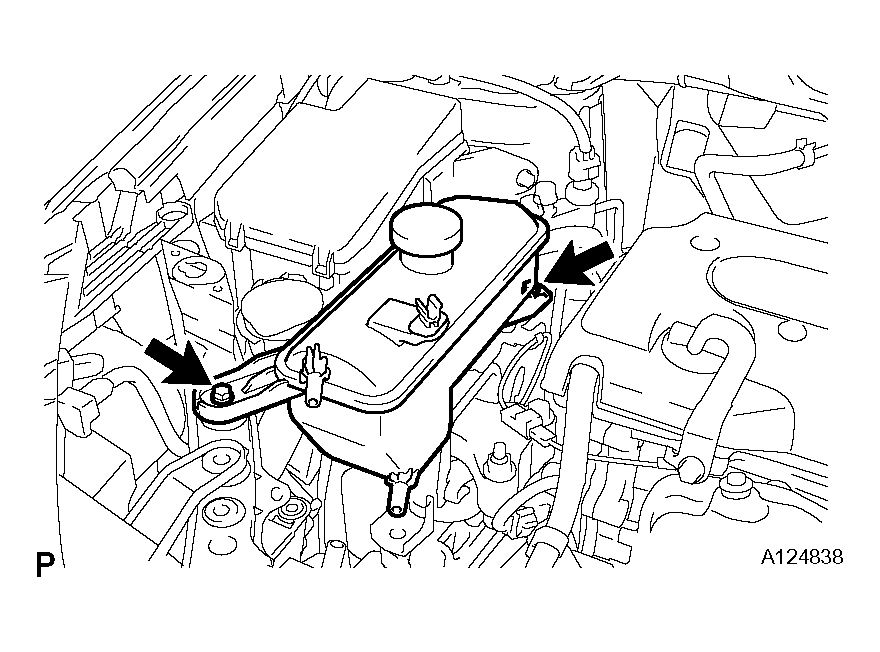

1. Remove the 2 bolts and radiator reservoir.

  Fig 2: Removing Bolts And Radiator Reservoir
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

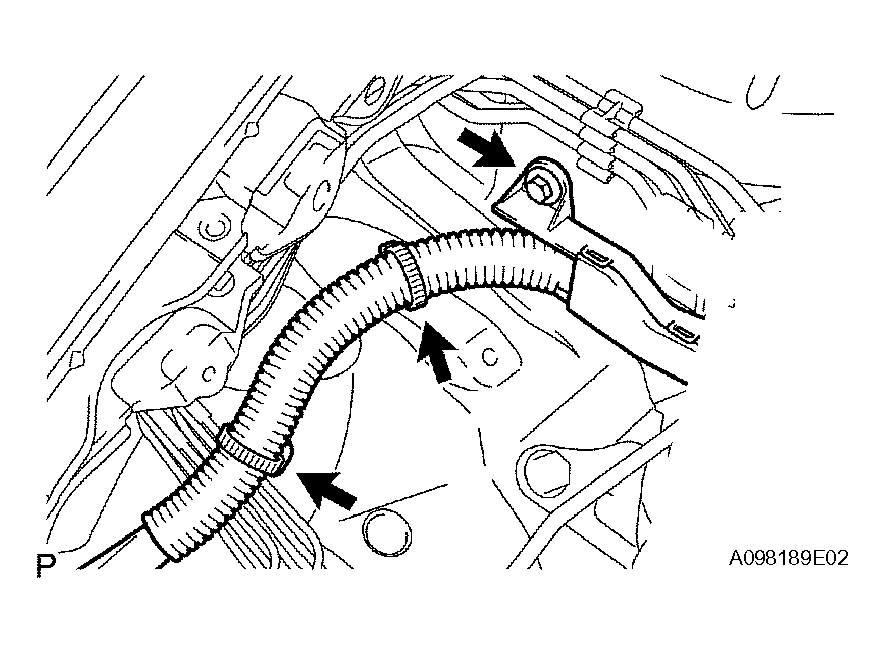

REMOVE ENGINE MOUNTING INSULATOR RH
1. Remove the bolt of the wire harness protector.
2. Disconnect the 2 clamps of the engine wire.

  Fig 3: Disconnecting Clamps Of Engine Wire
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Place a transmission jack underneath the engine, then put a wooden block on the jack.

  Fig 4: Putting Wooden Block On Jack
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

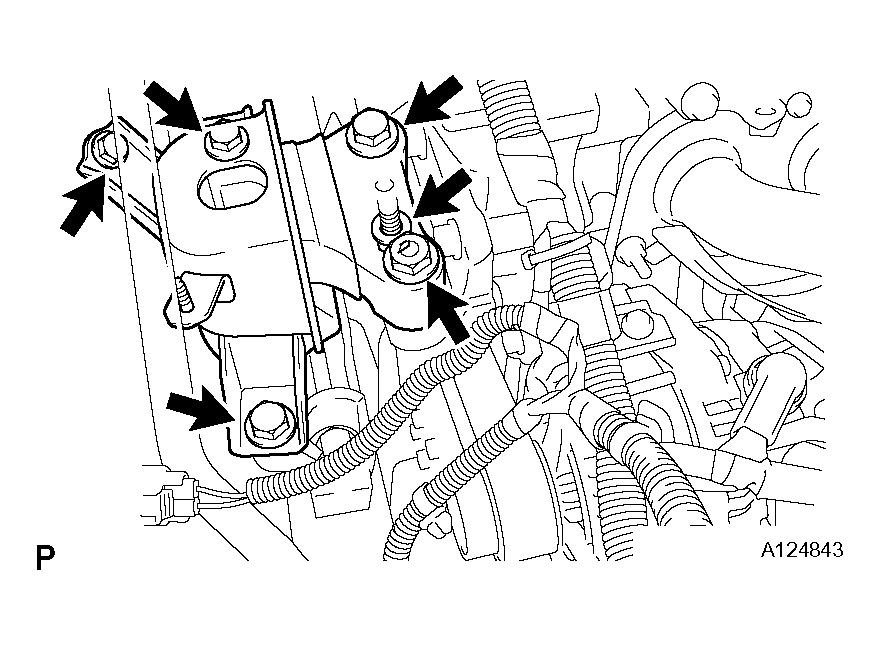

4. Remove the 4 bolts, 2 nuts and engine mounting insulator RH.
  NOTE: Do not apply excessive force to the return tube when removing the engine mounting insulator RH.

  HINT:

  Keep clearance by lowering the engine using the transmission jack when removing the engine mounting insulator FR.

  Fig 5: Removing Engine Mounting Insulator RH
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE ENGINE MOUNTING INSULATOR FR

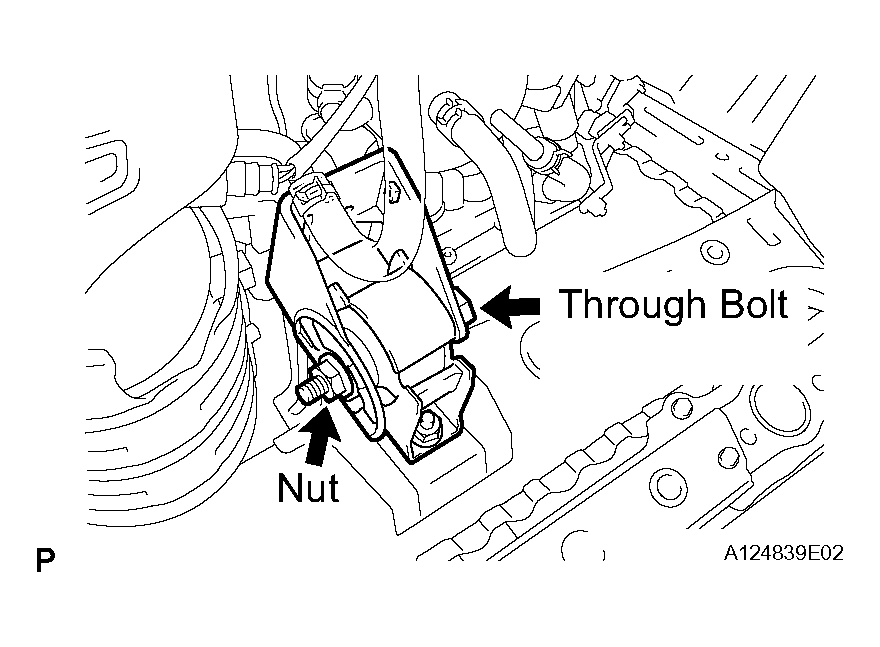

1. Remove the through bolt and nut.

  Fig 6: Removing Through Bolt And Nut
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

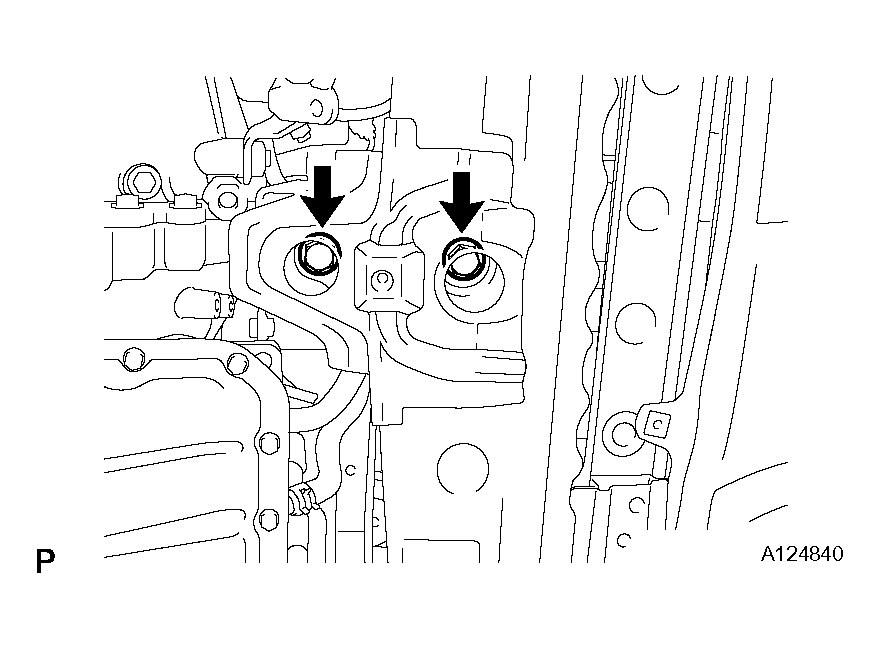

2. Remove the 2 bolts and engine mounting insulator FR.
  HINT:

  Keep clearance by lowering the engine using the transmission jack when removing the engine mounting insulator FR.

  Fig 7: Removing Engine Mounting Insulator FR
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE IDLER PULLEY

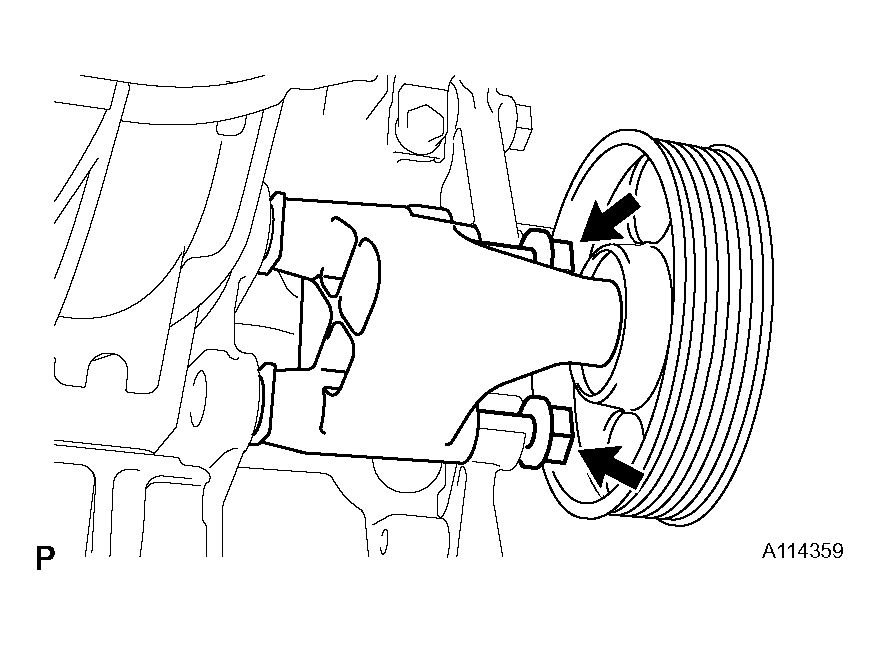

1. Loosen the 2 bolts and remove the idler pulley with the 2 bolts.

  Fig 8: Removing Idler Pulley
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE IGNITION COIL ASSEMBLY (see REMOVAL )
REMOVE SPARK PLUG (see appropriate step(s) under ADJUSTMENT )
REMOVE CYLINDER HEAD COVER SUB-ASSEMBLY

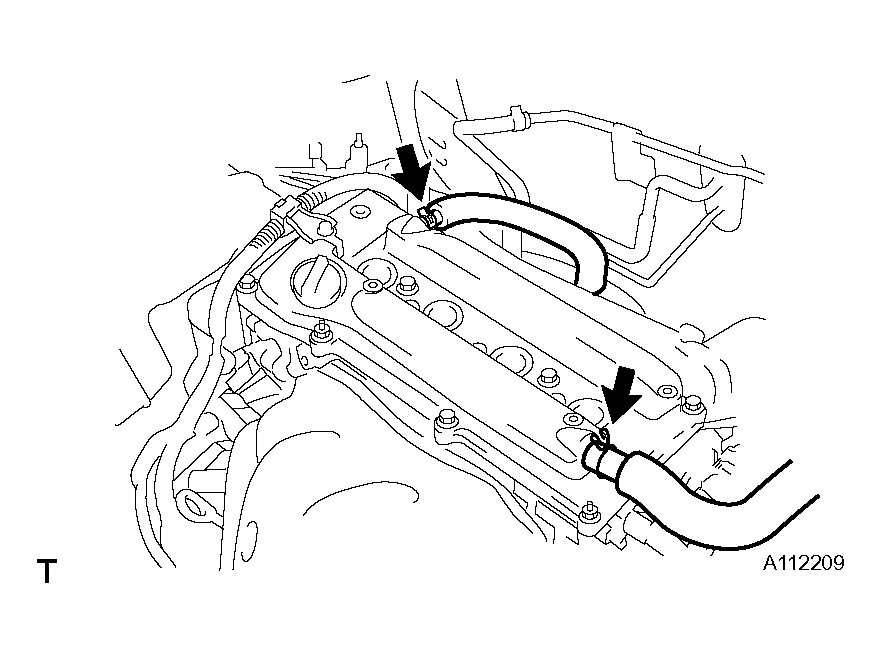

1. Disconnect the 2 ventilation hoses form the cylinder head cover.

  Fig 9: Disconnecting Ventilation Hoses Form Cylinder Head Cover
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

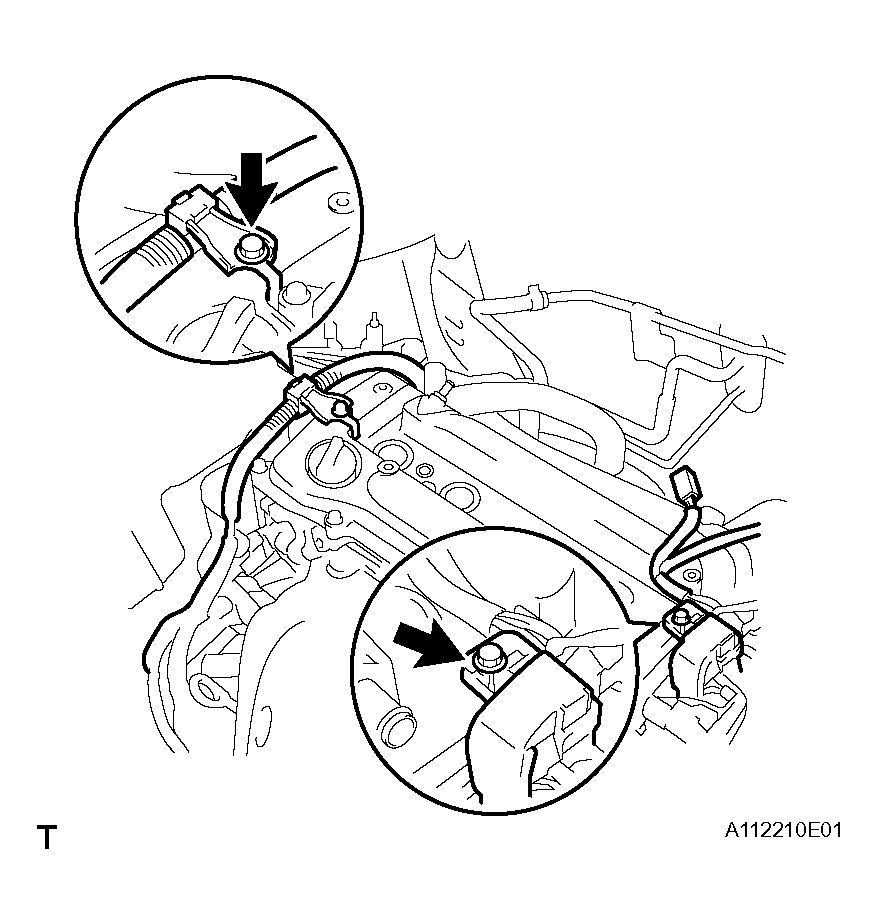

2. Remove the 2 bolts and disconnect the 2 engine wires.

  Fig 10: Removing Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

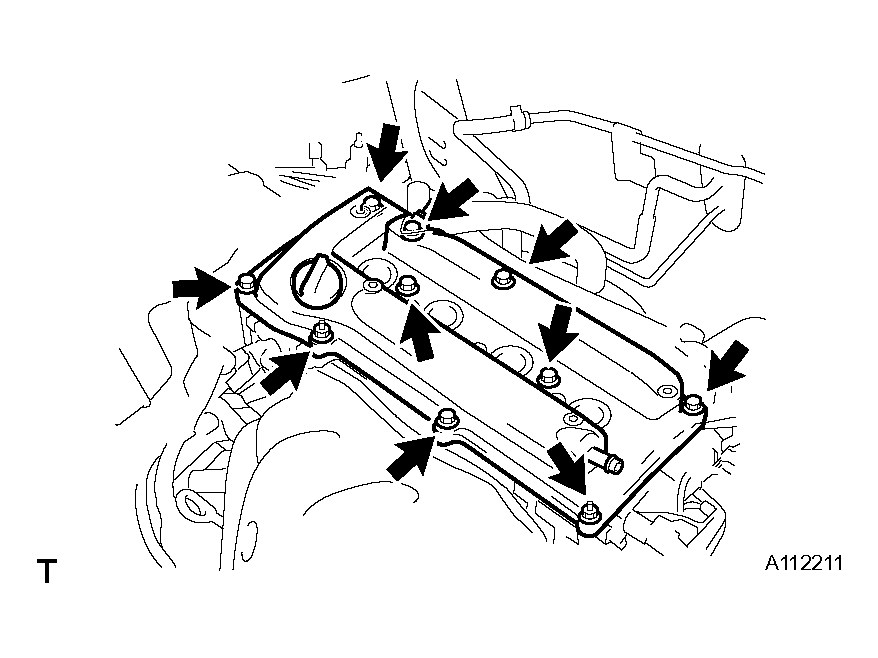

3. Remove the 8 bolts, 2 nuts and cylinder head cover.

  Fig 11: Removing Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

REMOVE OIL PAN SUB-ASSEMBLY

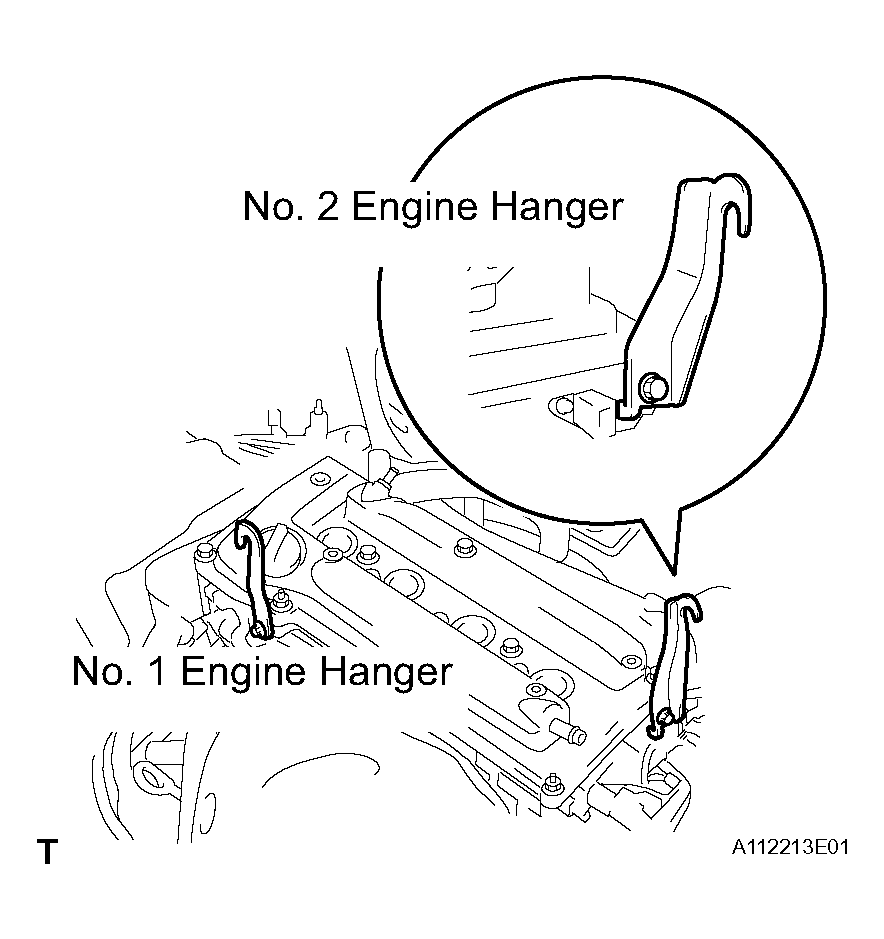

Install the No. 1 and No. 2 engine hangers with the bolts.

Torque: 38 N*m (387 kgf*cm, 28 ft.*lbf)

Part No.

ENGINE HANGER PART NO. REFERENCE

Item	Part No.
No. 1 engine hanger	12281-28010
No. 2 engine hanger	12282-28010
Bolt	91512-61020

Attach the sling device to the engine hangers and chain block.

Fig 12: Identifying Engine Hangers
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Insert the blade of SST between the crankcase, chain cover and oil pan, then cut off the applied sealer and remove the oil pan.
SST 09032-00100

NOTE: Be careful not to damage the contact surface of the crankcase, chain cover and oil pan.

Fig 14: Removing Oil Pan
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

SET NO. 1 CYLINDER TO TDC/COMPRESSION

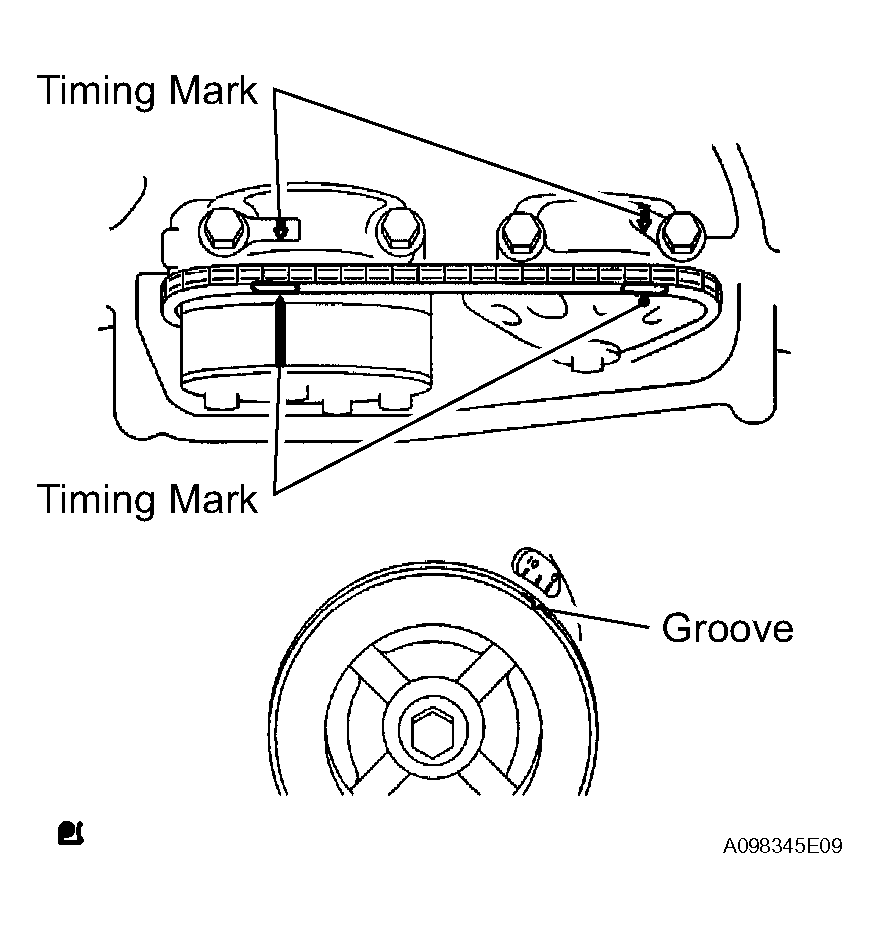

1. Turn the crankshaft pulley until its groove and the timing mark "0" of the timing chain cover are aligned.
2. Check that each timing mark of the camshaft timing gear and sprocket is aligned with each timing mark located on the No. 1 and No. 2 bearing caps as shown in Fig 15.
  If not, turn the crankshaft by 1 revolution (360°) to align the timing marks as above.

  Fig 15: Checking Timing Marks Of Camshaft Timing Gear And Sprocket
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE CRANKSHAFT PULLEY

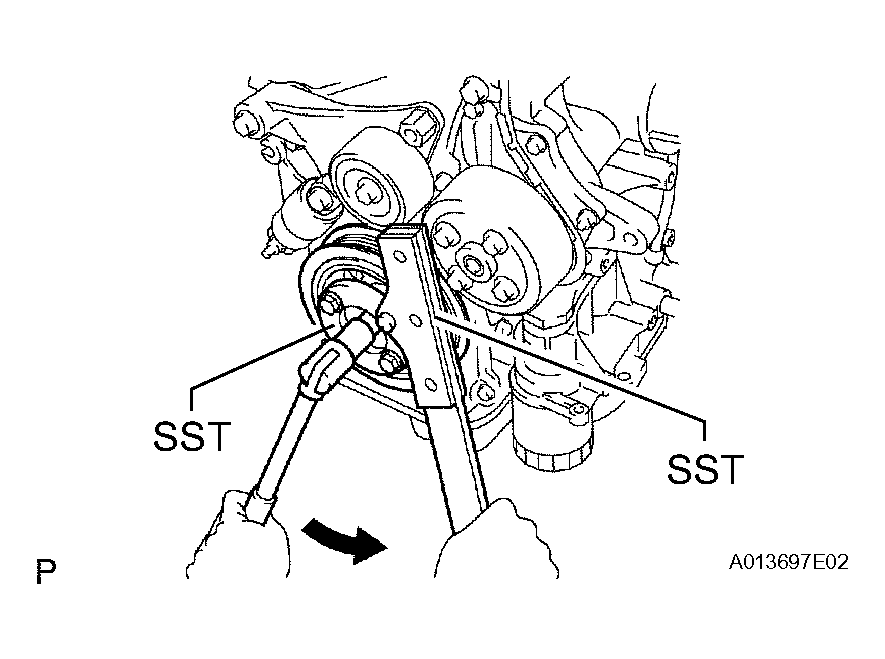

1. Using SST, fix the pulley in place and loosen the pulley bolt.
  SST 09213-54015 (91651-60855), 09330-00021

  Fig 16: Loosening Pulley Bolt
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

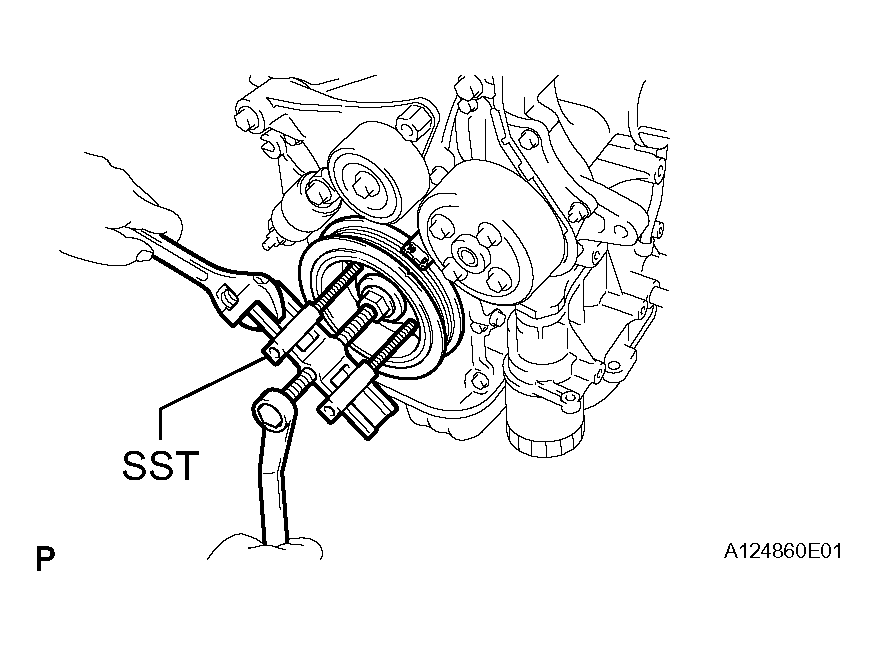

2. Remove the crankshaft pulley.
  HINT:

  If necessary, remove the pulley and pulley bolt using SST.

  SST 09950-50013 (09951-05010, 09952-05010, 09953-05020, 09954-05021), 09950-40011 (09957-04010)

  Fig 17: Removing Crankshaft Pulley
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE NO. 1 CHAIN TENSIONER ASSEMBLY
1. Remove the 2 nuts, chain tensioner and gasket.
  NOTE: Do not turn the crankshaft without the chain tensioner.

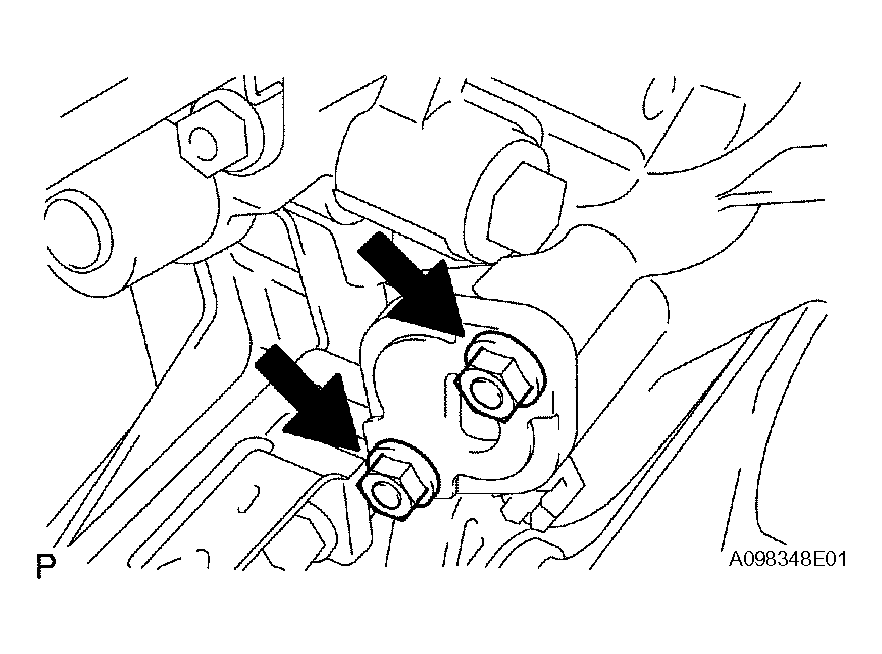

  Fig 18: Removing No. 1 Chain Tensioner Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

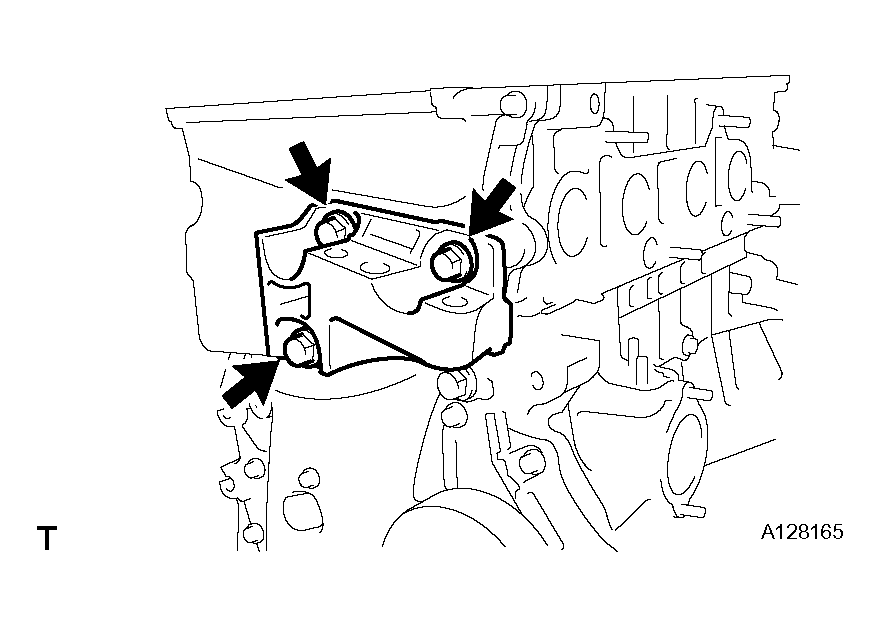

REMOVE ENGINE MOUNTING BRACKET RH
1. Remove the 3 bolts and engine mounting bracket RH.

  Fig 19: Removing Engine Mounting Bracket
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE V-RIBBED BELT TENSIONER ASSEMBLY
1. Lift the engine upward using the transmission jack.
  NOTE: Do not lift the engine more than necessary.

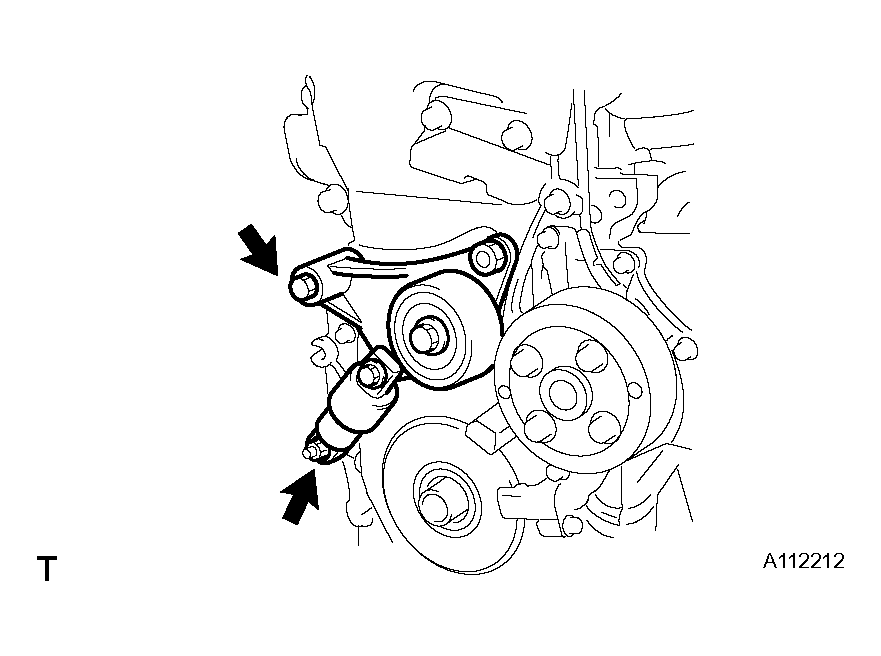

2. Remove the bolt, nut and V-ribbed belt tensioner.
REMOVE CRANKSHAFT POSITION SENSOR (see REMOVAL )

Fig 20: Removing Crankshaft Position Sensor
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE TIMING CHAIN COVER SUB-ASSEMBLY

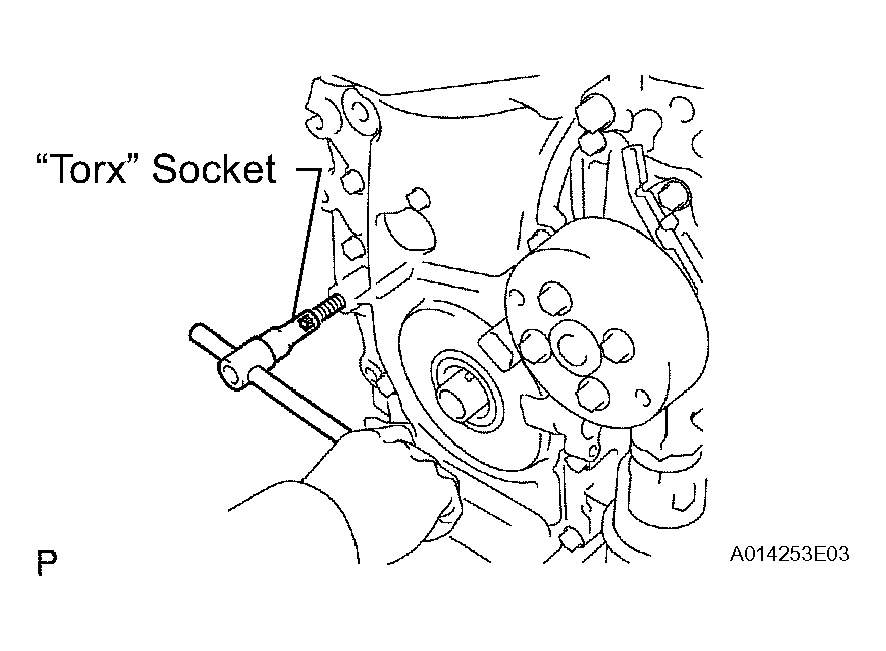

1. Using an E10 "Torx" socket, remove the stud bolt for the V-ribbed belt tensioner.

  Fig 21: Removing Stud Bolt For V-Ribbed Belt Tensioner
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

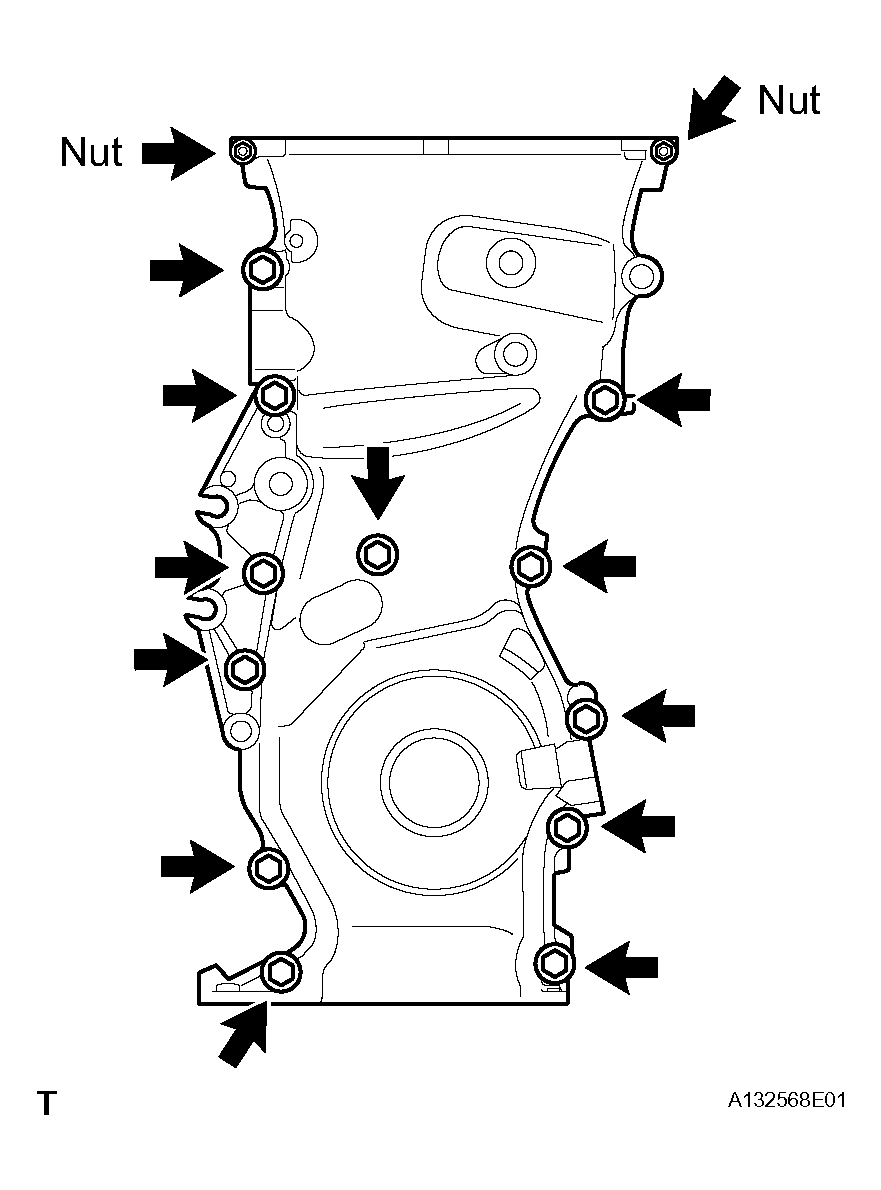

2. Remove the 12 bolts and 2 nuts.

  Fig 22: Removing Timing Chain Cover Bolts And Nuts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

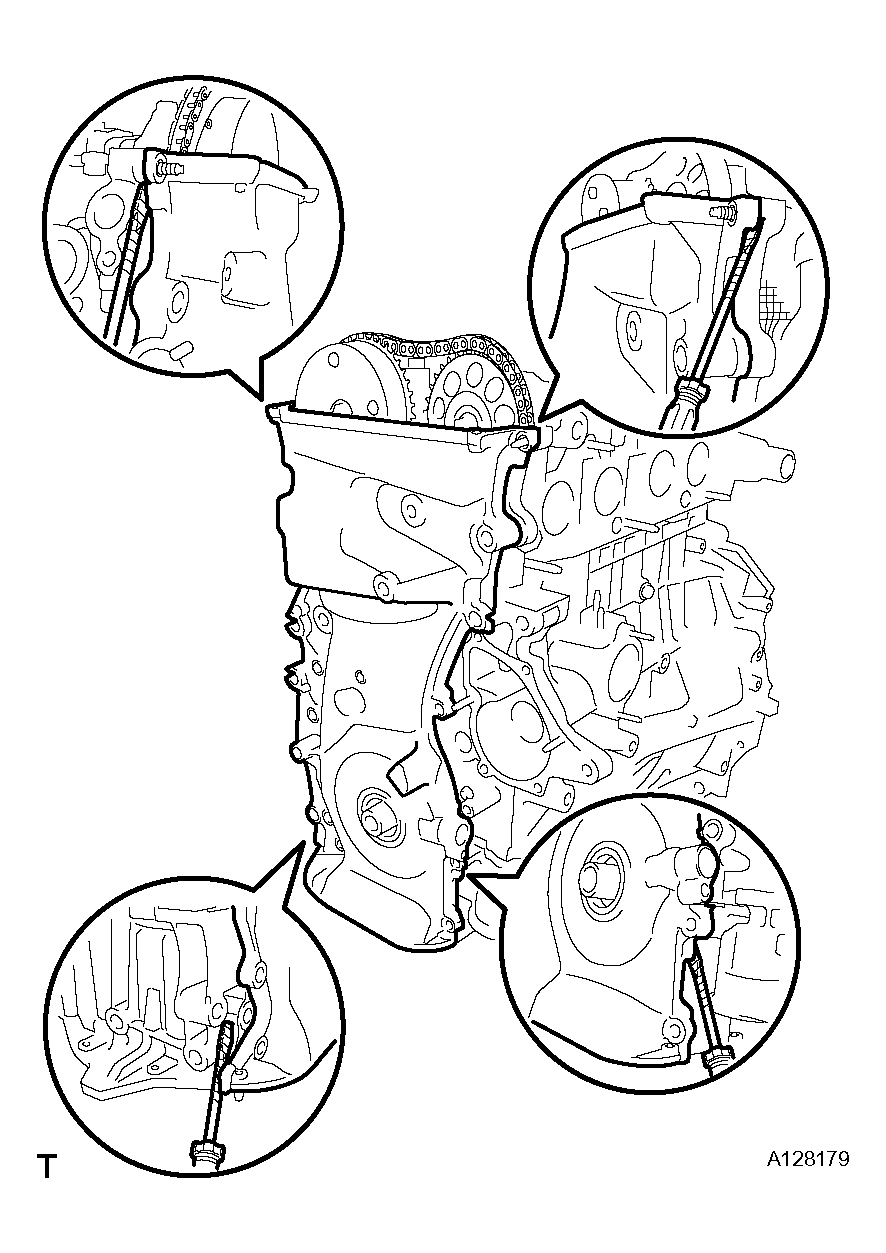

3. Remove the timing chain cover by prying the portions between the timing chain cover, cylinder head and cylinder block with a screwdriver.
  NOTE: Be careful not to damage the contact surfaces of the timing chain cover, cylinder head and cylinder block.

  Fig 23: Removing Timing Chain Cover
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE NO. 1 CRANKSHAFT POSITION SENSOR PLATE

Fig 24: Removing Crankshaft Position Sensor Plate
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE TIMING CHAIN GUIDE
1. Remove the bolt and timing chain guide.

  Fig 25: Removing Bolt And Timing Chain Guide
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

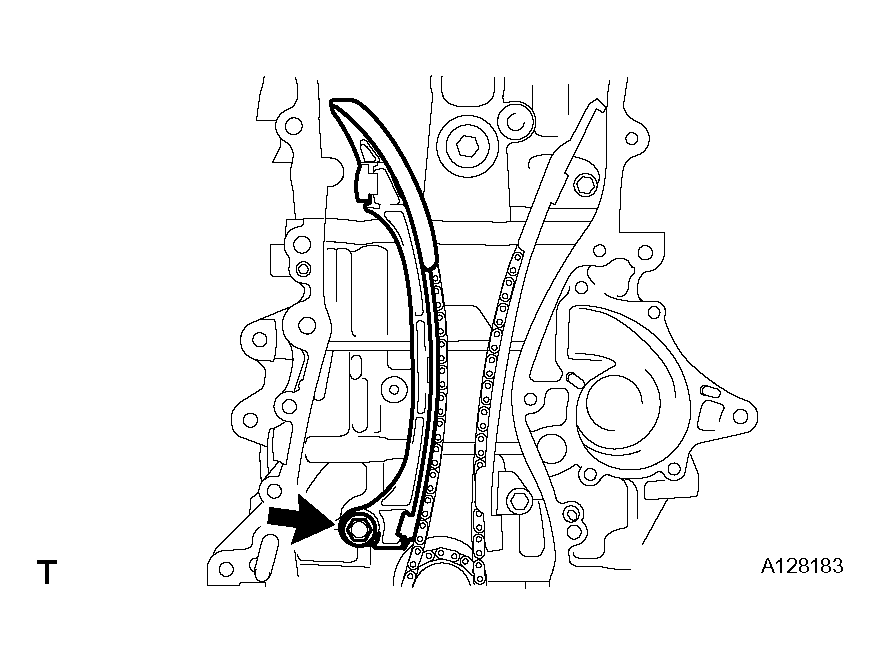

REMOVE CHAIN TENSIONER SLIPPER
1. Remove the bolt and chain tensioner slipper.

  Fig 26: Removing Chain Tensioner Slipper
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

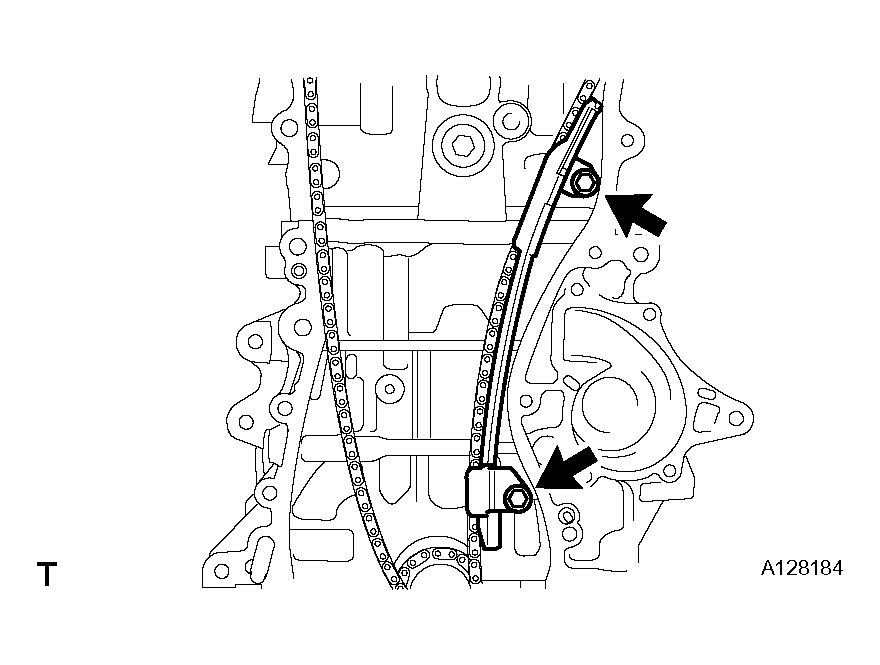

REMOVE NO. 1 CHAIN VIBRATION DAMPER
1. Remove the 2 bolts and chain vibration damper.

  Fig 27: Removing Chain Vibration Damper
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

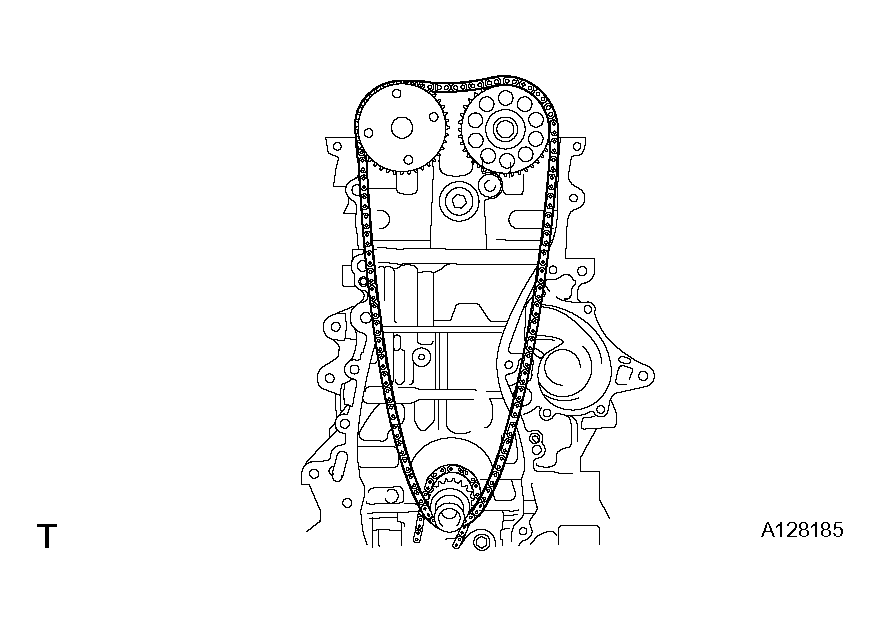

REMOVE CRANKSHAFT TIMING SPROCKET

Fig 29: Removing Crankshaft Timing Sprocket
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE NO. 2 CHAIN SUB-ASSEMBLY

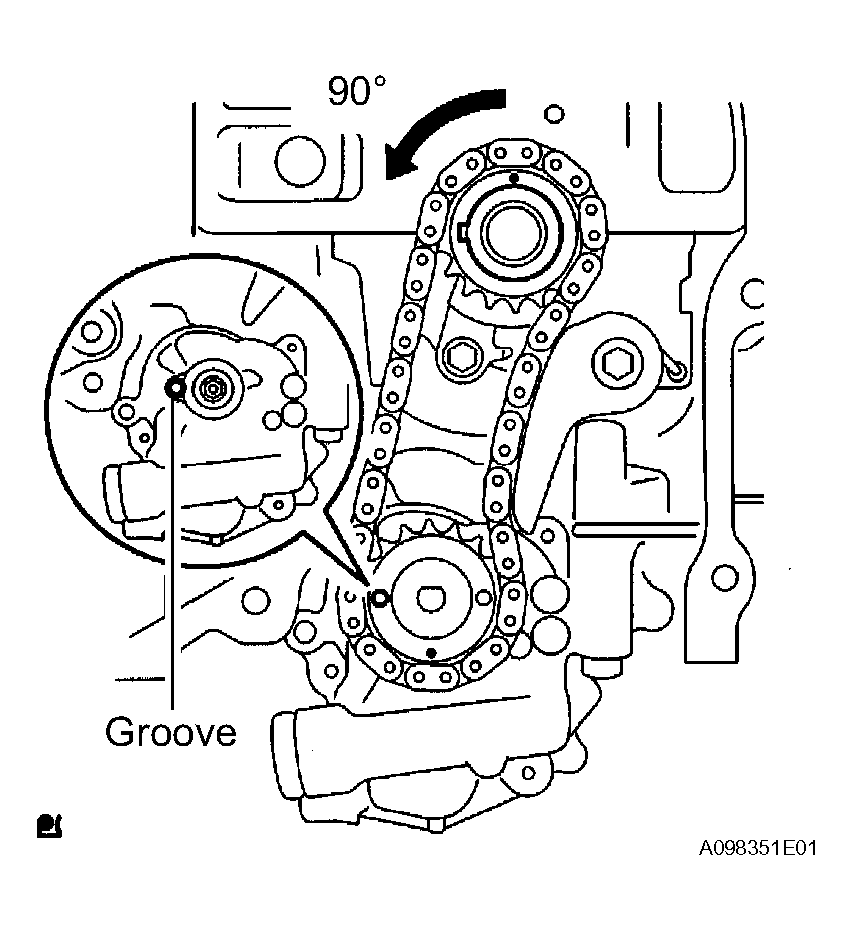

1. Turn the crankshaft by 90° counterclockwise to align the adjusting hole of the oil pump drive shaft sprocket with the groove of the oil pump.

  Fig 30: Removing Chain Sub-Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

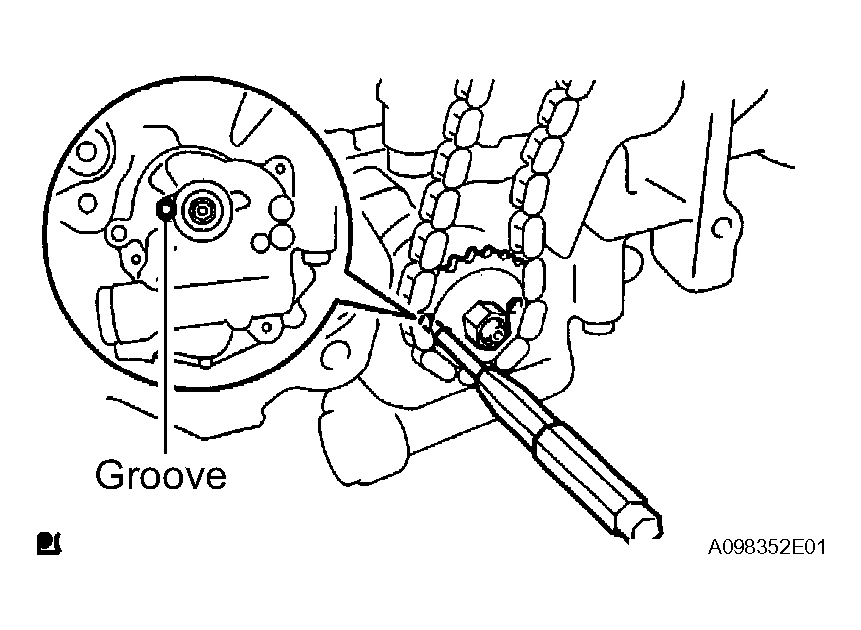

2. Insert a 4 mm diameter bar into the adjusting hole of the oil pump drive shaft sprocket to lock the gear in position, and then remove the nut.

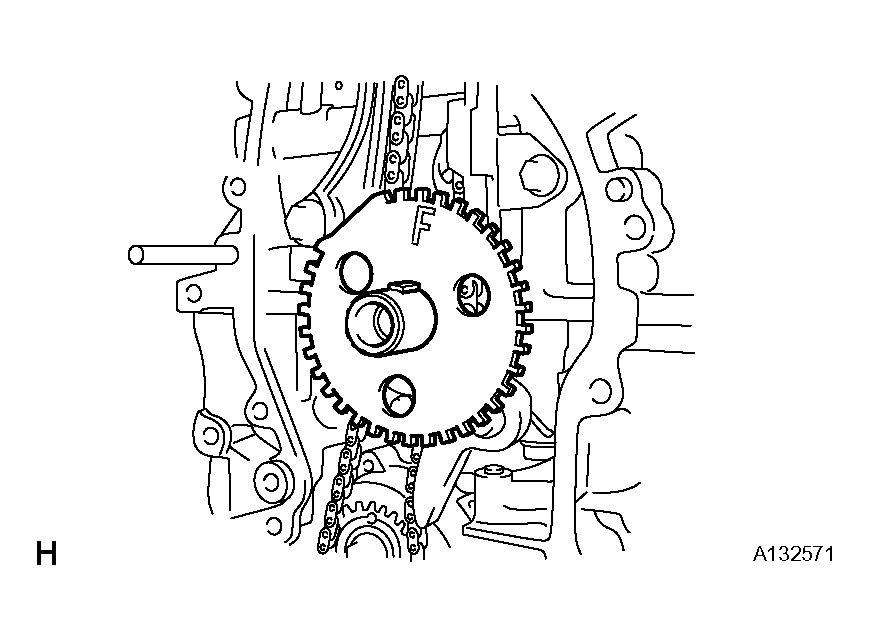

  Fig 31: Inserting 4 mm Diameter Bar Into Adjusting Hole Of Oil Pump Drive Shaft Sprocket
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

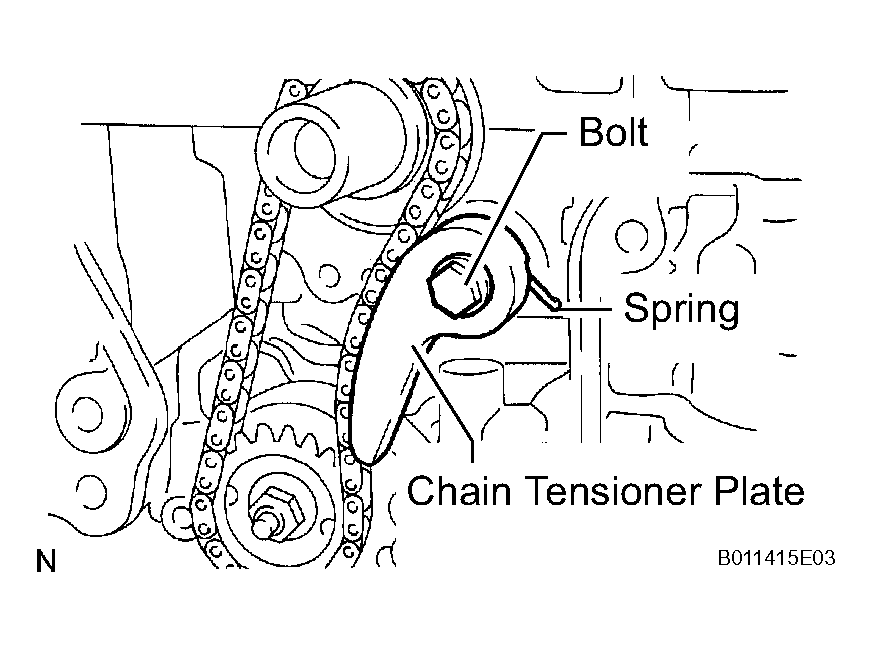

3. Remove the bolt, chain tensioner plate and spring.

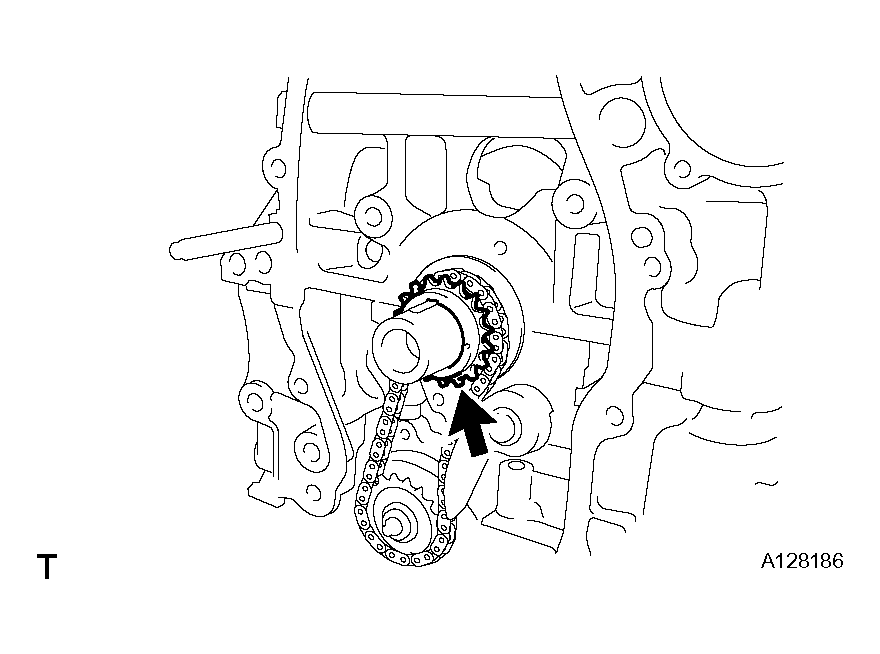

4. Remove the oil pump drive sprocket, oil pump drive shaft sprocket and No. 2 chain.

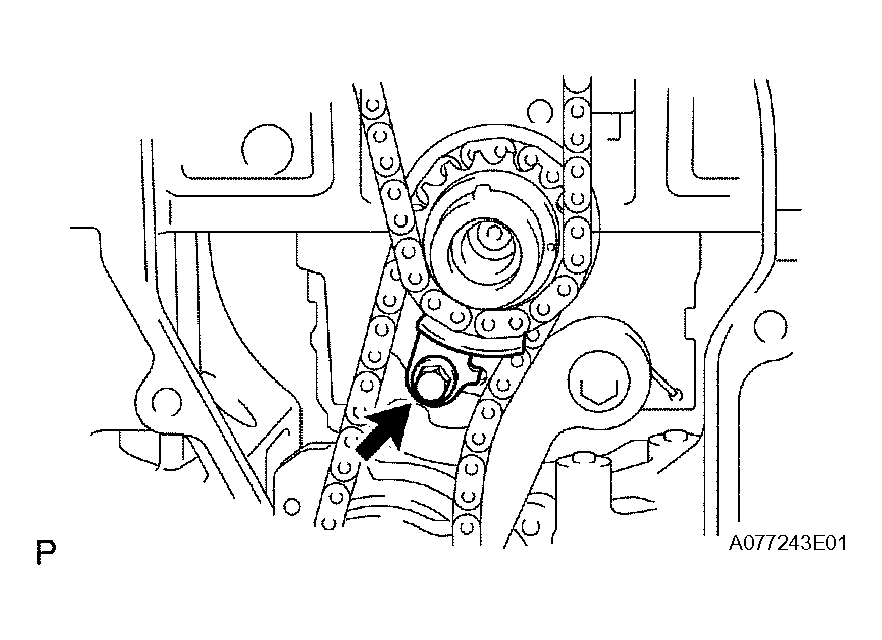

  Fig 32: Removing Chain Tensioner Plate And Spring
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
