Section 94 (Meter)
>>
Meter / Gauge System
>>
Parts Location
Parts Location
WARNING:
This page is about a different car, the 2007 Toyota RAV4. However, it is still accessible from the selected car via links, so may be relevant.

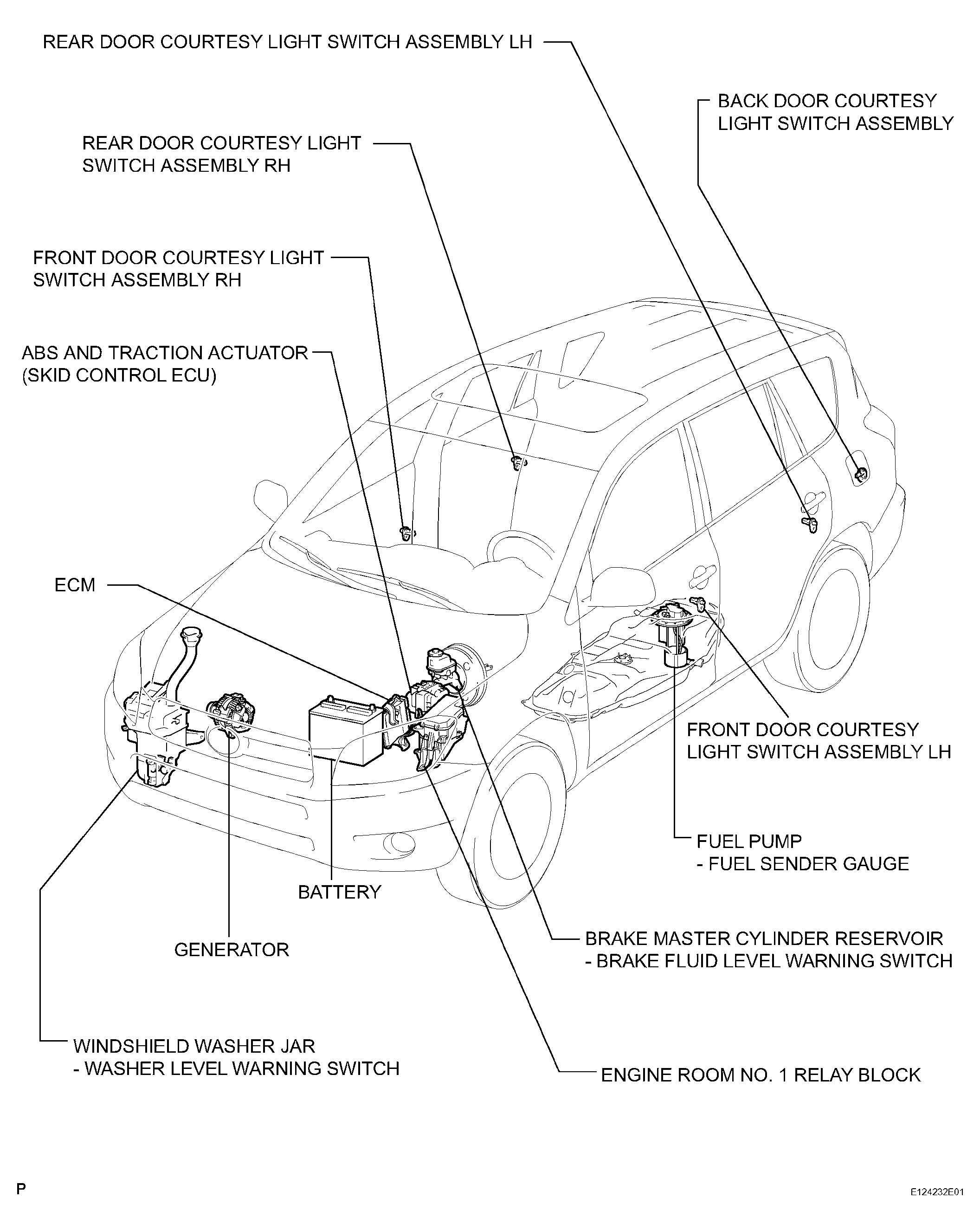

Fig 1: Identifying Meter/Gauge System Components Location (1 of 5)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

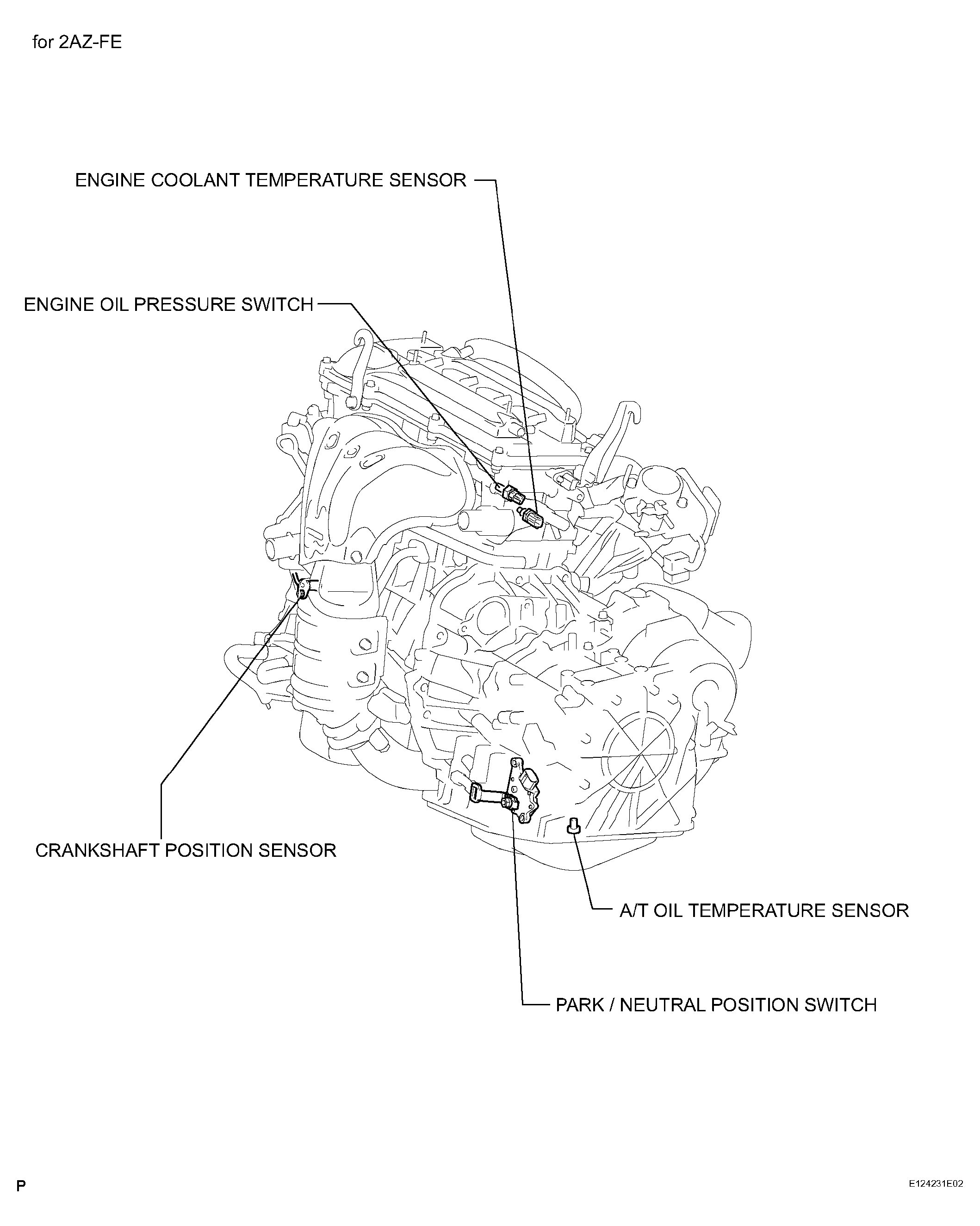

Fig 2: Identifying Meter/Gauge System Components Location (2 of 5)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

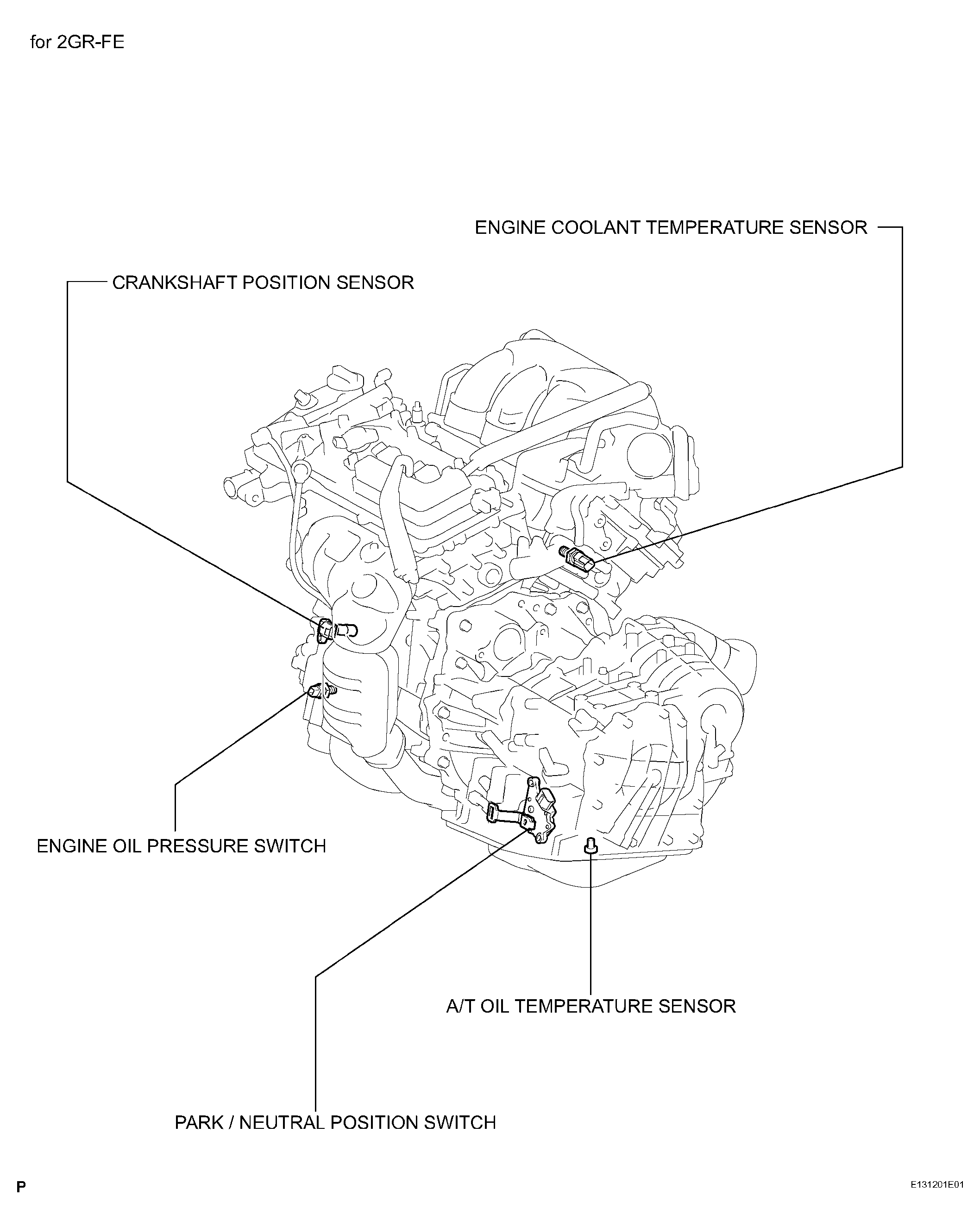

Fig 3: Identifying Meter/Gauge System Components Location (3 of 5)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

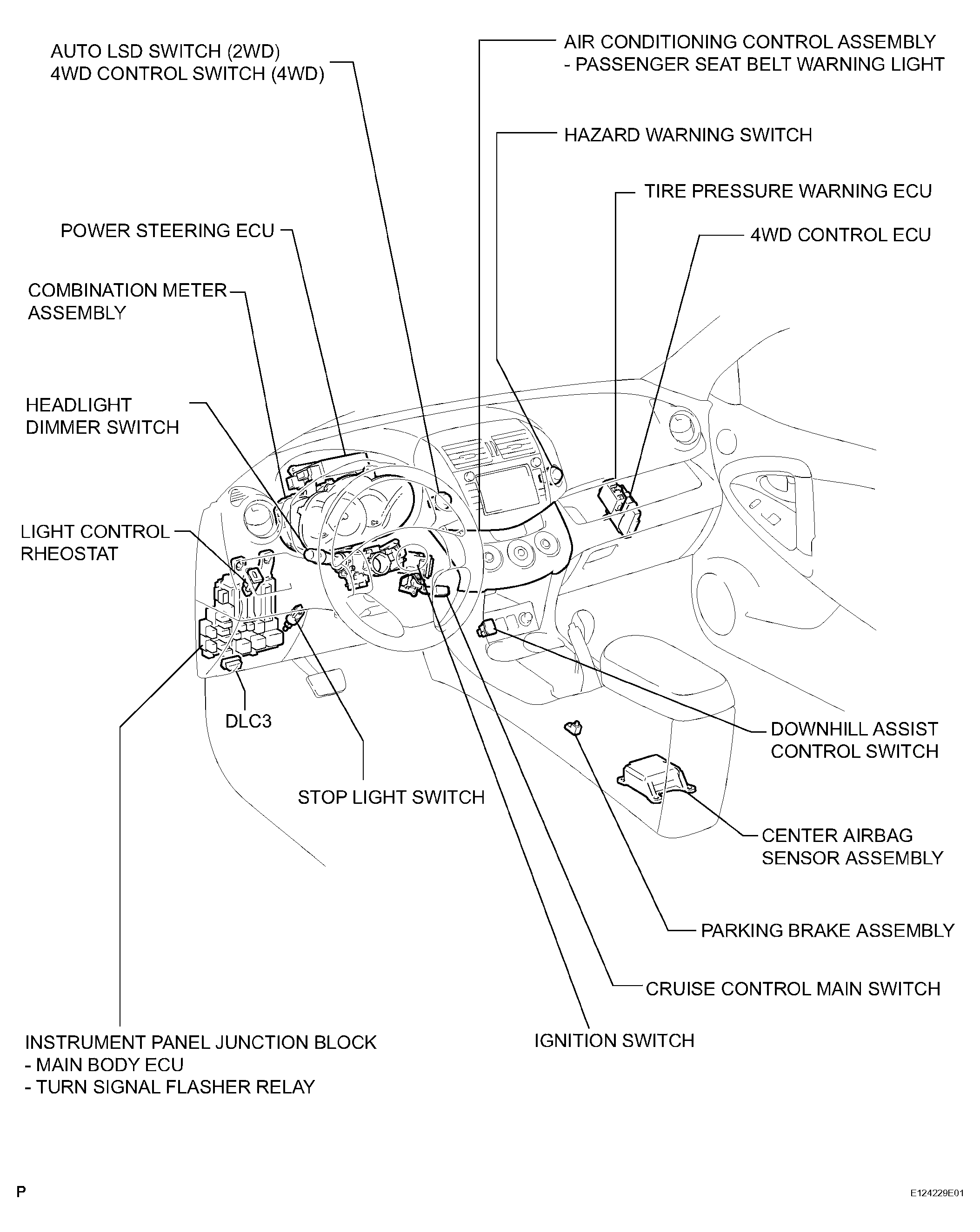

Fig 4: Identifying Meter/Gauge System Components Location (4 of 5)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

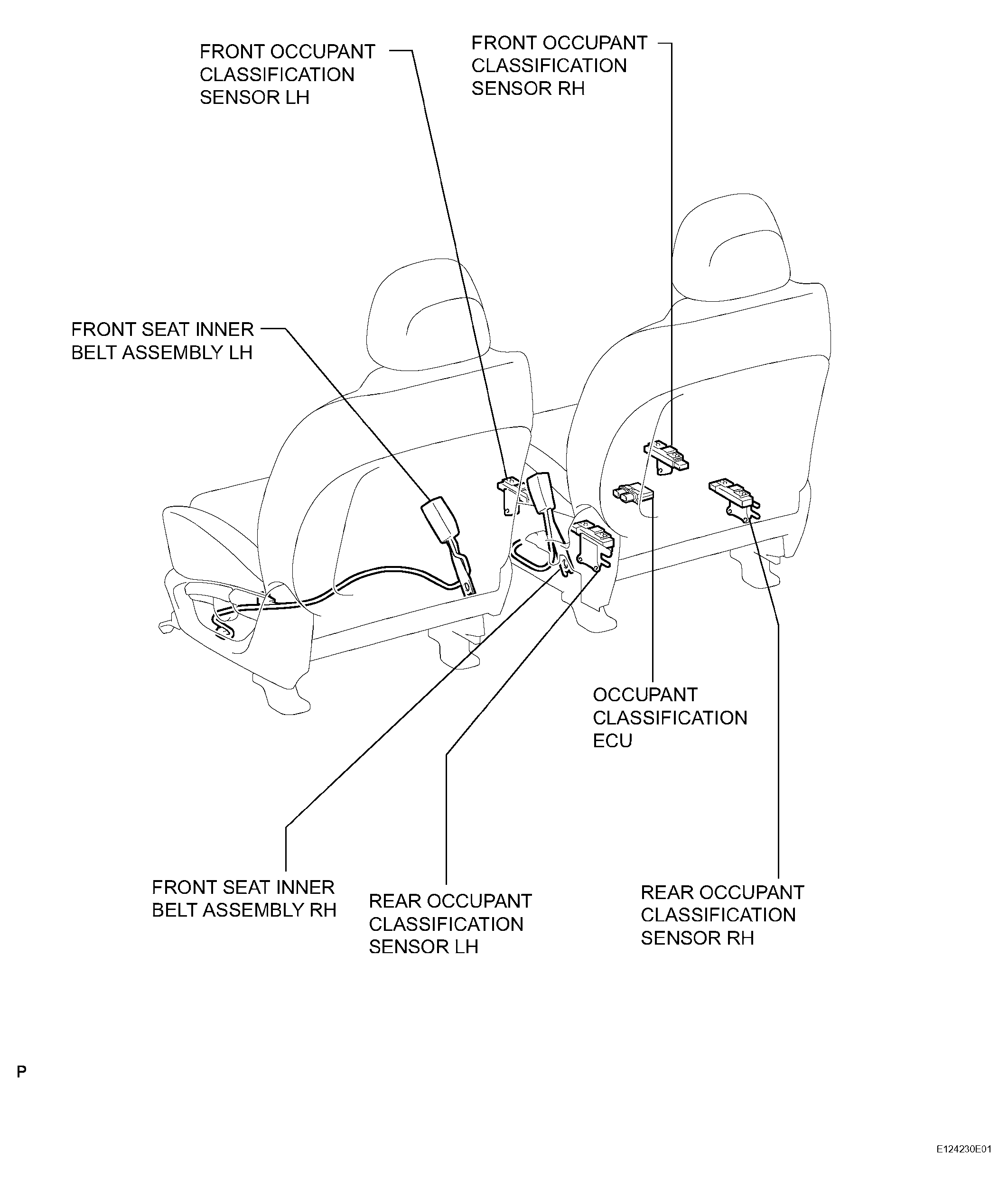

Fig 5: Identifying Meter/Gauge System Components Location (5 of 5)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
