Fuel Receiver Gauge Malfunction: Wiring Diagram

WARNING: This page is about a different car, the 2007 Toyota RAV4. However, it is still accessible from the selected car via links, so may be relevant.

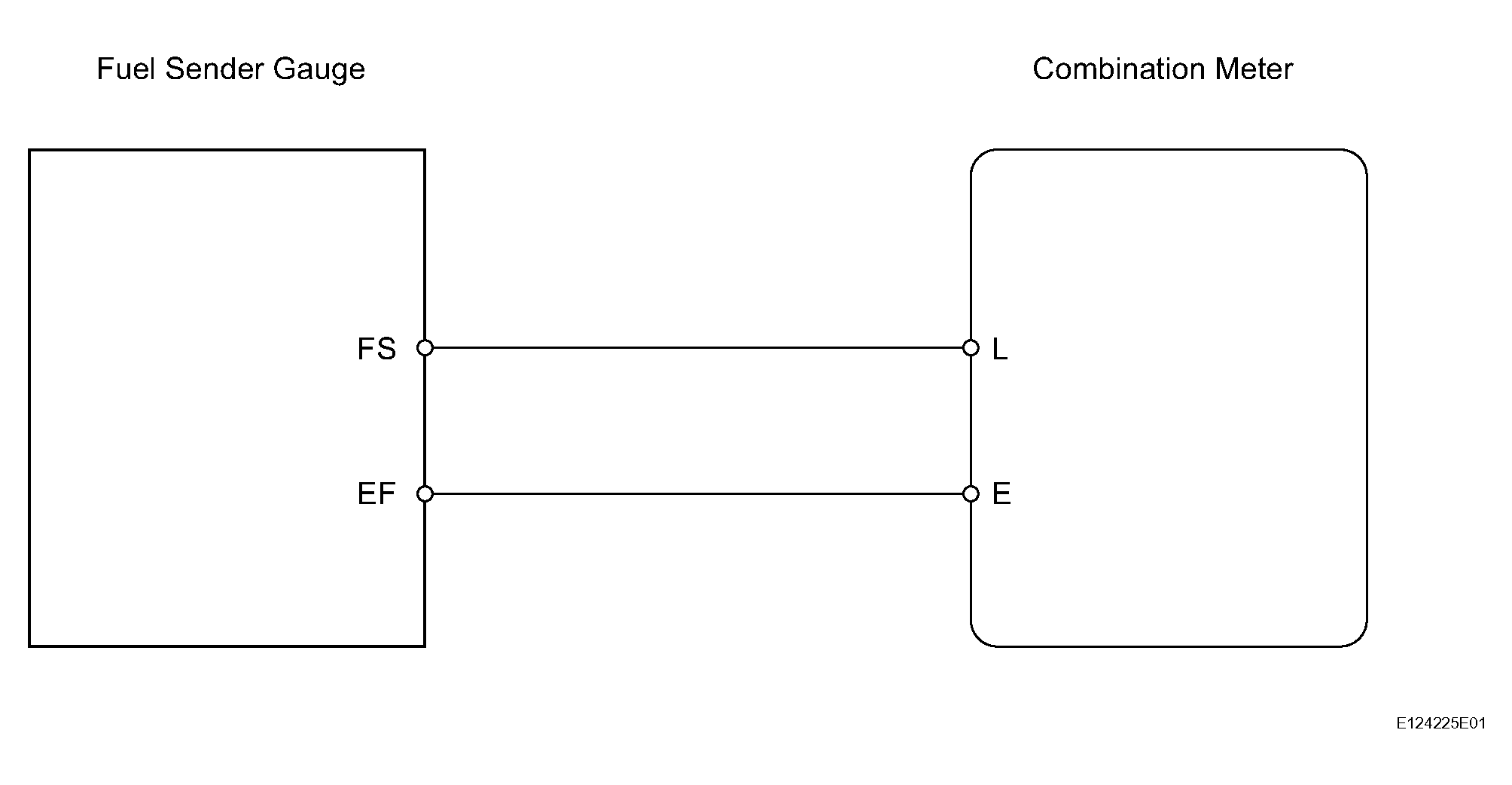

Fig 1: Fuel Sender Gauge And Combination Meter - Wiring Diagram
G04491144Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
